Three Phase Ami Energy Meter Power Meter

Product Description

Model	DTZY566-M	Accuracy class	Active 0.5
Current	5(100)A	Voltage	3220V~3240V
Type	Smart meter	Wiring	3P4W
Installation	Ordinary installation	Brand	XJ

DTZY566-M/SP is a new generation of three phase smart prepayment meter which migrating AMI prepayment functions. This meter is used to measure electrical energy accurately for commercial, industries and residential customers. It has a plug-and-play module for communication in front of the meter cover.DTZY566-M also can connect to CIU (optional) through PLC, Cable or RF to support this purpose.

Highlights:

Optical communication, open protocol: DLMS/COSEM;
A plug-and-play communication module(PLC/RF/ZIGBEE/GPRS)
PLC ,Cable or RF communication with CIU (customer interface unit) for monitor at user's premises;
Internal switch relay for load demand control by configuration or remote communication;
Prepayment and post-payment mode switchable for users' convenience.

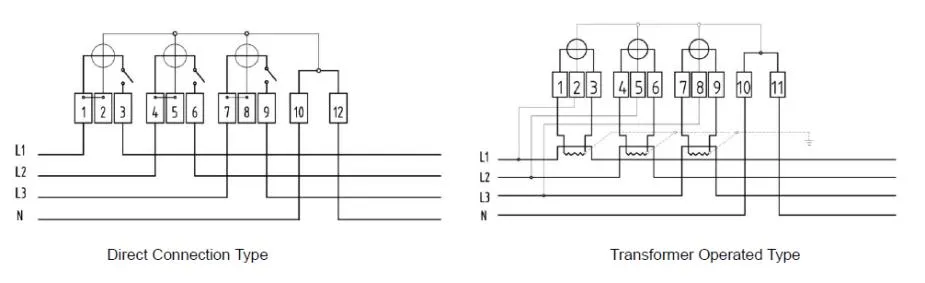

Application		Direct connection
Accuracy	Active:	Class1 (IEC)/Class B (MID)
Nominal voltage	3P 4W	220V, or 230V, or 240V
Current Range	Ib/Iref	5A, 10A
	Imax	60A, 80A, 100A
Starting current	IEC	0.4%Ib
Frequency		50/60Hz
Power consumption	Phase voltage	230V
	Voltage circuit:	≤2W, 5VA
	Current circuit:	<0.2VA
Temperature Range	Operation	-25˚C to +55˚C
	Storage	-40˚C to +70˚C
Humidity Range		Up to 95%
Protection Degree		IP54
EMC	Electrostatic discharge	Contact discharge	8kV
		Air discharge	15kV
	Fast transient burst	4kV
	Surge immunity	6kV
	Electromagnetic RF fields	Frequency range	80kHz to 2000MHz
		With current	10V/m
		Without current	30V/m
	Conducted disturbance	Frequency range	150kHz to 80MHz
		Voltage level	10V
	Radio interference(peak value)	30Mhz~1GHz	<30dB
Insulating Strength	Impulse voltage	6kV 1.2/50µs
	AC voltage	4kV
RTC	Clock accuracy	<0.5s/d
Standards	IEC	IEC 62052-11, IEC 62053-21, IEC62053-23 IEC62055-41, IEC62055-51 IEC62056-46, IEC62056-47 IEC62056-53, IEC62056-61, IEC62056-62
	MID standard	EN54070-1, EN54070-3

Three Phase Ami Energy Meter Power Meter

Productive Capability

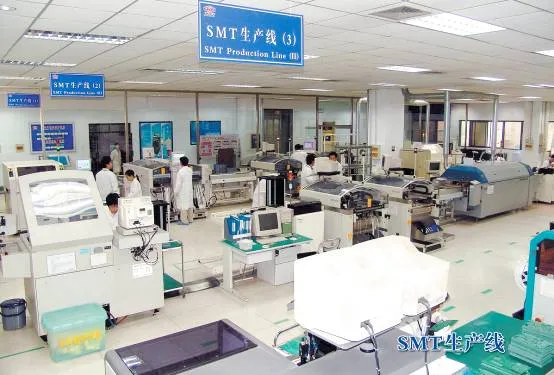

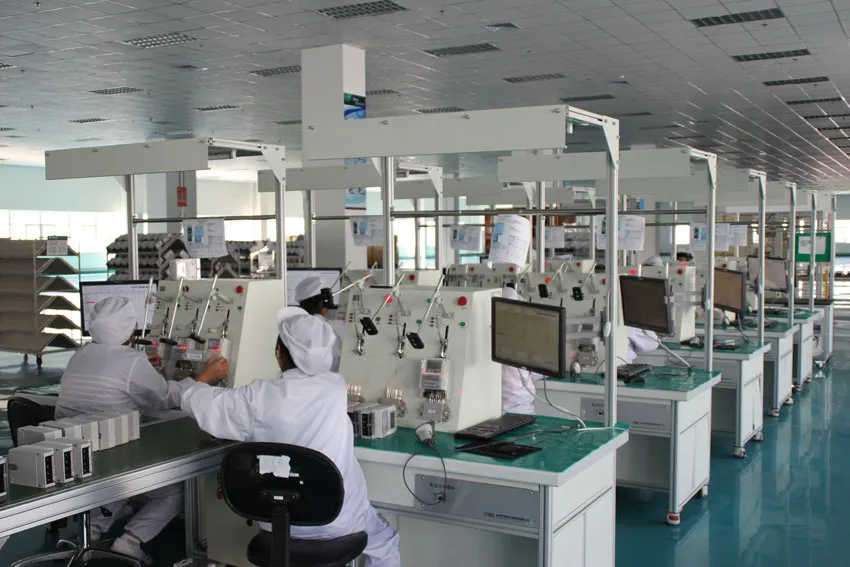

We have own advanced automated production line and test equipment ,at present, we have built five smart single-phase production lines and one smart three-phase production line and are stepping up the construction of one smart terminal production line. We currently have an annual production capacity of 10 million single-phase smart energy meters, 1 million three-phase smart energy meters and 3.4 million acquisition terminals.
