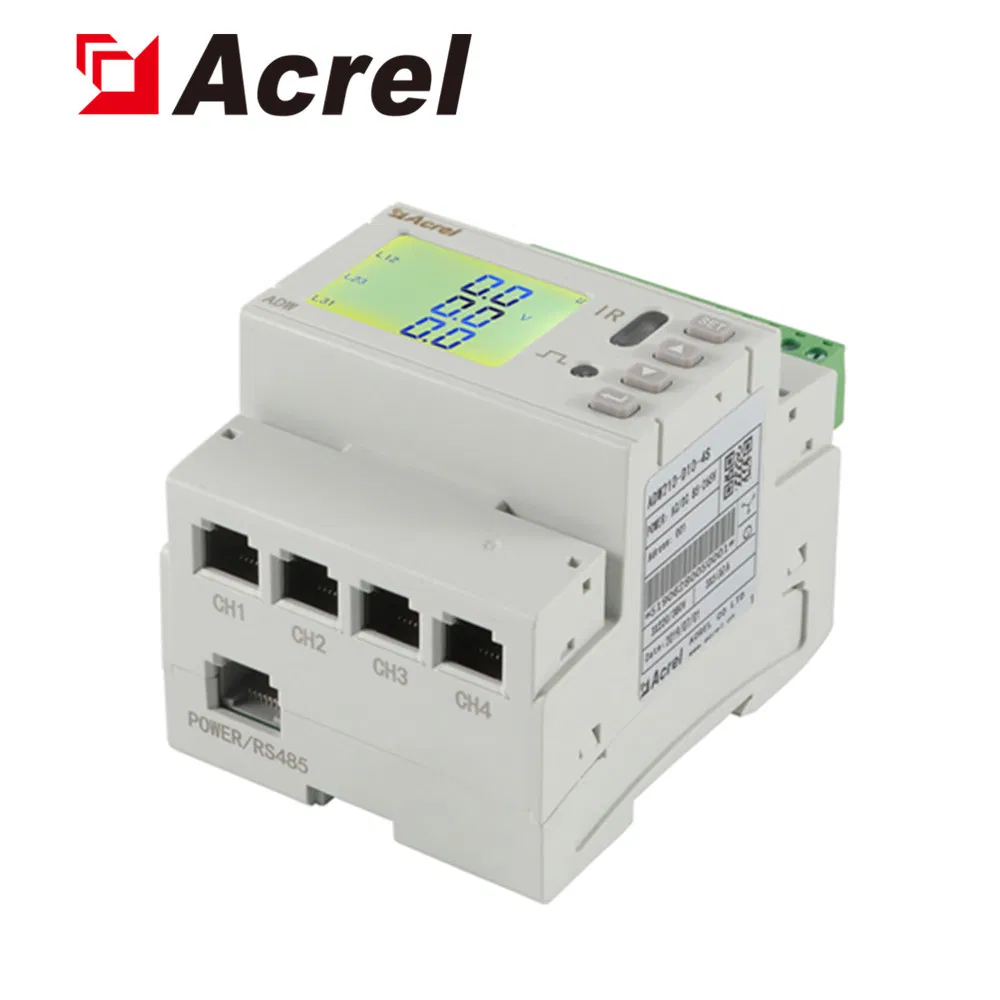

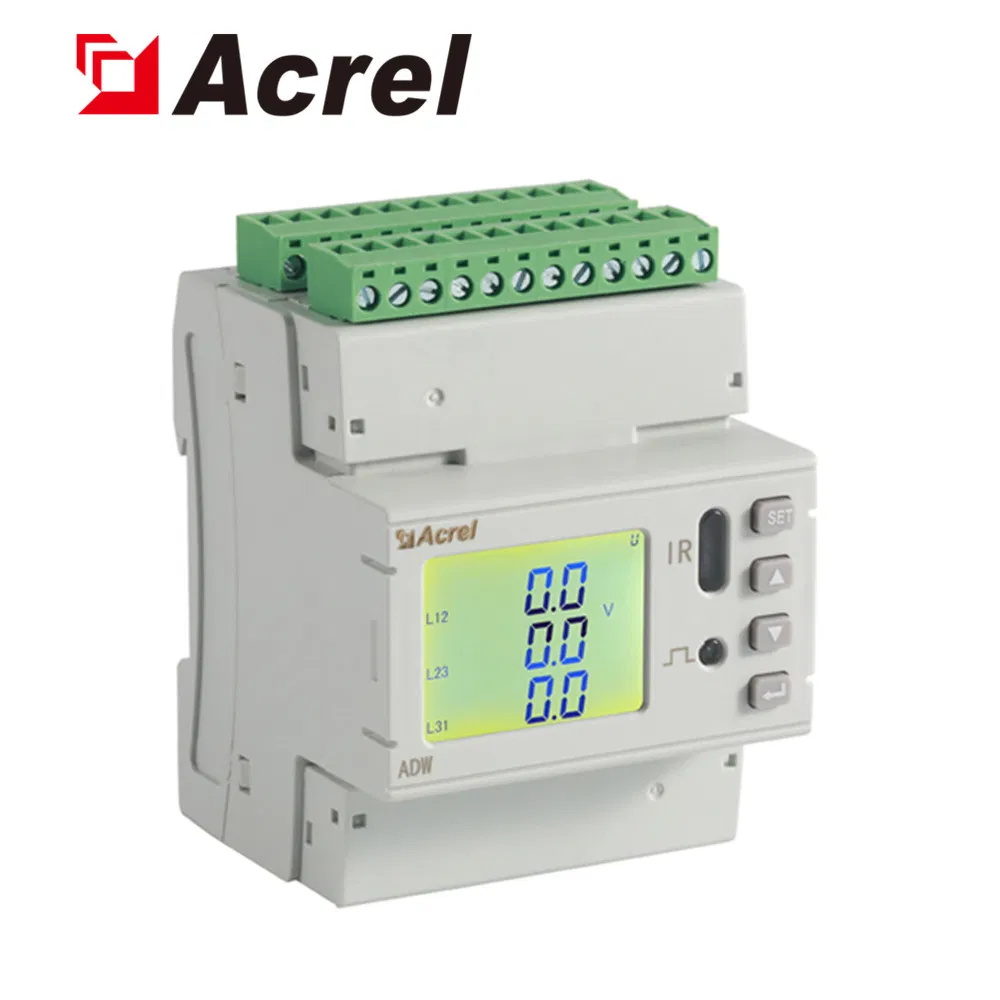

Acrel Multi Loop Three Phase Iot Three Phase LCD Digital Modular Power Analyzer Energy Meter Power Meter Adw210 -D10-1s
Product DescriptionADW210-D10-1S lcd display three phase multi channel smart IOT wireless modular submetering energy meterGeneralADW2XX series rail type multi-loop power meters are mainly used for measuring the full electric parameters of multiple three-phase circuits,Up to four three-phase loop cur......
Send Inquiry
Product Description
Product DescriptionADW210-D10-1S lcd display three phase multi channel smart IOT wireless modular submetering energy meter
ADW2XX series rail type multi-loop power meters are mainly used for measuring the full electric parameters of multiple three-phase circuits,Up to four three-phase loop current inputs can be connected simultaneously.It Can measure voltage and current, power, power factor, phase angle, unbalance, harmonic and other parameters.
Function
Technical Parameters(Meter)
Technical Parameters(Module)
Other Parameters
Dimension(Unit:mm)
ADW2xx series main part dimension
Module dimension
Dimension(CT)
Installation

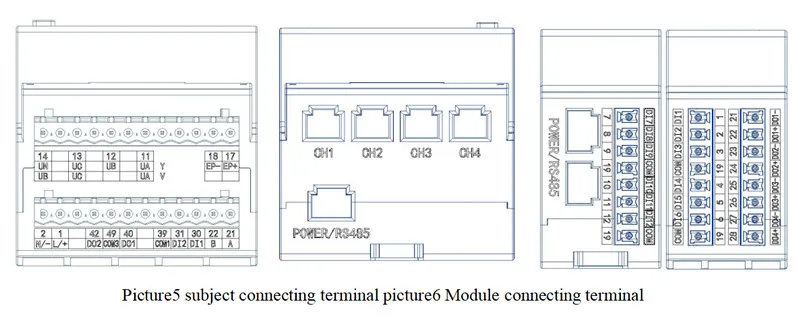

Wiring
Quotation
ADW210-D10-1S lcd display three phase multi channel smart IOT wireless modular submetering energy meter
General
ADW2XX series rail type multi-loop power meters are mainly used for measuring the full electric parameters of multiple three-phase circuits,Up to four three-phase loop current inputs can be connected simultaneously.It Can measure voltage and current, power, power factor, phase angle, unbalance, harmonic and other parameters.Function
1.Full electric parameter measurement of N(1,2,3,4) three-phase circuit,externalCurrent transformer;
2.Monitoring three Phase Voltage/Current,Zero sequence Current,Frequency;
3.Monitoring three Phase power ,total power (active,reactive,apparent);
4.Monitoring three Phase power-factor,totalpower-factor;
5.Monitoring Voltage/Current Phase Angle,Voltage/Current Degree of unbalance;
6.Monitoring Voltage,Current total Harmonic and 2-31 Fractional harmonics;
7.Record of voltage,current and power extremum of current month and last month;
8.Maximum Current,Maximum power demand and real time Current,real time power demand;
9.200 event records,Record the action of DIDO;
10.Support over-voltage, over-current, phase failure,DI linkage and other alarm output;
11.4 time zones 14Periods rate setting;
12.Four quadrant electric energy,12-month multi rate electric energy;
13.31 days four quadrant and multi rate electric energy freezing,Positive and negative energy metering;
14.2 channel Switching inputs,2 channel Switching outputs,RS485,Active pulse output(Switchable corresponding circuit).
The following auxiliary functions can be extended through its RJ45 interface:
7.Record of voltage,current and power extremum of current month and last month;
8.Maximum Current,Maximum power demand and real time Current,real time power demand;
9.200 event records,Record the action of DIDO;
10.Support over-voltage, over-current, phase failure,DI linkage and other alarm output;
11.4 time zones 14Periods rate setting;
12.Four quadrant electric energy,12-month multi rate electric energy;
13.31 days four quadrant and multi rate electric energy freezing,Positive and negative energy metering;
14.2 channel Switching inputs,2 channel Switching outputs,RS485,Active pulse output(Switchable corresponding circuit).
The following auxiliary functions can be extended through its RJ45 interface:
15.(MK) 12 channel Switching inputs+4 channel Switching outputs;
16.(MTL) 12 channel external NTC temperature +4 channel residual current measurement (leakage current);
17.(AWT100-2G) 2G Wireless Communication
18.(AWT100-4G) 4G Wireless Communication
19.(AWT100-NB) NB-IoT Wireless Communication
20.(AWT100-LoRa) LoRa Wireless Communication
21(AWT100-LW) LoRaWAN Wireless Communication
21(AWT100-LW) LoRaWAN Wireless Communication
Technical Parameters(Meter)
| Auxiliary power | AC/DC 85~265V;consumption≤10VA; | |
input | Frequency | 45~65Hz; |
Voltage | AC 3×220V/380V; | |
| Overload: 1.2 times of rated value (continuous); 2 times of rated value / 1s; | ||
| Power consumption:≤ 0.5VA; | ||
Current | AC 5A,100A,400A,600A;(External opening transformer) | |
| Overload: 1.2 times of rated value (continuous); 10 times of rated value / 1s; | ||
| Power consumption:≤ 0.5VA; | ||
| measurement accuracy | Frequency 0.05Hz, voltage and current 0.5 level, active electric energy level 1, reactive electric energy level 2; | |
| 2-31 times harmonic accuracy: ± 1%; | |||
Features | Pulse output | Output mode: optocoupler pulse with open collector; | |
| Communication | RS485,Modbus-RTU;Baud rate 1200~38400; | ||
| Switchin g | input | Dry contact input,Built in power supply; | |
| output | Output mode:Relay normally open contact output; contact rating:AC 250V/3A DC 30V/3A; | ||
Technical Parameters(Module)
Switching Module | Power | RJ45 interface,DC 12V,Power consumption≤1W; |
| Communication | RJ45 interface,Modbus-RTU;(Communication with the main Part) | |
| Switching input | Dry contact input,Built in power supply; | |
| Switching output | Output mode:Relay normally open contact output; contact rating:AC 250V/3A DC 30V/3A; | |
Temperature and leakage module | Power | RJ45 interface,DC 12V,Power consumption≤1W |
| Communication | RJ45 interface,Modbus-RTU;(Communication with the main Part) | |
| temperature measurement | -20~100ºC; | |
| Leakage measurement | 10~3000mA; | |
| measurement accuracy | temperature ±2ºC,Leakage1.0%; |
Other Parameters
Safety | Power frequency withstand voltage | >AC 2kV/1min; |
| Insulation resistance | >100MΩ; | |
Environment | working temperature:-20ºC~+60ºC; Storage temperature:-40ºC~+70ºC; relative humidity:≤95% No condensation; Altitude:≤2500m; | |
| electromagnetic compatibility | Better than grade 3; | |
Dimension(Unit:mm)

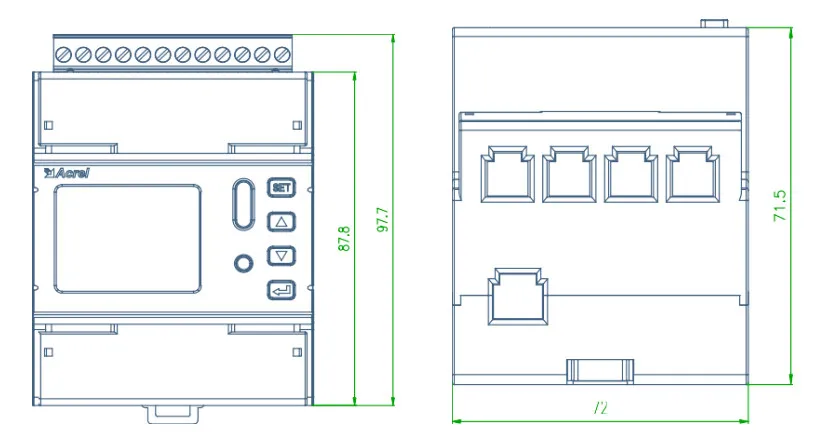

ADW2xx series main part dimension

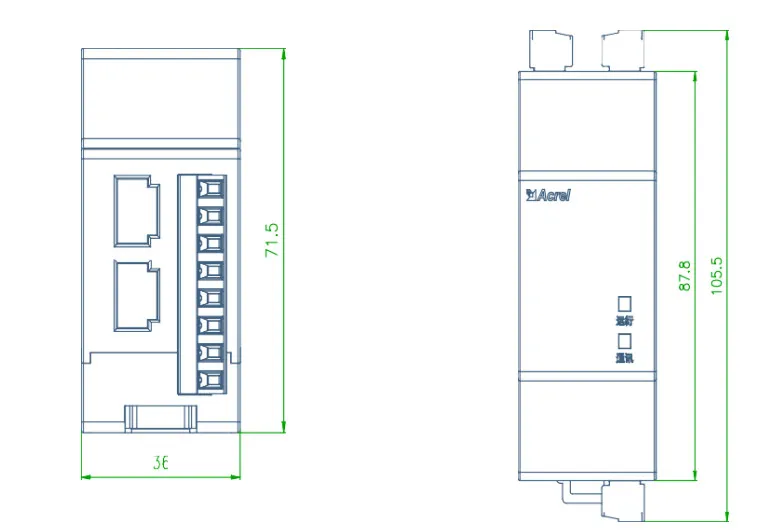

Module dimension
Dimension(CT)

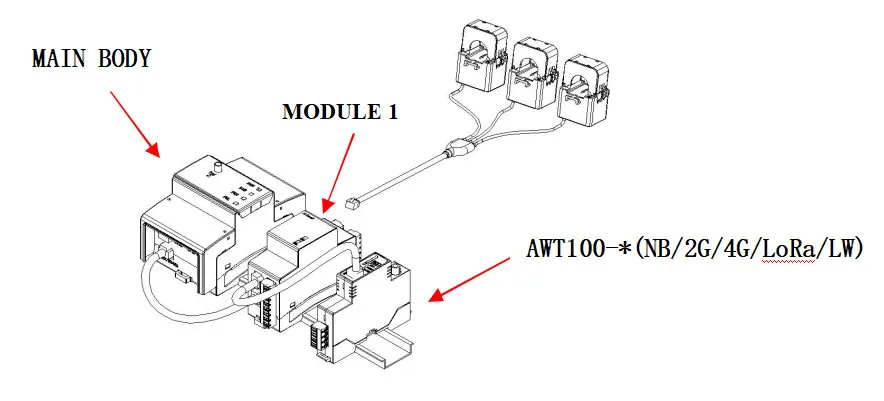

Installation

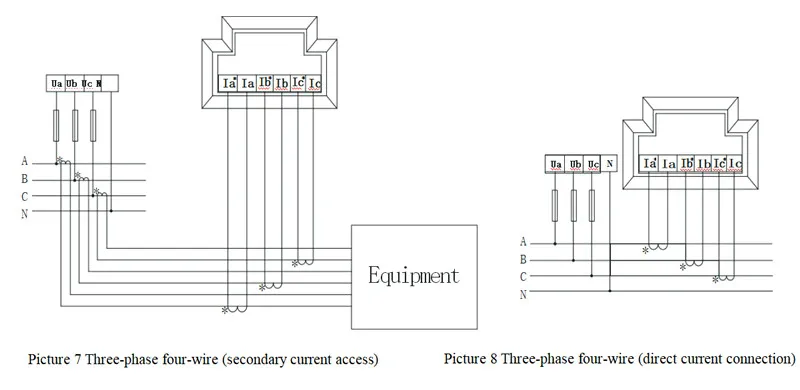

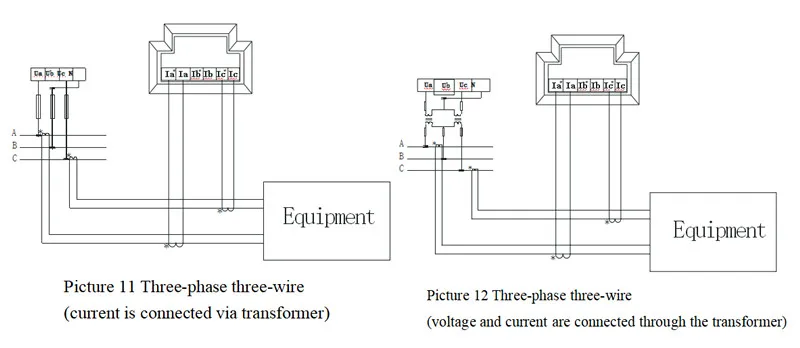

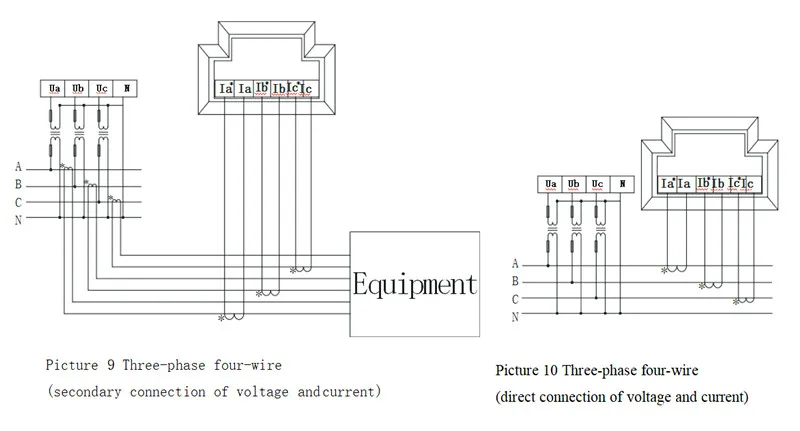

Wiring

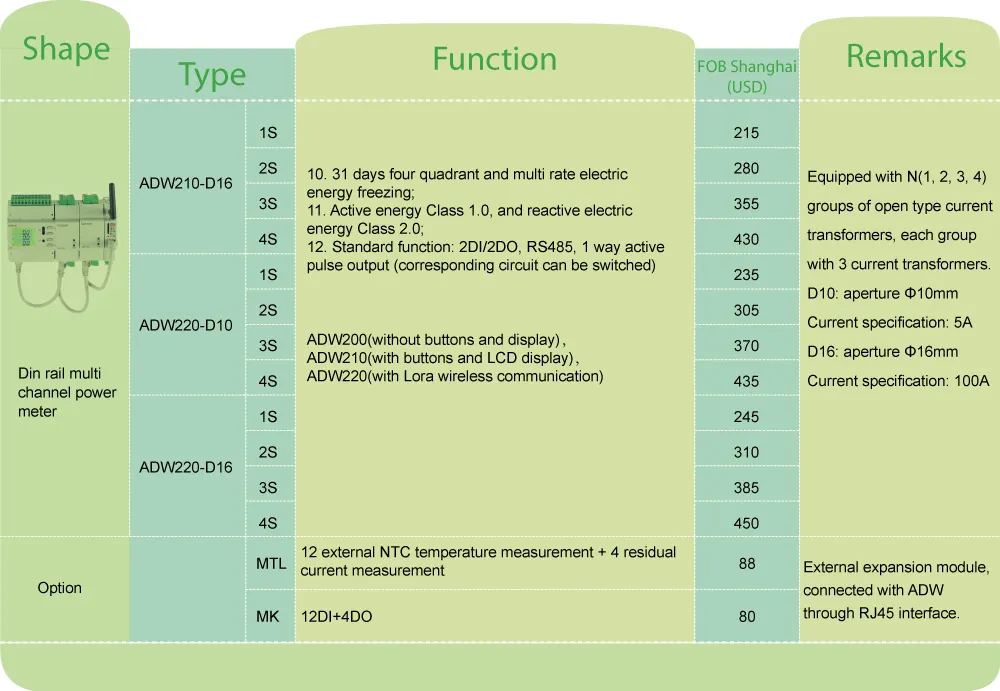

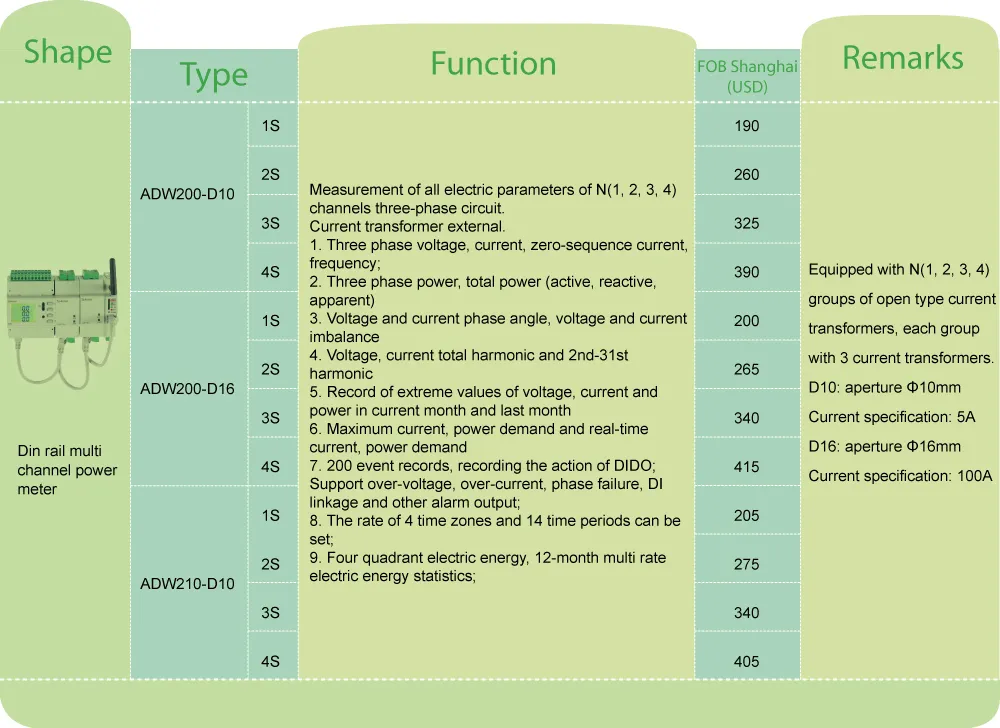

Quotation
