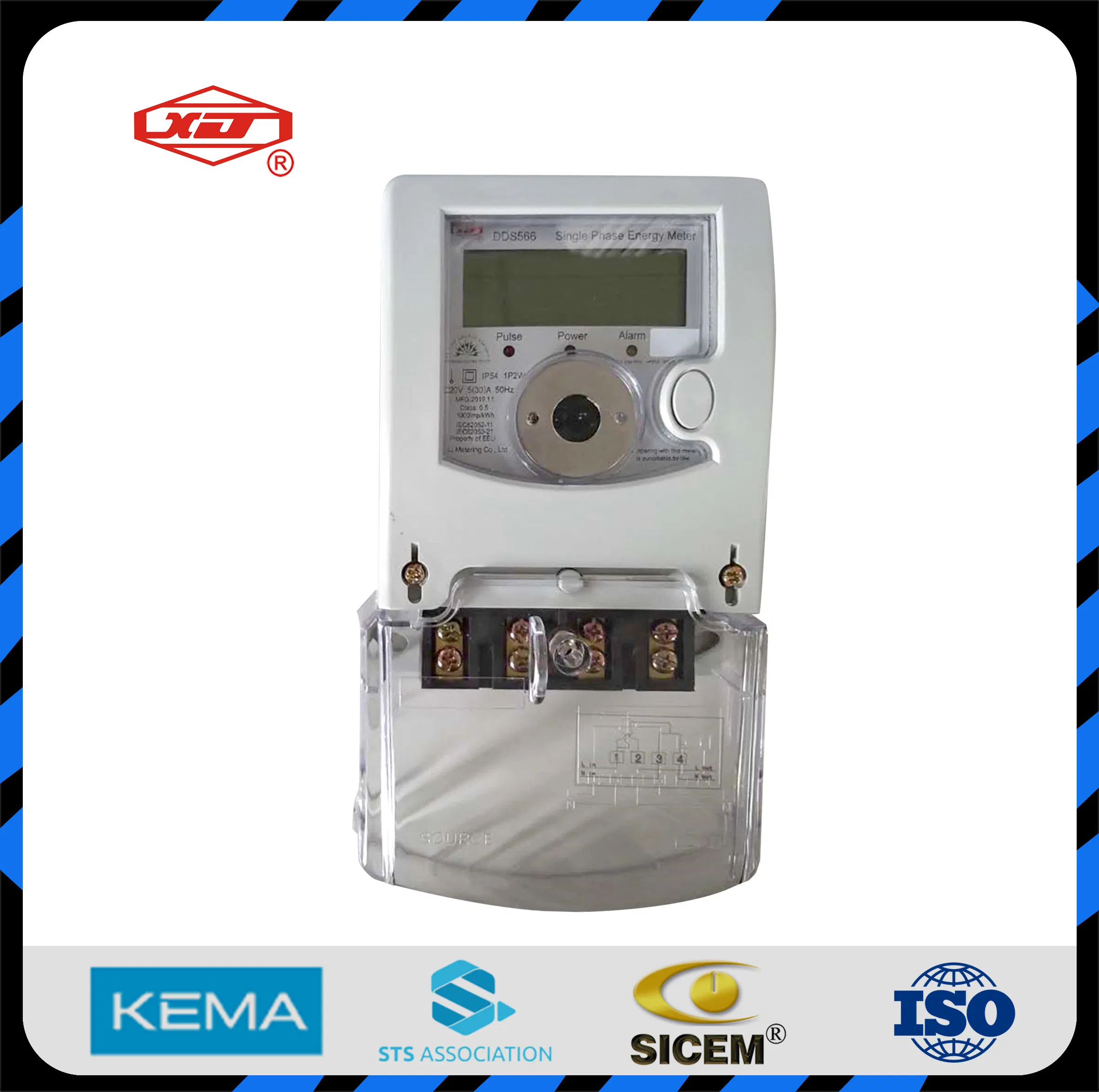

China Dds566 Single Phase Energy Meter Smart Meter

Product Description

Product description

Single phase electric energy meter DDS566 has the function of measurement, monitor, alarm, display. It can real-time measure and display voltage, current, power factor and other meter parameter. It can detect and indicate electric larceny, power reversal and other events. Electric energy meters use digital media as information exchange medium, resident users who has installed energy meter pay electric fees to electric power companies according to bills of settlement.
The meter is designed completely according to the following standard:

62052-11<AC measuring equipment-general requirement, testing and testing condition Part 11:measuring equipment>
62053-22 Part 22<static active energy meter (class 0.2S and class 0.5S) >
62053-23 Part 23<static reactive energy meter (class 2 and class 3) >

Model	DDS566	Accuracy class	Active 0.5
Current	5(30)A	Voltage	220V

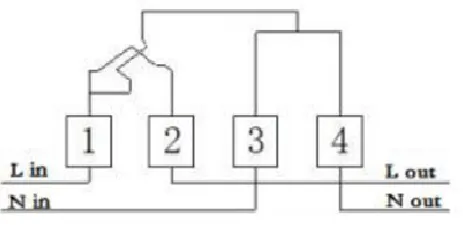

Type	Electronic	Wiring	1P2W
Installation	Ordinary installation	Brand	XJ

Application		Direct connection
Accuracy	Active	Class 0.5
Nominal voltage	1P2W	220V
Operating voltage range	Umin~Umax	0.8Un~1.2Un
Current range	Ib~Imax	5(30)A
Starting current	IEC	0.4%Ib
Frequency		50 Hz
Pulse constant		1600 imp/kWh
Power consumption	Voltage circuit	≤2W and 10VA
Power consumption	Current circuit	≤2VA
Temperature range	Operation	-25°C ~+55°C
Temperature range	Storage	-40°C ~+70°C
Humidity		Up to 85%
Protection		IP54
EMC	Electrostatic discharge	Contact discharge 8kV Air discharge 15kV
	Fast transient burst	4kV
	Surge immunity	4kV
	Electromagnetic RF fields	Frequency range 80kHz~2000MHz With current 10V/m Without current 30V/m
	Conducted disturbance	Frequency range 150kHz ~80MHz Voltage level 10V
Insulating strength	Impulse voltage	6kV 1.2/50us
Insulating strength	AC voltage	4kV 1min
Weight		Less than 0.6kg

Dds566 Single Phase Energy Meter Smart Meter

Productive Capability

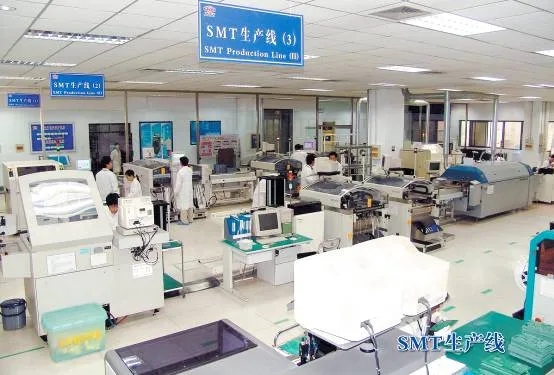

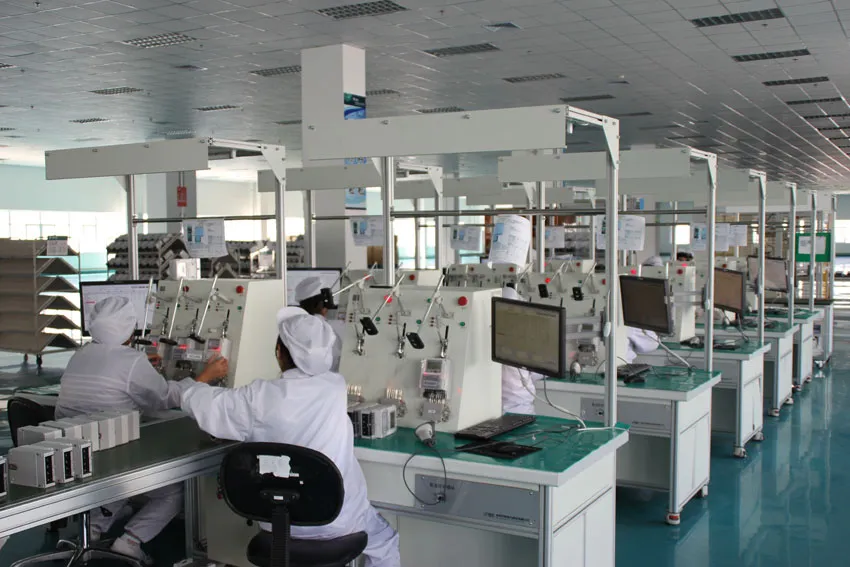

We have own advanced automated production line and test equipment ,at present, we have built five smart single-phase production lines and one smart three-phase production line and are stepping up the construction of one smart terminal production line. We currently have an annual production capacity of 10 million single-phase smart energy meters, 1 million three-phase smart energy meters and 3.4 million acquisition terminals.
