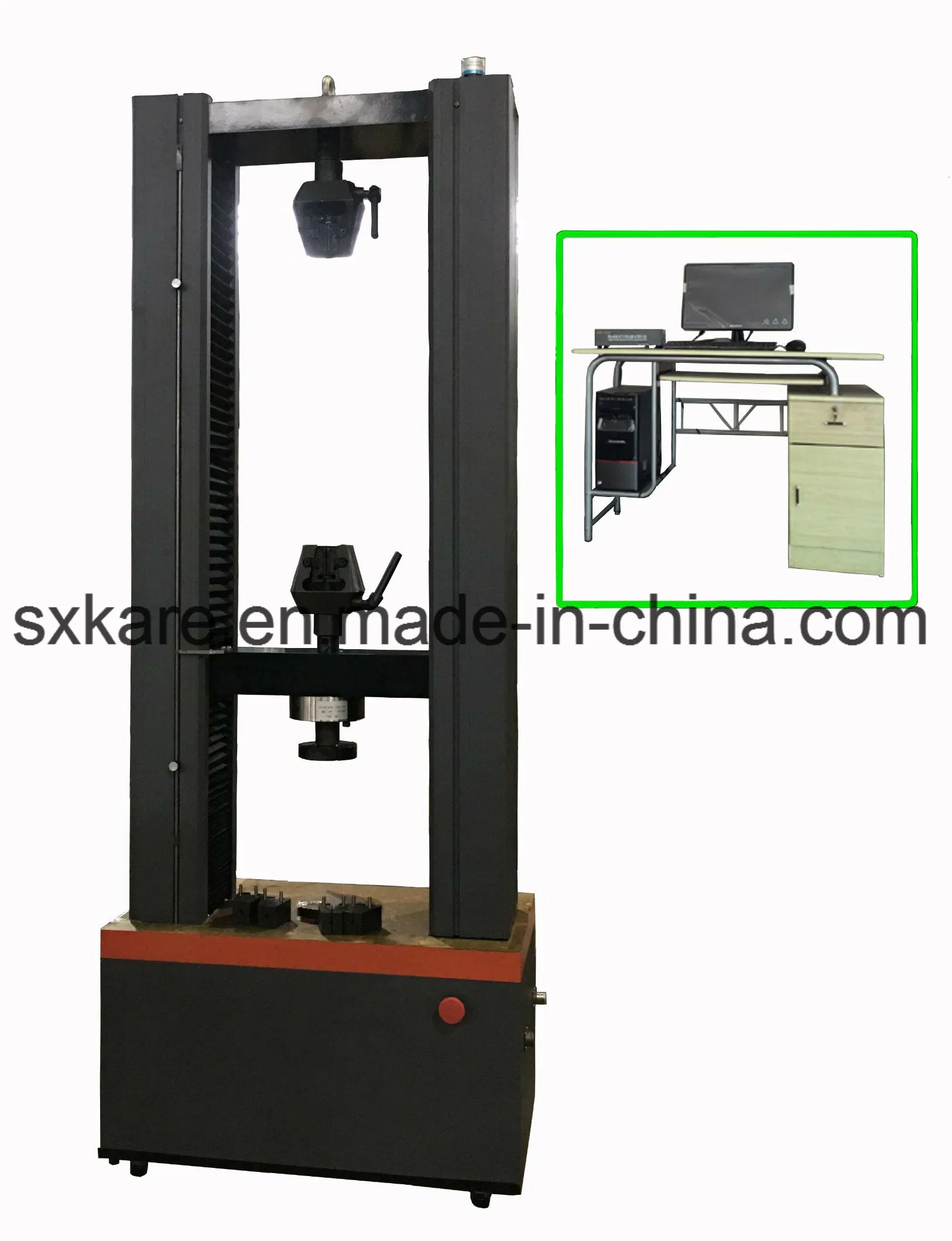

Servo Electronic Universal Testing Machine (CXWDW-10)
1. UsageCXWDW-10 servo electronic universal testing machine, tensile testing machine, UTM can do the test of crankle, pure torsion, stop log bending and press stable by fitting multi-functional material dynamics experimentally teaching facility; It can do the test of tensile, gripping, tearing, burs......
Send Inquiry
Product Description
1. Usage
CXWDW-10 servo electronic universal testing machine, tensile testing machine, UTM can do the test of crankle, pure torsion, stop log bending and press stable by fitting multi-functional material dynamics experimentally teaching facility; It can do the test of tensile, gripping, tearing, burst, pierce to the geotechnical composite material; Tensile, compression, torsion test of biomechanics; Labor security supplies security test; Mechanical property test to material of wood and hard board.
2. Test speed
(1) Adjusting range: 0.005~500mm/min (stepless adjustment)
(2) Accuracy: ± 0.5%
(3) Control range even test force speed rate and even deformation rate: 0.01%-10%F. S.
(4) Control error even test force speed rate and even deformation rate: ± 0.5%
(5) Control range of invariable test force and invariable deferment: 0.5%~100%F. S.
(6) Control error of invariable test force and invariable deferment: ± 1% of setting point when less than 10%F. S.; ± 0.1% of setting point when high than 10%F. S.
3. Displacement
(1) Measuring range: 0~999mm
(2) Resolution: 0.001mm
(3) Measuring relative error: ± 0.5%
4. Deformation
(1) Gauge length: 50mm (according to the requirement of customer)
(2) Output range: 0-5mm (according to the requirement of customer)
(3) Valid measuring range: 0.2%~100%F. S.
(4) Resolution: 1/60000, 1/120000, 1/240000 (self setting according to the test requirement)
(5) Measuring relative error: ± 0.5%
5. Security protection

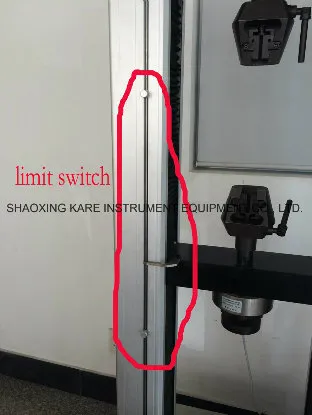

Position limiter; Emergency switch; The control system can protect automatically once over-load, over-currency, over-voltage, over-temperature
6. Charateristics
Main body

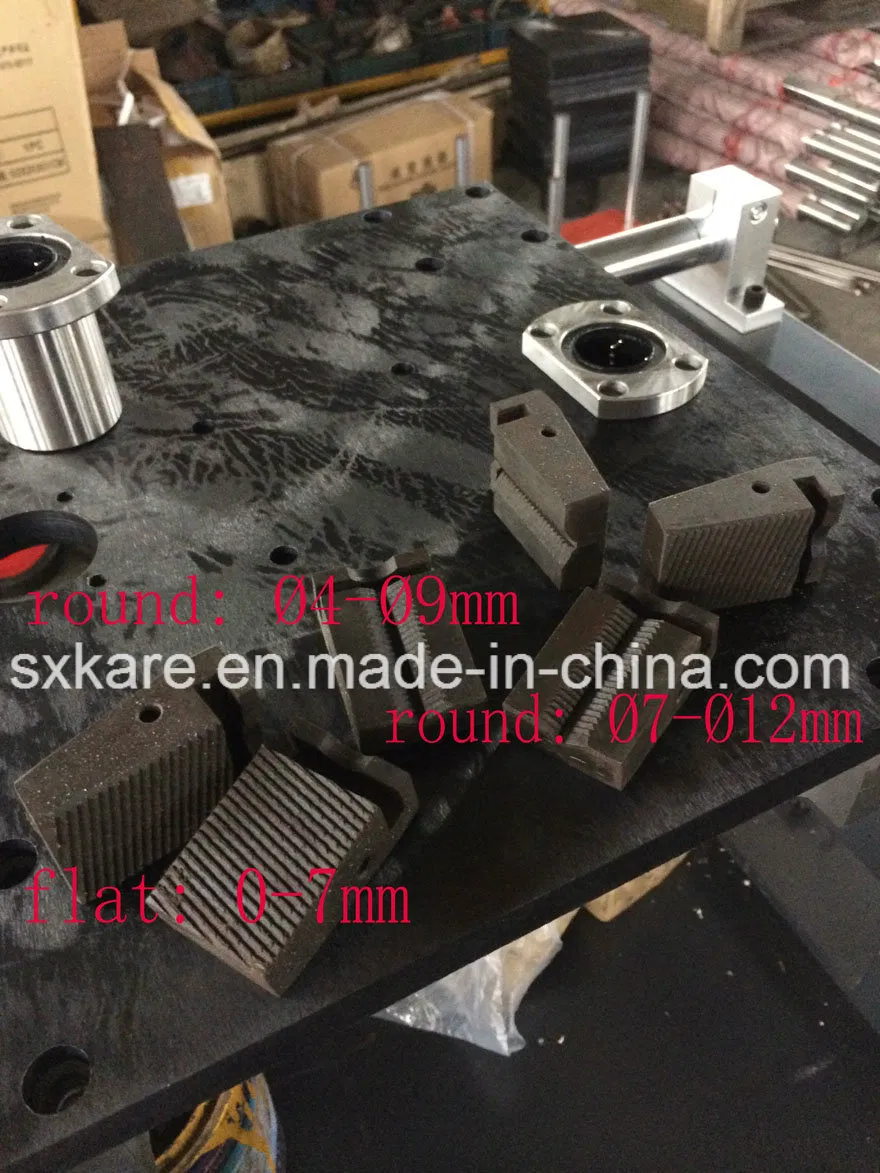

(1) Door type stress frame, high axial rigidity
(2) Adopt arc synchronous pulley and ball screw (Germany), guarantee the precision of test force and deformation speed.

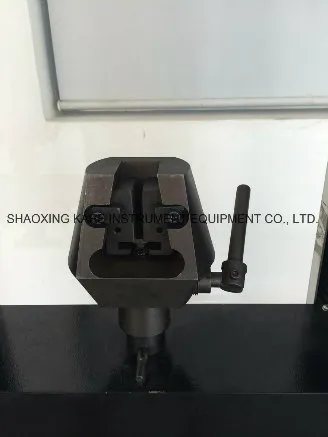

(3) Adopt double space structure, upper for tensile test, lower for compression and bending test
(4) Stable transmission, quick respond and low noise (lower than 60dB(A))
(5) Adopt fully digital AC servo motor and driver, with wide speed adjust range, high precision.

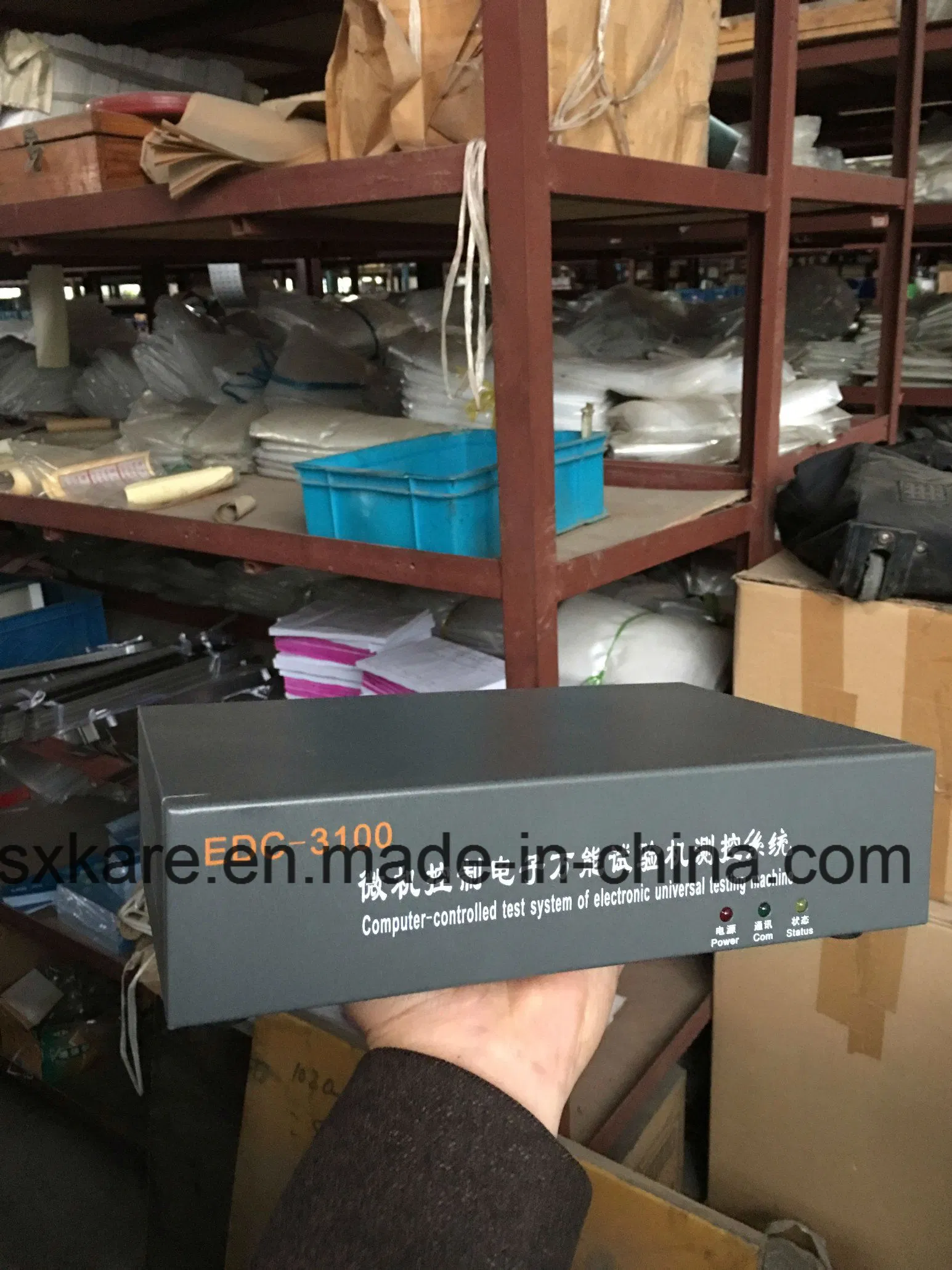

Measuring control system
(1) Peculiar double control system, with wide LCD. The measuring control system can be operated separated with the computer or together with it.

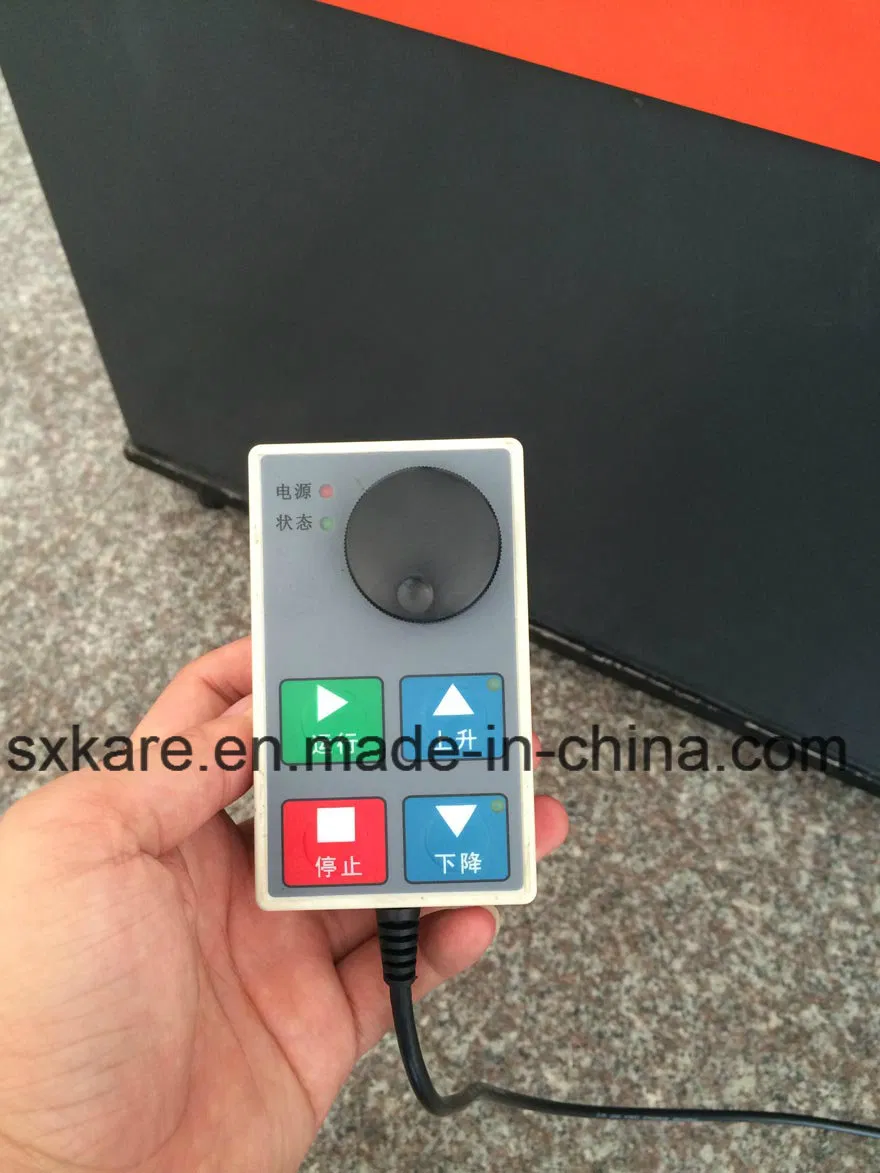

(2) Movable control cabinet, easy for move the cross beam; It is with the control function of fast/low, stepping.
(3) High resolution of test force and test deformation, stepless regulation, full scale constant, user can set it himself according to test request.
(4) Sensor channel wide to 4.5Hz
(5) Measuring sensor adopts the products of American CELTRON, with high precision and long time stability.
(6) Open type data connector, it can realize closed-loop control of loading, deformation and speed, control the constant loading, constant deformation, constant displacement, oven stress speed, oven stain rate, constant speed.
(7) Has the security function of over load, over stroke, over pressure, over flow and over heating.
Computer system and software package
(1) All the operating controlled by the computer
(2) User can select get the information by select different test program, setting the test program, curve type, unit, precision, display information before test.
(3) Get the force and deformation value on the curve with mouse.
(4) You can select all the curves and change during the test.
(5) You can acquire the data real-time, make the curve, enlarge and reduce the curve locally and print it.
(6) You can superposition and compare the curves of same group.
(7) You can save and read the test result at any time, re-analysis the curve including re-calculate and re-appear.
(8) It is easy for user to output the original data and result to EXCEL and print the report.
(9) It can set the control parameters itself and run automatically.
CXWDW-10 servo electronic universal testing machine, tensile testing machine, UTM can do the test of crankle, pure torsion, stop log bending and press stable by fitting multi-functional material dynamics experimentally teaching facility; It can do the test of tensile, gripping, tearing, burst, pierce to the geotechnical composite material; Tensile, compression, torsion test of biomechanics; Labor security supplies security test; Mechanical property test to material of wood and hard board.
2. Test speed
(1) Adjusting range: 0.005~500mm/min (stepless adjustment)
(2) Accuracy: ± 0.5%
(3) Control range even test force speed rate and even deformation rate: 0.01%-10%F. S.
(4) Control error even test force speed rate and even deformation rate: ± 0.5%
(5) Control range of invariable test force and invariable deferment: 0.5%~100%F. S.
(6) Control error of invariable test force and invariable deferment: ± 1% of setting point when less than 10%F. S.; ± 0.1% of setting point when high than 10%F. S.
3. Displacement
(1) Measuring range: 0~999mm
(2) Resolution: 0.001mm
(3) Measuring relative error: ± 0.5%
4. Deformation
(1) Gauge length: 50mm (according to the requirement of customer)
(2) Output range: 0-5mm (according to the requirement of customer)
(3) Valid measuring range: 0.2%~100%F. S.
(4) Resolution: 1/60000, 1/120000, 1/240000 (self setting according to the test requirement)
(5) Measuring relative error: ± 0.5%
5. Security protection
Position limiter; Emergency switch; The control system can protect automatically once over-load, over-currency, over-voltage, over-temperature
6. Charateristics
Main body
(1) Door type stress frame, high axial rigidity
(2) Adopt arc synchronous pulley and ball screw (Germany), guarantee the precision of test force and deformation speed.
(3) Adopt double space structure, upper for tensile test, lower for compression and bending test
(4) Stable transmission, quick respond and low noise (lower than 60dB(A))
(5) Adopt fully digital AC servo motor and driver, with wide speed adjust range, high precision.
Measuring control system
(1) Peculiar double control system, with wide LCD. The measuring control system can be operated separated with the computer or together with it.
(2) Movable control cabinet, easy for move the cross beam; It is with the control function of fast/low, stepping.
(3) High resolution of test force and test deformation, stepless regulation, full scale constant, user can set it himself according to test request.
(4) Sensor channel wide to 4.5Hz
(5) Measuring sensor adopts the products of American CELTRON, with high precision and long time stability.
(6) Open type data connector, it can realize closed-loop control of loading, deformation and speed, control the constant loading, constant deformation, constant displacement, oven stress speed, oven stain rate, constant speed.
(7) Has the security function of over load, over stroke, over pressure, over flow and over heating.
Computer system and software package
(1) All the operating controlled by the computer
(2) User can select get the information by select different test program, setting the test program, curve type, unit, precision, display information before test.
(3) Get the force and deformation value on the curve with mouse.
(4) You can select all the curves and change during the test.
(5) You can acquire the data real-time, make the curve, enlarge and reduce the curve locally and print it.
(6) You can superposition and compare the curves of same group.
(7) You can save and read the test result at any time, re-analysis the curve including re-calculate and re-appear.
(8) It is easy for user to output the original data and result to EXCEL and print the report.
(9) It can set the control parameters itself and run automatically.
| Max. tensile force | 10KN |
| Measuring relative error (no higher than) | ±1% |
| Displacement relative error | ±1% |
| Deformation relative error | ±1% |
| Measuring range | 1%-100% full scale stepless regulation |
| Displacement speed | 0.05-500mm/min stepless speed regulation |
| Effective test stroke | 0-730mm |
| Effective test width | 360mm |
| Resolution ratio | 1/300000 |
| Controlled manner | force, displacement, be out of shape three closed-loop control |
| Voltage | 220V 50Hz |
| Main frame dimension | 360×380×1650mm |
| Weight | 200Kg |
