Burst Test Equipment Transient Electromagnetic Simulator with Calibration Kit
Electrical Fast Transient EFT Burst Generator Per IEC EN 61000-4-4Product InformationSwitching the transient process (to cut off inductive load, relay contact bounce, etc) usually interferes with other electrical and electronic equipment in the same circuit. This type of interference is characterize......
Send Inquiry
Product Description
Electrical Fast Transient EFT Burst Generator Per IEC EN 61000-4-4
Product Information
Switching the transient process (to cut off inductive load, relay contact bounce, etc) usually interferes with other electrical and electronic equipment in the same circuit. This type of interference is characterized by high amplitude, short rise time, high repetition rate and low energy. Pulse generators are used for evaluating the performance of electrical and electronic equipment power supply port, signal, control and grounding ports when subjected to electrical fast transient burst interference.

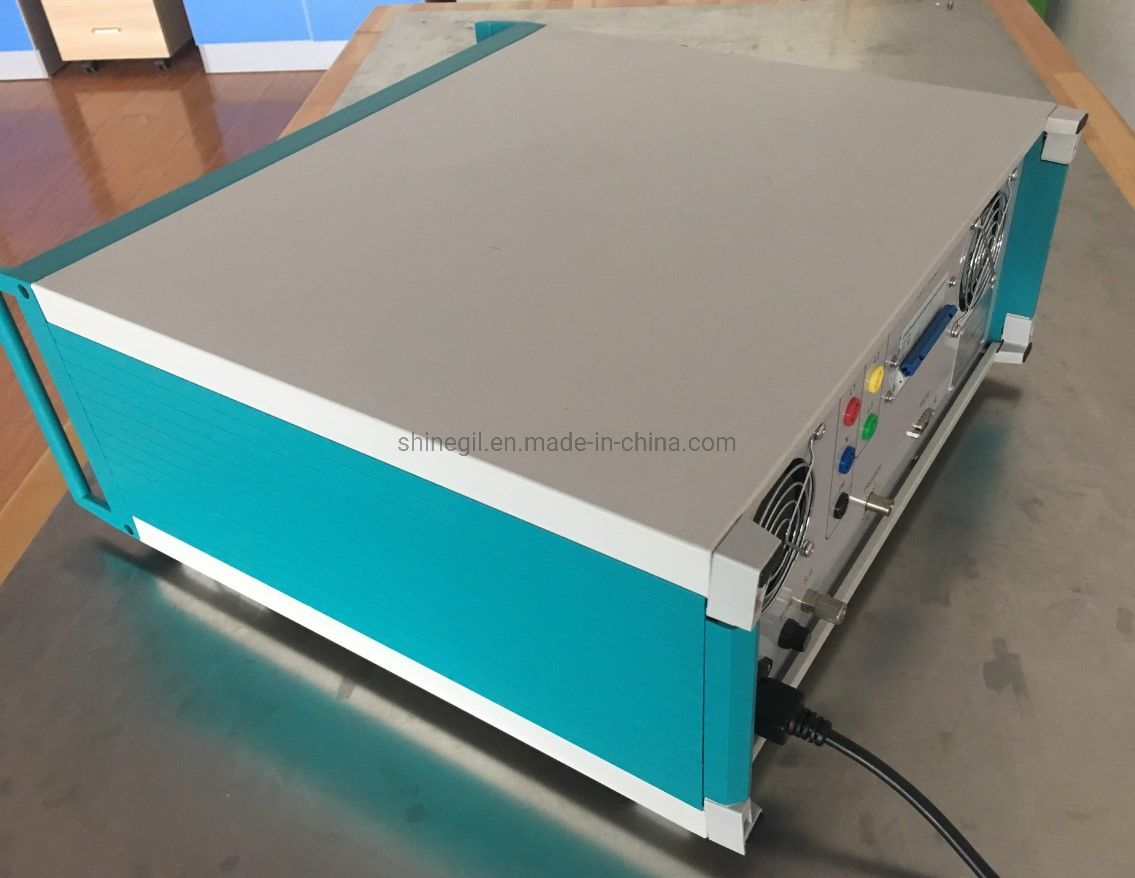

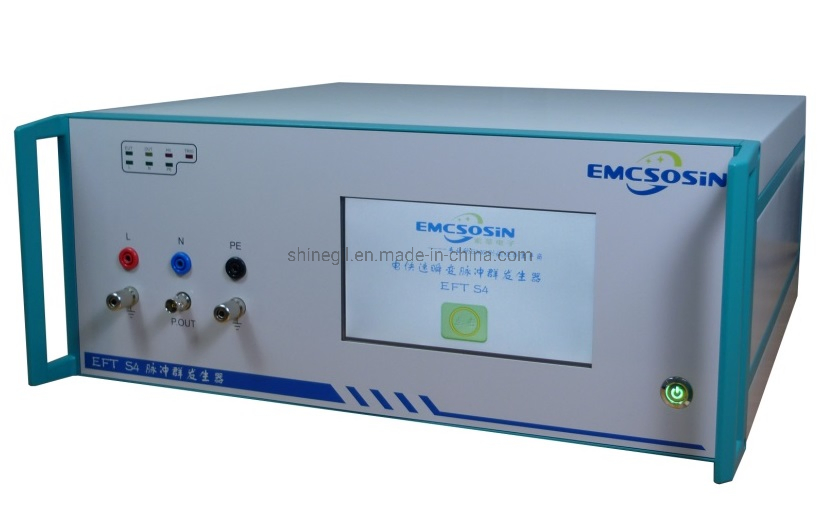

The EFT S/ T series are the state-of-the-art EFT/ Burst testers with a built-in coupling/ decoupling network for single phase or three-phase mains supply line and a HV terminal to connect a capacitive coupling clamp. Its performance fully complies with IEC 61000-4-4 standard. You may learn more details of our model EFT S4 from the following.
Features
1) Fully Compliant with latest Standards IEC/ EN 61000-4-4
2) User friendly 7" Touch Panel Display
3) Support multi-language & facilitate users
4) Built-in environment self-test program
5) Programmable operation
6) Pre-programmed IEC 61000-4-4 test settings
7) The highest pulse frequency is up to 1.2MHz
8) RS232 interface, PC control operation
9) Comfortable use and convenient operation
Technical data
Company Information
Shanghai EMCSOSIN/ Shanghai SHINEGIL is a professional supplier that specialized in R&D, manufacturing and selling EMC testing equipments. We've been committed to the electromagnetic compatibility (EMC) testing field, offering professional equipments which are widely used in electronics manufacturing, electric power, new energy, telecommunication, aerospace, teaching, renewable energy, automotive and other industries, as well as scientific research. We provide customers with professional EMC system integration solutions. We are also ISO9001 certified.
Our self-developed electrostatic discharge (ESD) generator, electrical fast transient (EFT)/ burst generator, lightning surge generator, voltage dips simulator and so on enjoy a high reputation both at home and abroad. To provide best service and create value for customers is our eternal pursuit!

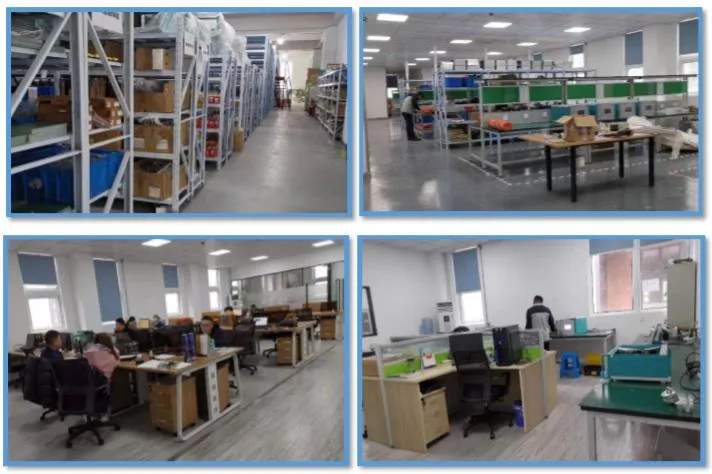

Manufactory and Office
Qualification and Certificate
Our Client
Packing
Our Service
1) Our product engineers and application technicians answer various questions and deal with emergencies in real time.
2) Professional engineers will guide the installation & debugging of equipments so that users can operate devices independently and solve problems in daily test.
3) Free warranty for 1 year and lifelong maintenance.
4) Free upgrade service for the users is available as per international standard updates requirements.
If you have any further query on EMC/ EMI testing equipments, electrical fast transient/ burst generators, pls do not hesitate to contact us at linda<at>shinegil<dot>com
We look forward to working with you sincerely!
Product Information
Switching the transient process (to cut off inductive load, relay contact bounce, etc) usually interferes with other electrical and electronic equipment in the same circuit. This type of interference is characterized by high amplitude, short rise time, high repetition rate and low energy. Pulse generators are used for evaluating the performance of electrical and electronic equipment power supply port, signal, control and grounding ports when subjected to electrical fast transient burst interference.
The EFT S/ T series are the state-of-the-art EFT/ Burst testers with a built-in coupling/ decoupling network for single phase or three-phase mains supply line and a HV terminal to connect a capacitive coupling clamp. Its performance fully complies with IEC 61000-4-4 standard. You may learn more details of our model EFT S4 from the following.
Features
1) Fully Compliant with latest Standards IEC/ EN 61000-4-4
2) User friendly 7" Touch Panel Display
3) Support multi-language & facilitate users
4) Built-in environment self-test program
5) Programmable operation
6) Pre-programmed IEC 61000-4-4 test settings
7) The highest pulse frequency is up to 1.2MHz
8) RS232 interface, PC control operation
9) Comfortable use and convenient operation
Technical data
| Model | EFT S4 |
| Output Voltage | 0.1~ ±5KV |
| Frequency | 1KH~1.2MHz ±10% , continuous adjustable |
| Pulse Polarity | Positive/ negative/ alternating |
| Running Time | 1~9999s, continuous adjustable |
| Internal Resistance | 50Ω ±10% |
| Pulse Front Edge | 5ns ±30% |
| Pulse Width | 50ns ±30% (50Ω load), 35ns~150ns (1kΩ load) |
| Pulse Number | 1~255, continuous adjustable |
| Phase Angle | 0~359°synchronous, asynchronous, or automatic |
| Burst Period | 0.15~99.99s, continuous adjustable |
| Coupling/ Decoupling network | Built-in, single-phase three-wire, 16A (customer specific on demand) |
| Power Supply | AC 220V ±10% 50/ 60Hz |
| Ambient Temperature | 15ºC~35ºC |
Company Information
Shanghai EMCSOSIN/ Shanghai SHINEGIL is a professional supplier that specialized in R&D, manufacturing and selling EMC testing equipments. We've been committed to the electromagnetic compatibility (EMC) testing field, offering professional equipments which are widely used in electronics manufacturing, electric power, new energy, telecommunication, aerospace, teaching, renewable energy, automotive and other industries, as well as scientific research. We provide customers with professional EMC system integration solutions. We are also ISO9001 certified.
Our self-developed electrostatic discharge (ESD) generator, electrical fast transient (EFT)/ burst generator, lightning surge generator, voltage dips simulator and so on enjoy a high reputation both at home and abroad. To provide best service and create value for customers is our eternal pursuit!

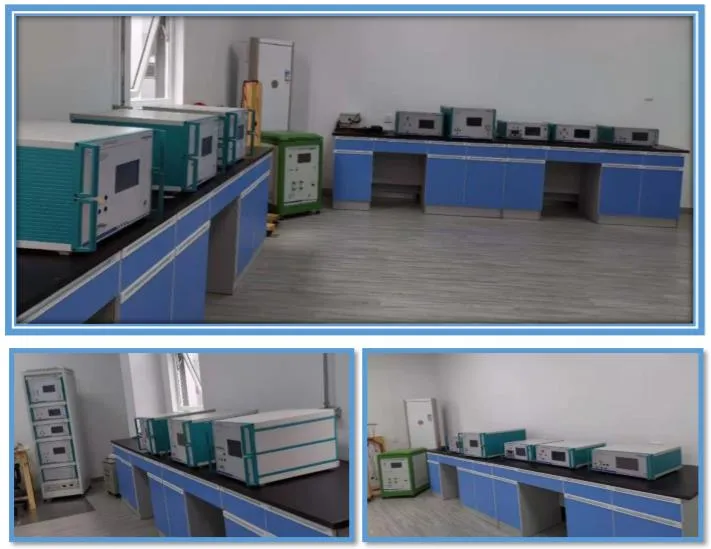

Manufactory and Office
Qualification and Certificate
Our Client
Packing
Our Service
1) Our product engineers and application technicians answer various questions and deal with emergencies in real time.
2) Professional engineers will guide the installation & debugging of equipments so that users can operate devices independently and solve problems in daily test.
3) Free warranty for 1 year and lifelong maintenance.
4) Free upgrade service for the users is available as per international standard updates requirements.
If you have any further query on EMC/ EMI testing equipments, electrical fast transient/ burst generators, pls do not hesitate to contact us at linda<at>shinegil<dot>com
We look forward to working with you sincerely!
