EMC Compliance Test ISO 10605 Automotive ESD Simulator (RV ESD)
EMC Compliance Test ISO 10605 Automotive ESD Simulator (RV ESD)Product DescriptionThe familiar electrostatic discharge, due to former charge build-ups generated, for example, when moving about inside a vehicle or getting out of it, has assumed greater significance with the increase of vehicle electr......
Send Inquiry
Product Description

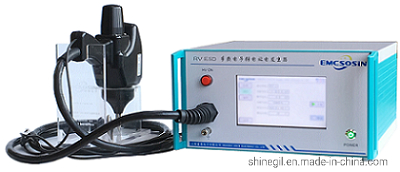

EMC Compliance Test ISO 10605 Automotive ESD Simulator (RV ESD)
Product Description
The familiar electrostatic discharge, due to former charge build-ups generated, for example, when moving about inside a vehicle or getting out of it, has assumed greater significance with the increase of vehicle electronic modules.
The Electrostatic Discharge Immunity Test is the most common immunity test in the field of electromagnetic compatibility (EMC) testing and it is demanding a lot in the automotive field. RV ESD (Automotive Electrostatic Discharge Generator) is designed to evaluate the performance of automotive electronic products, devices and systems when subjected to electrostatic discharge as defined in the latest standard ISO 10605.
Our model RV ESD is designed for testing as per ISO 10605 specifications. You may find details as below.
Features
> Fully Compliant with latest Standard ISO 10605
> User friendly 7" Touch Panel Display
> Support multi-language & facilitate users
> Built-in environment self-test program
> Programmable operation
> Pre-programmed IEC/ EN 61000-4-2 test settings
> Very convenient to replace the discharge modules to meet different standards of the test requirements
> RS232/ USB interface, PC control operation
> Comfortable use and convenient operation
Technical Data
Company Information
Shanghai EMCSOSIN/ Shanghai SHINEGIL is a professional supplier that specialized in R&D, manufacturing and selling EMC testing equipments. We've been committed to the electromagnetic compatibility (EMC) testing field, offering professional equipments which are widely used in electronics manufacturing, electric power, new energy, telecommunication, aerospace, teaching, renewable energy, automotive and other industries, as well as scientific research. We provide customers with professional EMC system integration solutions. We are also ISO9001 certified.
Our self-developed electrostatic discharge (ESD) generator, electrical fast transient (EFT)/ burst generator, lightning surge generator, voltage dips simulator and so on enjoy a high reputation both at home and abroad. To provide best service and create value for customers is our eternal pursuit!
Manufactory and Office
Qualification and Certificate
Our Client
Packing
Our Service
1) Our product engineers and application technicians answer various questions and deal with emergencies in real time.
2) Professional engineers will guide the installation & debugging of equipments so that users can operate devices independently and solve problems in daily test.
3) Free warranty for 1 year and lifelong maintenance.
4) Free upgrade service for the users is available as per international standard updates requirements.
If you have any further query on EMC/ EMI testing equipments, electrical fast transient/ burst generators, pls do not hesitate to contact us at linda<at>shinegil<dot>com
We look forward to working with you sincerely!
Product Description
The familiar electrostatic discharge, due to former charge build-ups generated, for example, when moving about inside a vehicle or getting out of it, has assumed greater significance with the increase of vehicle electronic modules.
The Electrostatic Discharge Immunity Test is the most common immunity test in the field of electromagnetic compatibility (EMC) testing and it is demanding a lot in the automotive field. RV ESD (Automotive Electrostatic Discharge Generator) is designed to evaluate the performance of automotive electronic products, devices and systems when subjected to electrostatic discharge as defined in the latest standard ISO 10605.
Our model RV ESD is designed for testing as per ISO 10605 specifications. You may find details as below.
Features
> Fully Compliant with latest Standard ISO 10605
> User friendly 7" Touch Panel Display
> Support multi-language & facilitate users
> Built-in environment self-test program
> Programmable operation
> Pre-programmed IEC/ EN 61000-4-2 test settings
> Very convenient to replace the discharge modules to meet different standards of the test requirements
> RS232/ USB interface, PC control operation
> Comfortable use and convenient operation
Technical Data
| Model | RV ESD |
| Output Voltage | 0.2~±30KV |
| Polarity of the output voltage | Positive/ Negative/ Alternating |
| Energy storage capacity | 150pF/ 330Ω 150pF/ 2000Ω 330pF/ 2000Ω 330pF/ 330Ω |
| Discharge resistor | 2000Ω , 330Ω |
| Discharge current rise time | 0.6~1ns |
| Holding Time | ≥5s |
| Discharge Mode | Contact Discharge & Air Discharge |
| Operating Modes | Single discharge & Repetitive discharges |
| Discharge Trigger | Manual, automatic or remote |
| Working Mode | IEC level mode/ Program mode/ Auto voltage rising patterns |
| Discharge Interval | 0.05~9.99s |
| Discharge Count | 1~9999 |
| Power Supply | AC220V ±10%, 50/ 60 Hz |
| Ambient Temperature | 15ºC~35ºC |
| Weight | 10kg |
Company Information
Shanghai EMCSOSIN/ Shanghai SHINEGIL is a professional supplier that specialized in R&D, manufacturing and selling EMC testing equipments. We've been committed to the electromagnetic compatibility (EMC) testing field, offering professional equipments which are widely used in electronics manufacturing, electric power, new energy, telecommunication, aerospace, teaching, renewable energy, automotive and other industries, as well as scientific research. We provide customers with professional EMC system integration solutions. We are also ISO9001 certified.
Our self-developed electrostatic discharge (ESD) generator, electrical fast transient (EFT)/ burst generator, lightning surge generator, voltage dips simulator and so on enjoy a high reputation both at home and abroad. To provide best service and create value for customers is our eternal pursuit!

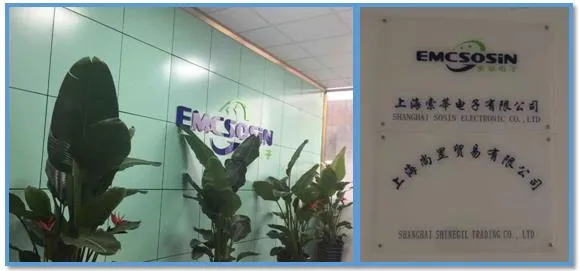

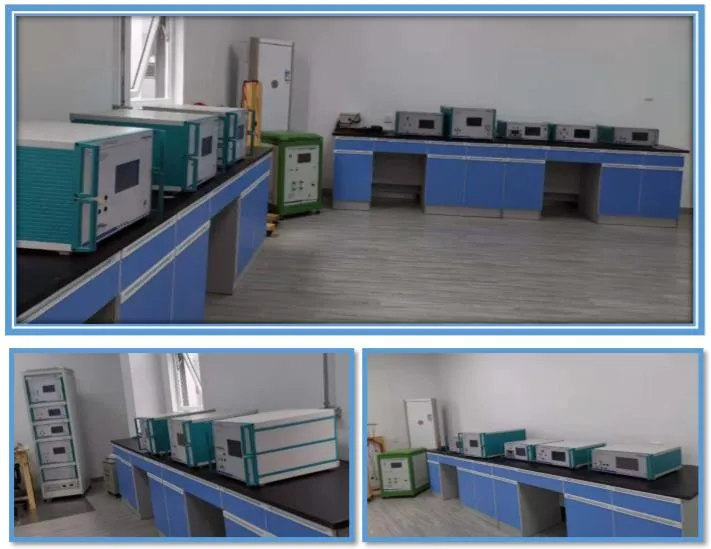

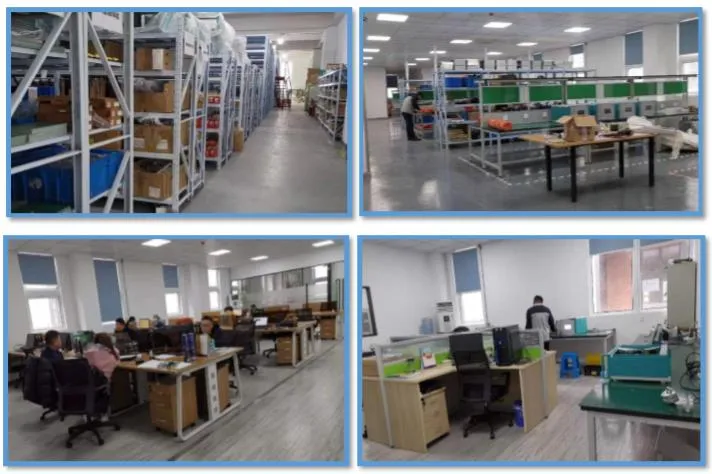

Manufactory and Office
Qualification and Certificate
Our Client
Packing
Our Service
1) Our product engineers and application technicians answer various questions and deal with emergencies in real time.
2) Professional engineers will guide the installation & debugging of equipments so that users can operate devices independently and solve problems in daily test.
3) Free warranty for 1 year and lifelong maintenance.
4) Free upgrade service for the users is available as per international standard updates requirements.
If you have any further query on EMC/ EMI testing equipments, electrical fast transient/ burst generators, pls do not hesitate to contact us at linda<at>shinegil<dot>com
We look forward to working with you sincerely!
