Impact Element with Energy Value 50j of IEC 60068 -2-75
Impact Element With Energy Value 50 JProduct details: Conform to IEC60068-2-75 table 1 and table 2.equivalent 10 kg,energy of 50J.Material: Stainless steelModelZLT-SE5JZLT-SE10JZLT-SE20JZLT-SE50JEnergy 5J 10J20J 50JShapes of elementsDiameter:60mm long:75mmDiameter:80mm long:117mmD......
Send Inquiry
Product Description

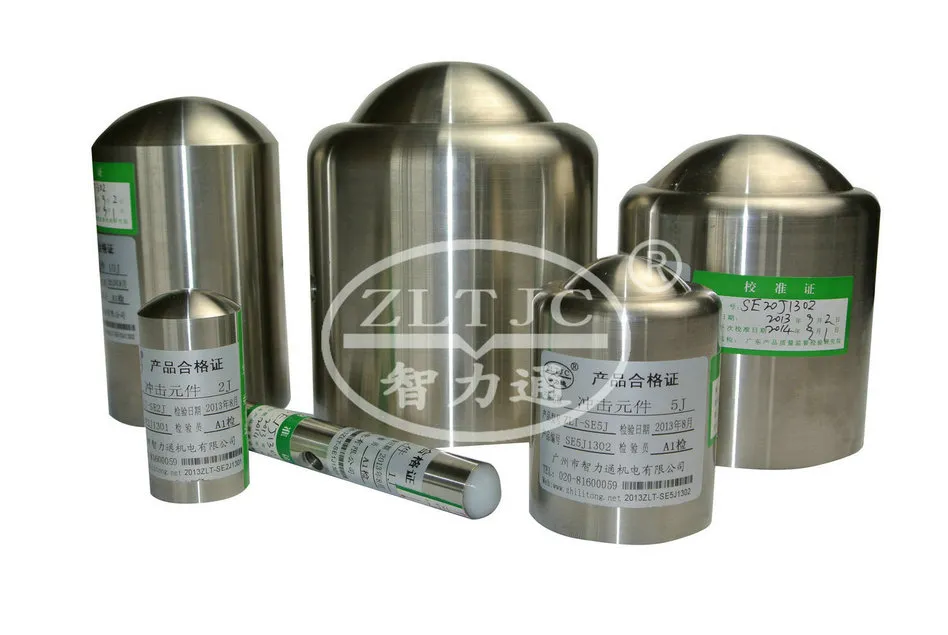

Impact Element With Energy Value 50 J
Product details: Conform to IEC60068-2-75 table 1 and table 2.equivalent 10 kg,energy of 50J.
Material: Stainless steel
Product details: Conform to IEC60068-2-75 table 1 and table 2.equivalent 10 kg,energy of 50J.
Material: Stainless steel
| Model | ZLT-SE5J | ZLT-SE10J | ZLT-SE20J | ZLT-SE50J |
| Energy | 5J | 10J | 20J | 50J |

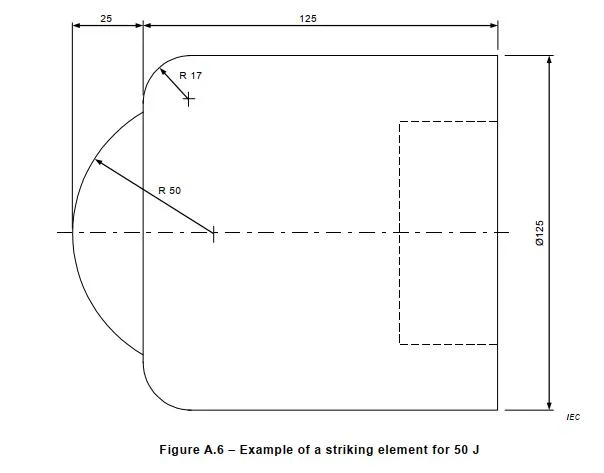

| Shapes of elements | Diameter:60mm long:75mm | Diameter:80mm long:117mm | Diameter:100mm long:100mm | Diameter:125mm long:125mm |
| Equivalent mass | 1.7kg | 5kg | 5kg | 10kg |
