High Quality Climatic Xenon Accelerated Weathering Test Chamber

Product Description

High quality climatic xenon accelerated weathering test chamber

Xenon accelerated weathering test chamber simulates full sunlight spectrum xenon arc lamp to represent the destructive waves under different environment. It is used for scientific research, product development and quality control to provide the corresponding environmental simulation and acceleration test. According to test standard and test method, It is devided into air cooling xenon lamp, air cooling xenon lamp and bench top xenon lamp. The differences for the three types are test temperature, test humidity, test time, etc.

International test standard:

ISO 4892-2:2006, ISO 11341-2004, ASTM G155-05a, ASTM D2565-99, ASTM D4459-06, ASTM D6695-03.

Chinese test standard:

GB12831-86 Vulcanized rubber artificial climate (xenon lamp) Aging Test Method
GB/T1644.2-1999Plastics laboratory light exposure test method
GB/T8427-89 textile color fastness test, resistance to artificial light fastness xenon arc
GB/T8430-98 textile color fastness test, resistance to artificial light fastness xenon arc
GB/T1865-97 Paints, varnishes, artificial weather aging and artificial radiation exposure
GB/T16991-97 textile color fastness test,
GB/T5137.3-96 simulated climate test method of resistant to radiation, heat, humidity, burning
GB/T16259-96 color building materials, artificial climate accelerated aging test method.
GB/T2423.24-95 Electronic and Electrical Products Environmental Testing Part II: test method, testing SQ: Simulation of solar radiation on the ground.

Features:

1 equipped with blackboard thermometer to adjust the test temperature in the chamber.

2 can control xenon arc lamp light time.

3 Control water spray cycle.

4 Water circulation.

5 automatic constant temperature(circulating water cooling)

6 LCD touch screen controller can independantly control water spray, light, temperature, humidity, rotary table.

7 large glass observation window

8 water shortage and over temperature faulty alarm.

9 irradiation meter displays light intensity in the chamber.

Specification

Model	YXEL-225	YXEL-480	YXEL-600	YXEL-800	YXEL-1200
Inner size(WHD)mm	500700600	8001000600	800900850	900900900	100012001000
Xenon lamp power(Kw)	2.2 KW air cooling type,3.3/4.5KW water cooling type
Temperature range	RT+10ºC~90ºC
Black Panel Temperature	40-110ºC
Gumidity range (light)	10%~70%R.H
Gumidity range (dark)	10%~95%R.H
Accuracy range	Temperature±0.1 humidity±1%R.H
Rainfall time	1~9999h/59min adgustable
Rainfall cycle	1~9999h/59min adgustable
Water supply system	Bring filter,Automatic control by humidifying water. Cooling water loop xenon lamp
Wave length	200nm~800nm
Irradiation capability	200W/~800W/(adjustable)
Irradiance deviation	±0.1 W/m2
Temperature controller	Imported weinview color touch screen and PLC control module Siemens Germany
Temperature and humidity sensor	Platinum resistance.PT100Ω/MV

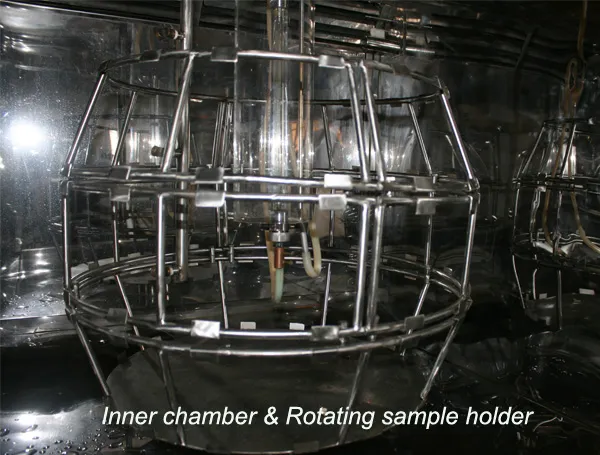

Sample holder	Automatic rotary rack
Materail	SUS304 stainless steel plate
Door insulation	High temperature aging silicone rubber door seal
Safety protection	Leakage, short circuit, over temperature, water shortage, motor overheating, over current protection
Test standards	Complies with JISD0205-1987,GB/T16422.2-1999,ISO4892-2,ASTMG155 GB/T1865-2009 GB/T2423.24-1995 and corresponding standards.
Supply voltage	AC380V±10% 50±0.5Hz Three phase five wire system Phase

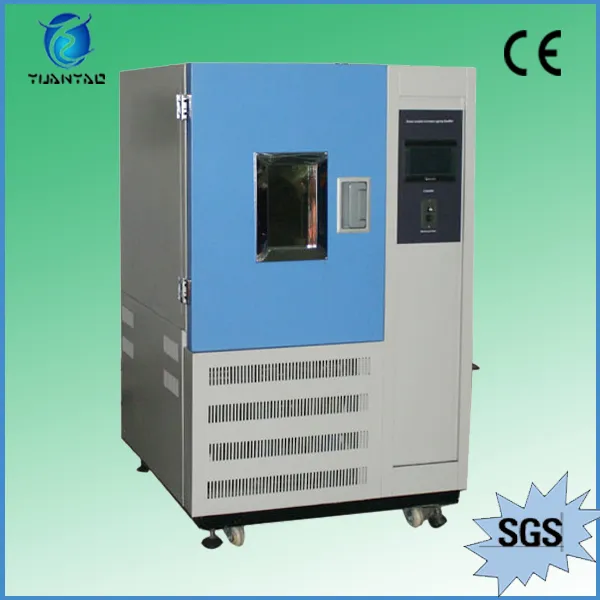

Photos show

High Quality Climatic Xenon Accelerated Weathering Test Chamber
