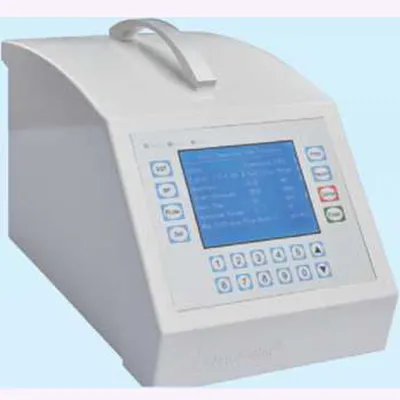

Full-Automatic Filter Integrity Tester/Integtest and Bubble Point Instrument
Item: Full-Automatic Filter Integrity Tester/Integtest and Bubble Point Instrument Modle: FIT-V4Feature1. Automatic air inlet design, to ensure efficiency and test accuracy at the same time;2. The instrument actually measures the up stream volume, so the test result is more accurate;3. Domestic firs......
Send Inquiry
Product Description
Item: Full-Automatic Filter Integrity Tester/Integtest and Bubble Point Instrument
Modle: FIT-V4
Feature
1. Automatic air inlet design, to ensure efficiency and test accuracy at the same time;
2. The instrument actually measures the up stream volume, so the test result is more accurate;
3. Domestic first model to introduce water immersion method;
4. Widely used by customers, with a high market share and cost performance;
5. Automatic control of air intake level, with a smooth and safe air intake, to ensure the service life of filter.
Technical Parameters
Power Supply | 100 - 260 VAC, 50HZ, 120W |
Operation pressure | 100-8000mbar (115psi) |
Unit | mbar |
Operation Condition | Ambient Temperoture:+5°C -40°C;Relotive Humidity:10-80% |
Dimension(mm) | 400(Depth)*240(Width)*270(Height1)*220(Height2) |
Test Function | Manual Bubble point Test; Basic Bubble Point Test; Extensive Bubble Point Test; Diffusion Flow Test;Water Immersion Test |
Test Accuracy | Upstream Volume:± 4%;Bubble Point:< ± 50mbar ; Diffusion Flow Test:± 4% ; Water Immersion Test:< ± 0.05ml |
Test Scope | Bubble Point : 590-6900mbar Diffusion Flow Speed:1-180ml/min WI:0.01-30ml/min |
Applied Range | Symmetric and asymmetric membrane test, needle filter, filter bag, flat filter, filter cartridge (3 core within 20 inches) |
Print Function | Built-in printer |
Historical Records | 500 sets |
Display Screen | 5.7" TFT,Single color |
Serial Connection | RS232 |
Language | Chinese/English |
Work Mode | Online/Offline |
Applicable Environment | Above D level |
Weight | 7.5KG |
Selection guide
Model Function | V4 | Customer-made |
Manual Bubble Point Test |
| Can be customized according to customer's actual require |
Basic Bubble Point Test | V | |
Extensive Bubble Point Test | V | |
Pressure Holding Test |
| |
Diffusion Flow Test | V | |
Water( instrusion) Test | V | |
Ultrafiltration Test |
| |
Input Method | English / Number | |
Electronic Signature |
| |
4 level user management |
| |
Users quantity |
| |
Audit trail |
| |
Reservation Solution |
| |
Screen |
| |
Historical Records | 500 sets | |
Records Print | V | |
Export Data |
| |
Password lock screen after setting time |
| |
More units switch (mbar,kpa,psi,kgf/cm2) |
| |
Blow sweeping inside tube |
|
