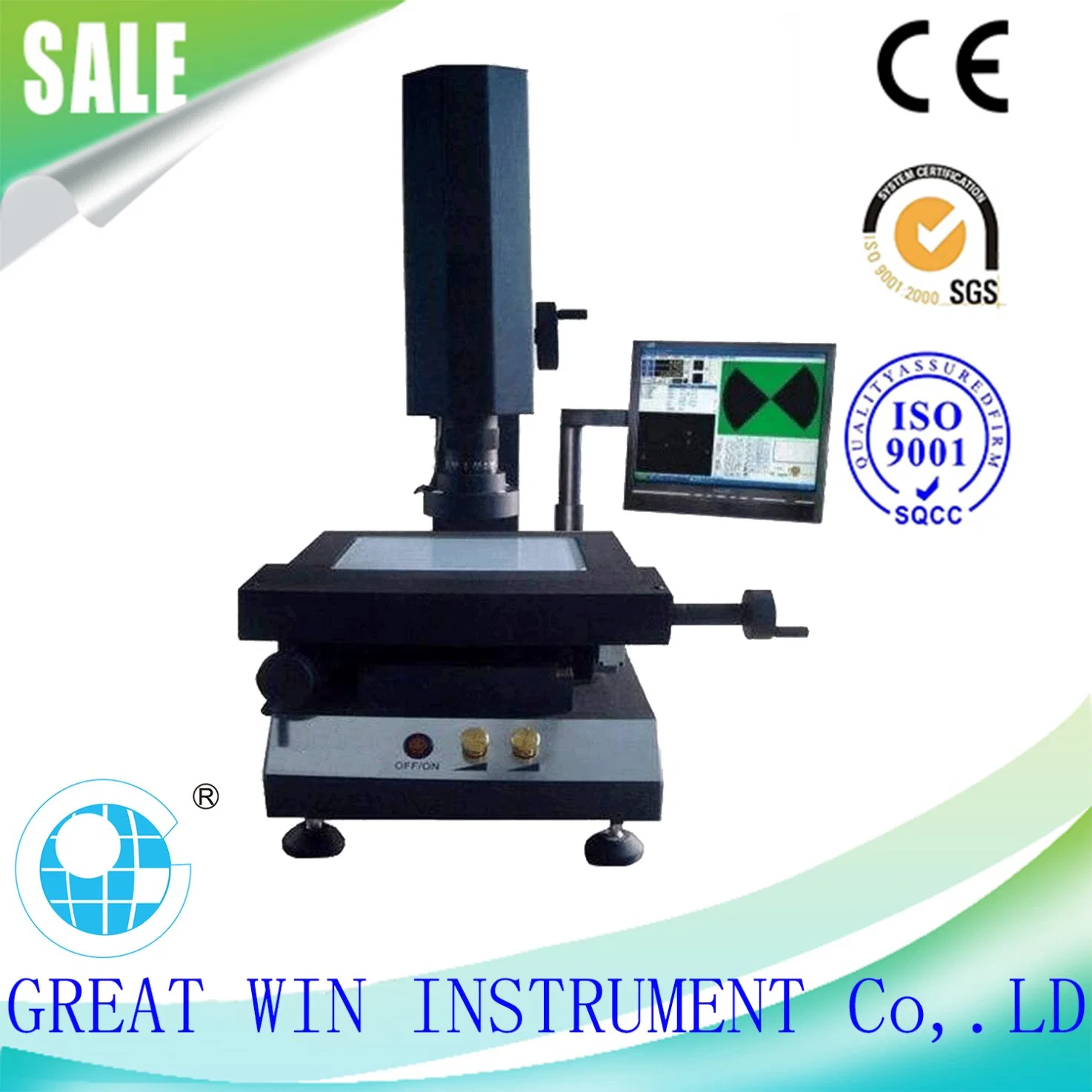

CNC Quadratic Elements Video Measuring Instrument (GW-388A)

CNC Quadratic Elements Video Measuring Instrument (GW-388A)

Applies to the second coordinate measurement for the purpose of all applications, machinery, electronics, instrumentation,

Equipmen discription:

This instrument applies to the second coordinate measurement for the purpose of all applications, machinery, electronics, instrumentation, plastics and other industries widely used.

Main feature:

1. Apparatus with RS-232 interface, when connected to the computer, special measurement software M2D can process and output the mapping graph.
2. Apparatus using color CCD camera, zoom lens and the cross line generator as a measure aiming system;
3. Grating electric box with the composition of DC-3000 Digital Measurement and data processing systems;
4. Apparatus with a variety of data processing, display, input, output, particularly useful piece straighten function; Users matching the printer according to their needs and target different measurement systems.
Main feature:

Element measurements: Multi-point measurement point, line, circle, arc, angle, ellipse, rectangle measuring points provided, automatic identification of point, line, circle, arc.
Element structure: The center structure, the intersection of structure, the MID-point structure, line structure, a round structure, the angle structures.
Preset elements: Point, line, circle, arc.
Graphics: Coordinate translation, straighten the workpiece.
Arbitrary axis straightened, coordinate system reset.
Graphic to enlarge, reduce graphics, graphics translation, graphic printing graphic is selected, uncheck, graphics removed.
Set the zoom, graphics narrow, graphic print radio is selected, deselect, graphics removed.
Set the gray scale image, saturation, contrast, image saved as a BMP format.
A variety of edge detection mode, the computer automatically get points, automatic identification circle, arc greatly enhance the speed of mining points.
Image support S video input; Image size 640 * 480mm.

Software's common feature:

Multi-point measurement point, line, circle, arc, ellipse, improving measurement accuracy.
Straightened coordinates translation and coordinate measurement more convenient and efficient, improve the measurement efficiency.
Convenient combination of elements, users simply click graph could be composed of point, line, circle, distance, angle.
Macro commands, batch jobs with a kind of measurement is more convenient, made of high measurement efficiency.
Measurement data directly to AutoCAD, the measurement of the graphics can be saved dxf document.
Measurement data can be sent to Excel, for statistical analysis, can draw a simple Xbar-S control chart, calculated Ca, and other parameters.
Multilingual interface switching.
Record user program, editing commands, taught to perform.

Technical Specifications:

Model		VMS-3040
Table	Metal table size (mm)	510 × 290
	Glass table size (mm)	360 × 160
	Travel mileage (mm)	300 × 400
Weight( kg )		200
Measurement and aiming system		Camera: Color 1 / 3 " CCD camera        Zoom lens magnification: 0.7 ~ 4.5 ×
		Video Total magnification: 30 ~ 230 ×             Field of view objects: 7 ~ 1.1mm
		Working distance: 108mm
		Z-axis lift: 150 mm
Digital Resolution: 1μ m		X. Y coordinate measuring indication error ≤ 3 + L/200) μ m
Lighting: Surface light and transmission light are using LED, adjustable brightness                        Power: 220V (AC), 50HZ, 30W
Measurement software: standard with automatic measurement software can automatically find edges, deburring, measurable point, line, circle, center distance, angle, put right, etc.

What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
