200kv/ 3mA High Voltage Test DC Hipot Tester/ Withstand Voltage Tester
I. Application1) MOA lightning-arrester HVDC hi-pot2) HVDC hi-pot and leak current measurement for HV electrical equipment, such as transformer, switchgear, and oil-type power cable3) Leak current measurement for water-cooling DC power generators4) High-stability DC HV generators with high-precision......
Send Inquiry
Product Description
I. Application
1) MOA lightning-arrester HVDC hi-pot
2) HVDC hi-pot and leak current measurement for HV electrical equipment, such as transformer, switchgear, and oil-type power cable
3) Leak current measurement for water-cooling DC power generators
4) High-stability DC HV generators with high-precision DC voltage-divider for DC HV standardization
1.dc high voltage generator(dc high voltage tester) is portable at site,light in weight & small size
2.With AIPWM technology, avoid the inaccuracy linearity of PWM ,High precision, exact measure,and Ripple factor ≤0.5 %
3.AI Zinc Oxide arrester and oil-immersed transformer measure function ,test report can be saved directly,accuracy ≤0.5 %, 75% UDC 1mA function button.
4.with AI technology to set over-voltage protection and over-current protection instead of digital dial switch which can only set voltage value,Error ≤1% .
5.Full range of smooth voltage regulation, voltage regulation precision ≤1%, stability ≤1%, voltage and current error ≤ 1.0%±1
6.With the total time T1 and segment timing T2, and arbitrary voltage, current timing function
7.dc high voltage generator(dc high voltage tester) adds a calendar and time function

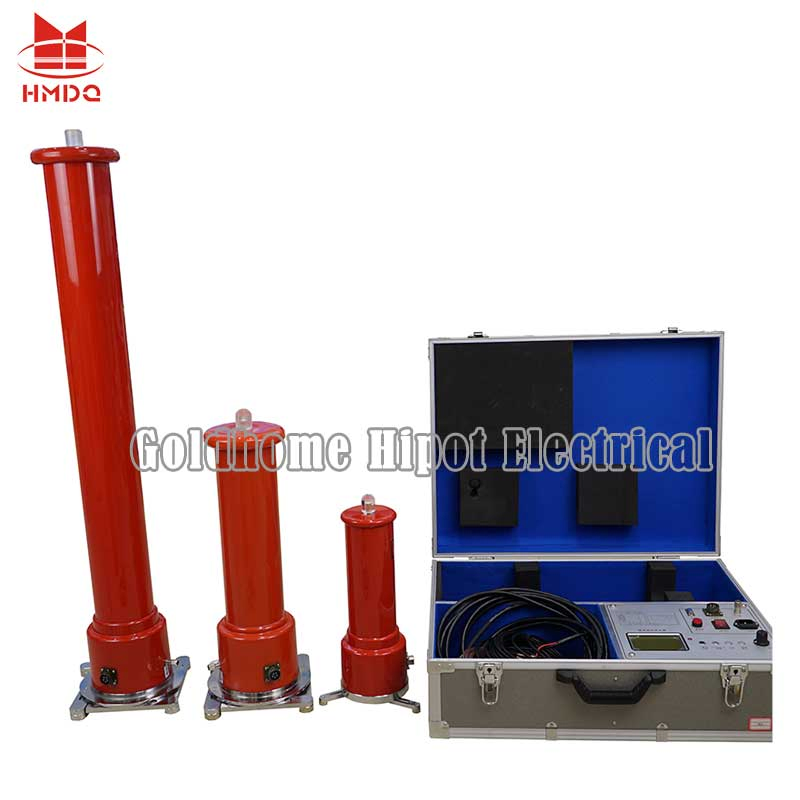

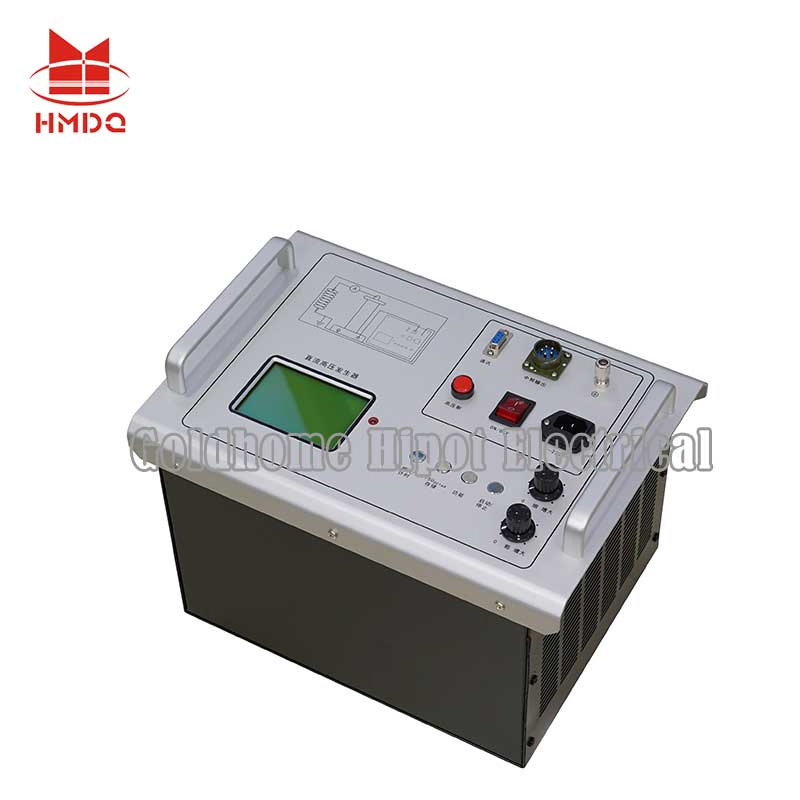

Detailed Images of DC Hipot Test Set
2.With AIPWM technology, avoid the inaccuracy linearity of PWM ,High precision, exact measure,and Ripple factor ≤0.5 %
3.AI Zinc Oxide arrester and oil-immersed transformer measure function ,test report can be saved directly,accuracy ≤0.5 %, 75% UDC 1mA function button.
4.with AI technology to set over-voltage protection and over-current protection instead of digital dial switch which can only set voltage value,Error ≤1% .
5.Full range of smooth voltage regulation, voltage regulation precision ≤1%, stability ≤1%, voltage and current error ≤ 1.0%±1
6.With the total time T1 and segment timing T2, and arbitrary voltage, current timing function
7.dc high voltage generator(dc high voltage tester) adds a calendar and time function

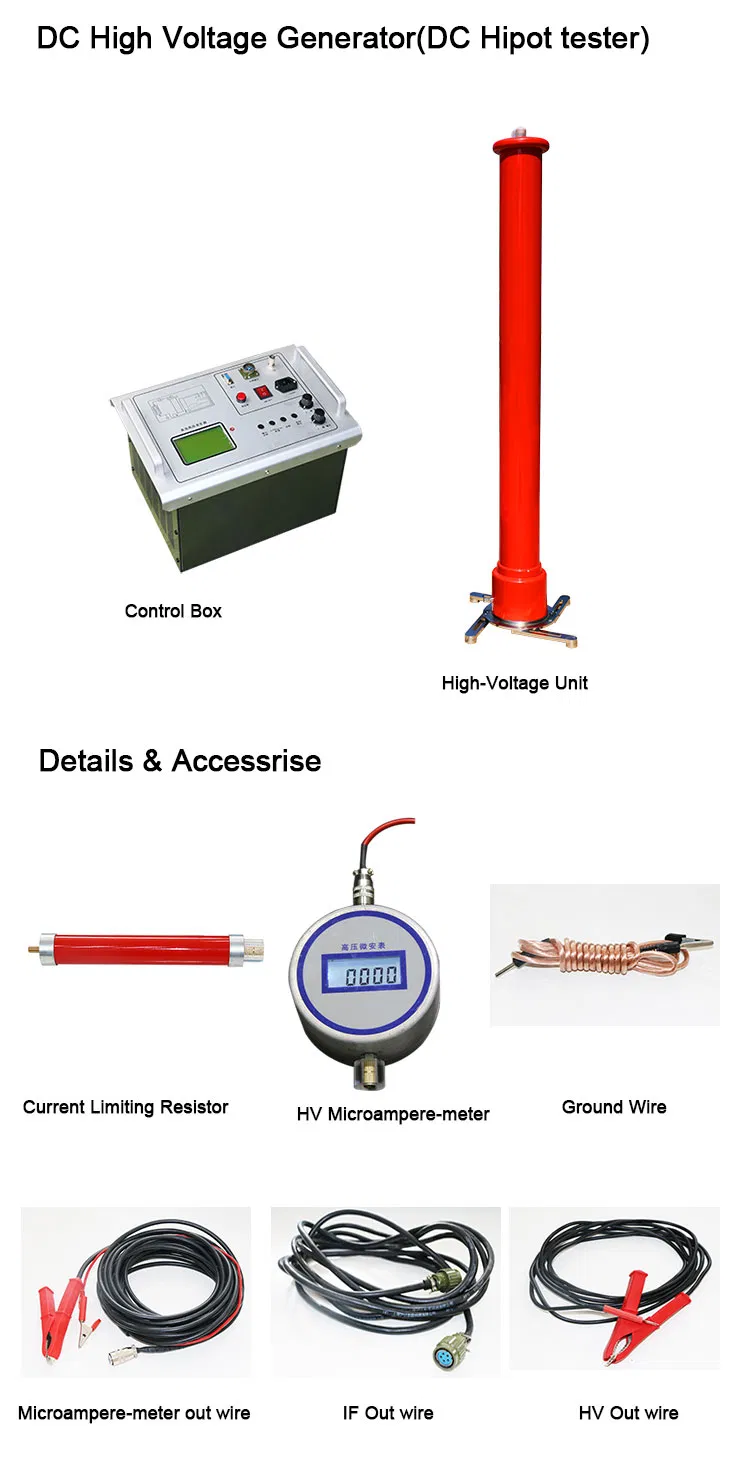

Detailed Images of DC Hipot Test Set

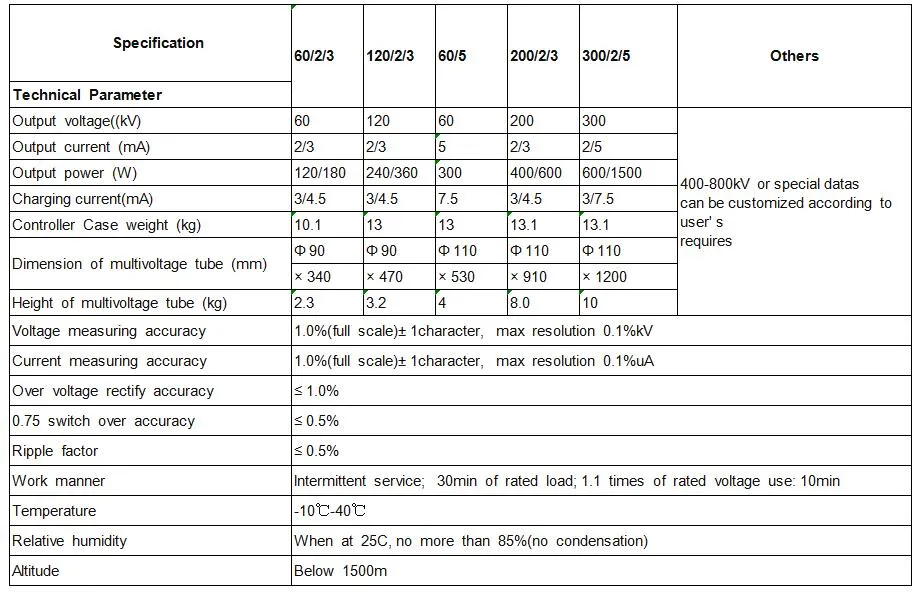

III. Technical parameters of DC Hipot Test Set
