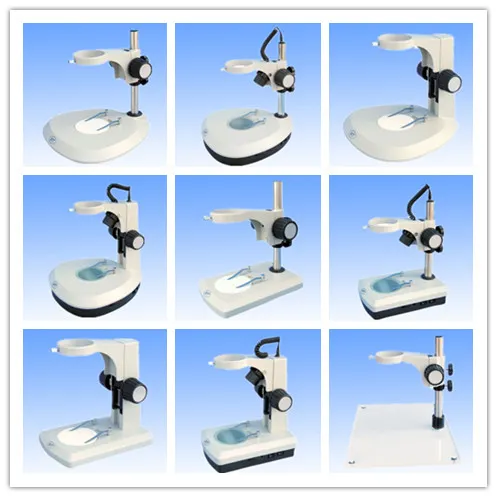

Microscope Stand for Mzs Series Stereo Microscope
Microscope Stand for MZS series:SD1 ·Not with illuminator, the diameter of the round post is Φ25mm, the height is 240mm.·The range of holders adjusting focus is 50mm.·The measurement to match between the support and the main body is Φ76mm.·......
Send Inquiry
Product Description
Microscope Stand for MZS series:
SD1
·Not with illuminator, the diameter of the round post is Φ25mm, the height is 240mm.
·The range of holders adjusting focus is 50mm.
·The measurement to match between the support and the main body is Φ76mm.
·The diameter of the center working stage is Φ95mm
SD2
·In holder with adjusting angles and lighteness, 6V/10W, the reflected illumination of the halogen lamp.
·In Stand with 110V or 220V/5W the transmitted illumination of the fluorescent lamp.
·The up and down illuminators can use singly or simultaneity. Selected kinds of separable power line.
·The diameter of the round post is Φ25mm, the height is 240mm.
·The range of holders adjusting focus is 50mm.
·The measurement to match between the support and the main body is Φ76mm.
SD3
·Not with illuminator, the range of the square post adjusting focus is 100mm.
·The measurement to match between the support and the main body is Φ76mm.
·The diameter of the center working stage is Φ95mm.
SD4
·In holder with adjusting angles and lighteness, 6V/10W, the reflected illumination of the halogen lamp.
·In Stand with 110V or 220V/5W the transmitted illumination of the fluorescent lamp.
·The up and down illuminators can use singly or simultaneity. Selected kinds of separablepower line.
·The measurement to match between the support and the main body is Φ76mm.
·The range of the square post adjusting focus is 100mm.
·The diameter of the center working stage is Φ95mm.
SD5
·Not with illuminator, the diameter of the round post is Φ25mm, the height is 240mm
·The range of holders adjusting focus is 50mm.
·The measurement to match between the support and the main body is Φ76mm.
·The diameter of the center working stage is Φ95mm
SD6
·In holder with adjusting angles and lighteness, 6V/10W, the reflected illumination of the halogen lamp.
·In Stand with 110V or 220V/5W the transmitted illumination of the fluorescent lamp.
·The up and down illuminators can use singly or simultaneity. Selected kinds of separablepower line.
·The diameter of the round post is Φ25mm, the height is 240mm.
·The range of holders adjusting focus is 50mm.
·The measurement to match between the support and the main body is Φ76mm.
·The diameter of the center working stage is Φ95mm.
SD7
·Not with illuminator, the range of the square post adjusting focus is 100mm.
·The measurement to match between the support and the main body is Φ76mm.
·The diameter of the center working stage is Φ95mm.
SD8
·In holder with adjusting angles and lighteness, 6V/10W, the reflected illumination of the halogen lamp.
·In Stand with 110V or 220V/5W the transmitted illumination of the fluorescent lamp.
·The up and down illuminators can use singly or simultaneity. Selected kinds of separablepower line.
·The measurement to match between the support and the main body is Φ76mm.
·The range of the square post adjusting focus is 100mm.
·The diameter of the center working stage is Φ95mm.
SD9
·Big soleplate of polymethyl methacrylate
·The diameter of the round post is Φ25mm, the height is 240mm.
·The range of holders adjusting focus is 50mm.
·The measurement to match between the support and the main body is Φ76mm.
SD10 SD11 SD12
SD1J SD2J SD3J
SD4J SD17 SD18
SD17J SD18J SD2/3W
SD1
·Not with illuminator, the diameter of the round post is Φ25mm, the height is 240mm.
·The range of holders adjusting focus is 50mm.
·The measurement to match between the support and the main body is Φ76mm.
·The diameter of the center working stage is Φ95mm
SD2
·In holder with adjusting angles and lighteness, 6V/10W, the reflected illumination of the halogen lamp.
·In Stand with 110V or 220V/5W the transmitted illumination of the fluorescent lamp.
·The up and down illuminators can use singly or simultaneity. Selected kinds of separable power line.
·The diameter of the round post is Φ25mm, the height is 240mm.
·The range of holders adjusting focus is 50mm.
·The measurement to match between the support and the main body is Φ76mm.
SD3
·Not with illuminator, the range of the square post adjusting focus is 100mm.
·The measurement to match between the support and the main body is Φ76mm.
·The diameter of the center working stage is Φ95mm.
SD4
·In holder with adjusting angles and lighteness, 6V/10W, the reflected illumination of the halogen lamp.
·In Stand with 110V or 220V/5W the transmitted illumination of the fluorescent lamp.
·The up and down illuminators can use singly or simultaneity. Selected kinds of separablepower line.
·The measurement to match between the support and the main body is Φ76mm.
·The range of the square post adjusting focus is 100mm.
·The diameter of the center working stage is Φ95mm.
SD5
·Not with illuminator, the diameter of the round post is Φ25mm, the height is 240mm
·The range of holders adjusting focus is 50mm.
·The measurement to match between the support and the main body is Φ76mm.
·The diameter of the center working stage is Φ95mm
SD6
·In holder with adjusting angles and lighteness, 6V/10W, the reflected illumination of the halogen lamp.
·In Stand with 110V or 220V/5W the transmitted illumination of the fluorescent lamp.
·The up and down illuminators can use singly or simultaneity. Selected kinds of separablepower line.
·The diameter of the round post is Φ25mm, the height is 240mm.
·The range of holders adjusting focus is 50mm.
·The measurement to match between the support and the main body is Φ76mm.
·The diameter of the center working stage is Φ95mm.
SD7
·Not with illuminator, the range of the square post adjusting focus is 100mm.
·The measurement to match between the support and the main body is Φ76mm.
·The diameter of the center working stage is Φ95mm.
SD8
·In holder with adjusting angles and lighteness, 6V/10W, the reflected illumination of the halogen lamp.
·In Stand with 110V or 220V/5W the transmitted illumination of the fluorescent lamp.
·The up and down illuminators can use singly or simultaneity. Selected kinds of separablepower line.
·The measurement to match between the support and the main body is Φ76mm.
·The range of the square post adjusting focus is 100mm.
·The diameter of the center working stage is Φ95mm.
SD9
·Big soleplate of polymethyl methacrylate
·The diameter of the round post is Φ25mm, the height is 240mm.
·The range of holders adjusting focus is 50mm.
·The measurement to match between the support and the main body is Φ76mm.
SD10 SD11 SD12
SD1J SD2J SD3J
SD4J SD17 SD18
SD17J SD18J SD2/3W
