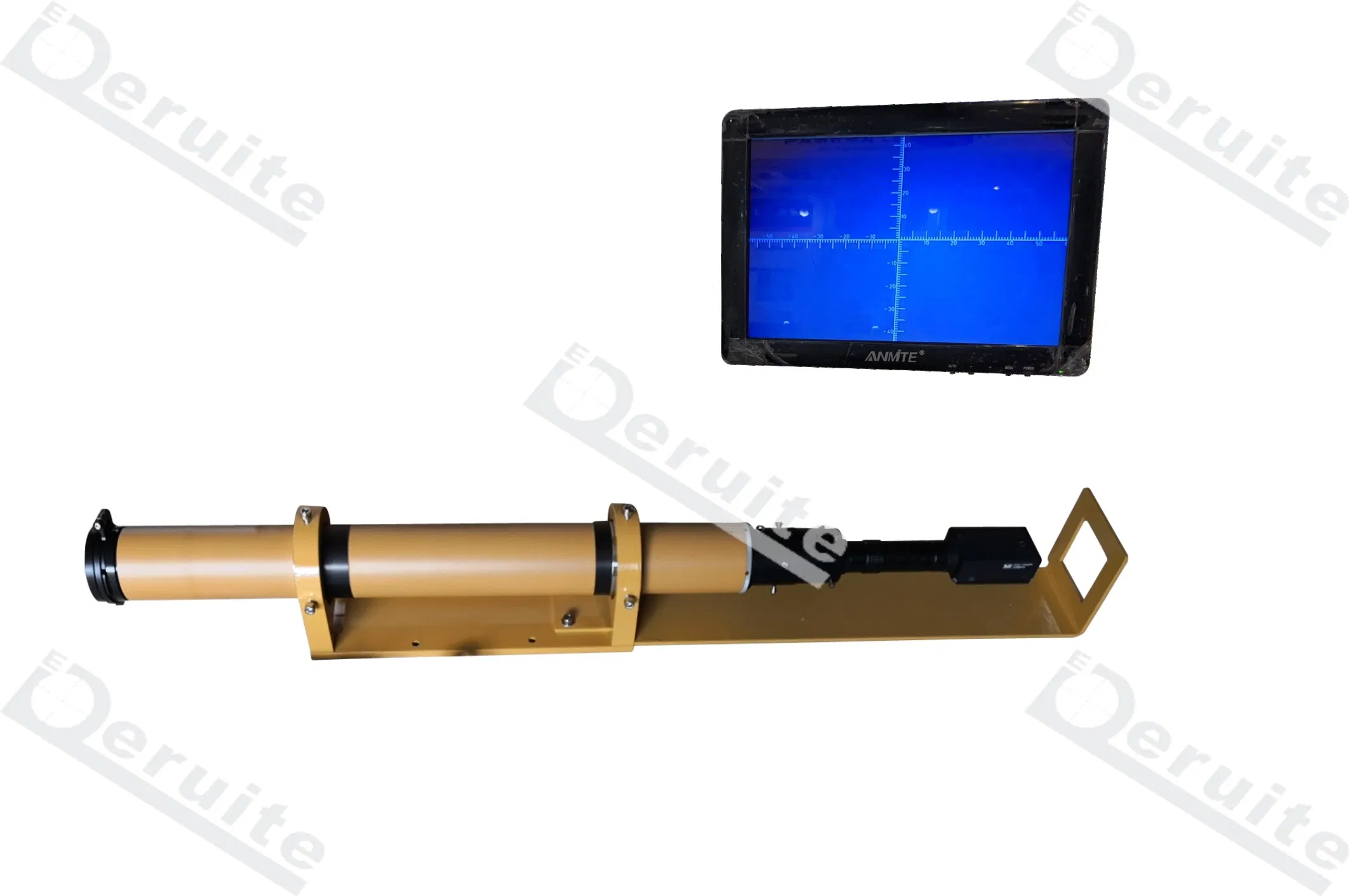

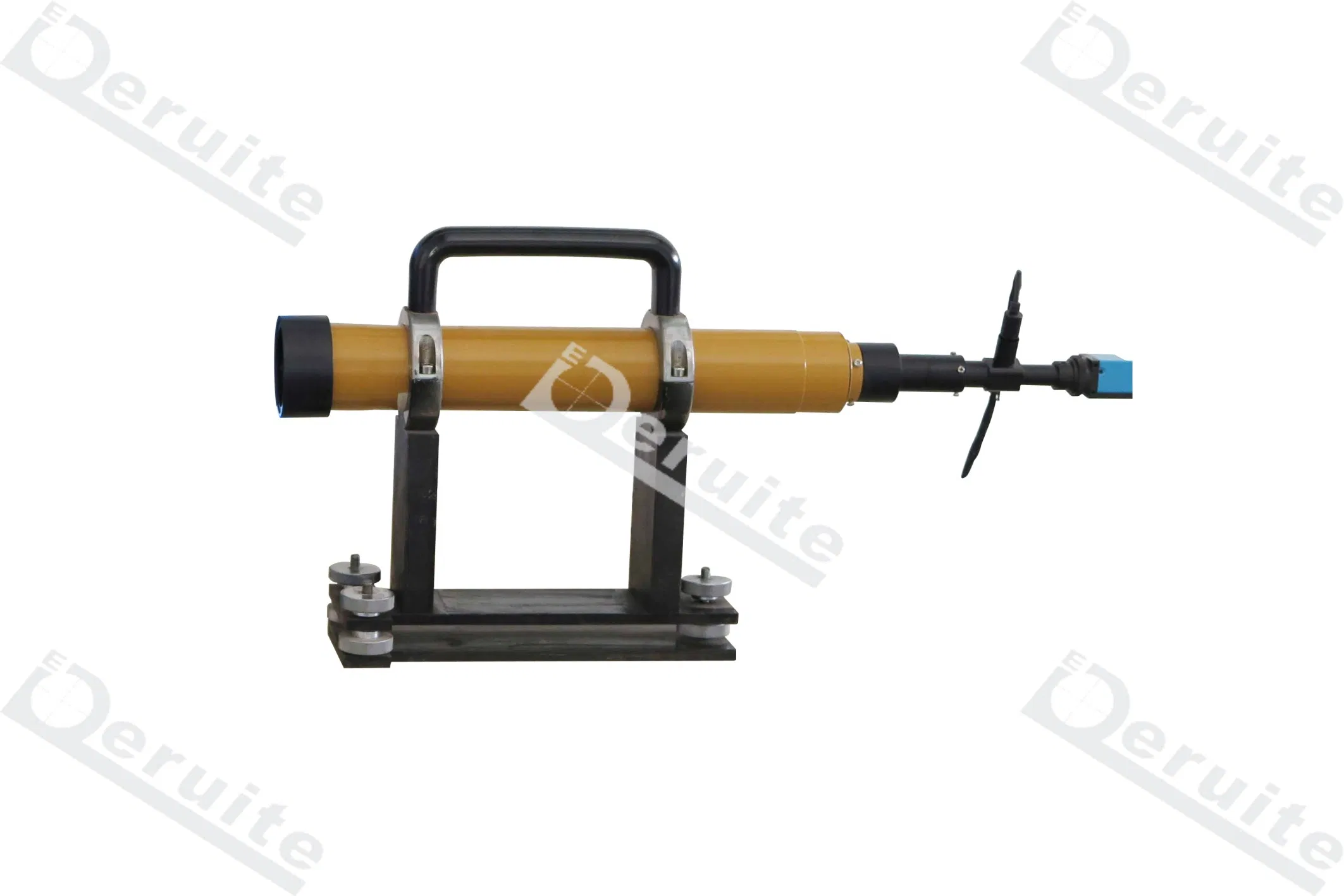

Digital Collimator for Laser Instrument F550CCD, F420CCD

INCLUDING A CCD TUBE, LASER FILTER,DISPLAY,POWER ADAPTER

FEATURE:

1. he digital collimator tube is the upgrade of the optical collimator tube, it can replace the optical collimator tube.
2. It can output the images of the laser line/point in the reticle on the display. Then we can display,store and analyze the images.
3. View the laser line/point on the computer display, the laser's exposure and hurt to the abserver will be avoided.
4. The CCD collimator tubes can be assembled together to fullfil the calibration the laser instruments and optical instruments, such as rotary laser level,multi-line laser, laser plummet,autolevel, theodolite and total station.

SPECIFICATION:

 *OPTICAL TUBE:

  Tube focus: F550CCD: 550mm;

  Tube Aperture: F550CCD:55mm;

 *DIGITAL EYEPIECE

 TYPE OF CCD: Industrial Camera

  CCD size: 1/2inch or 1/3inch

  PIXEL: 3MILLION

  Focus:45mm

  Lens type: Telecentric Lens

  Light source: LED

  CCD Power input: 6v

  LED Power input: 3.5V
