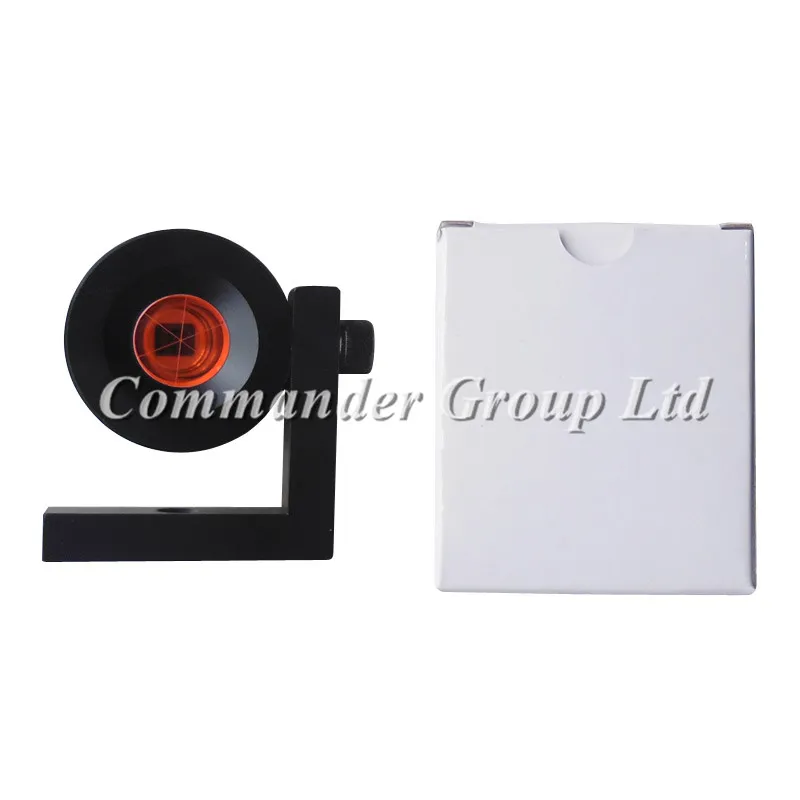

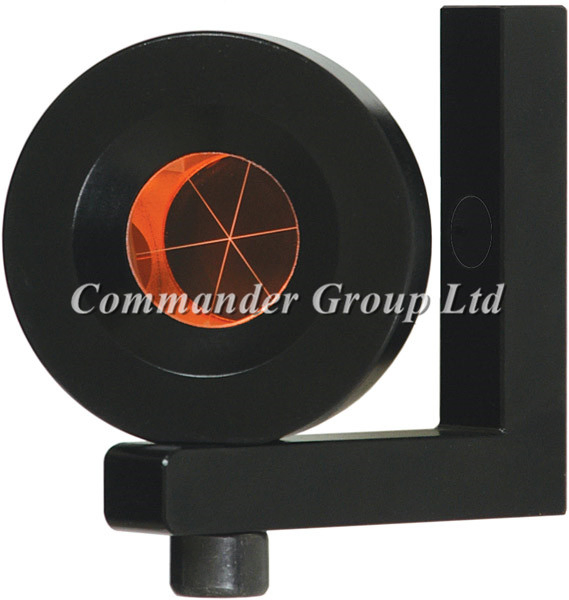

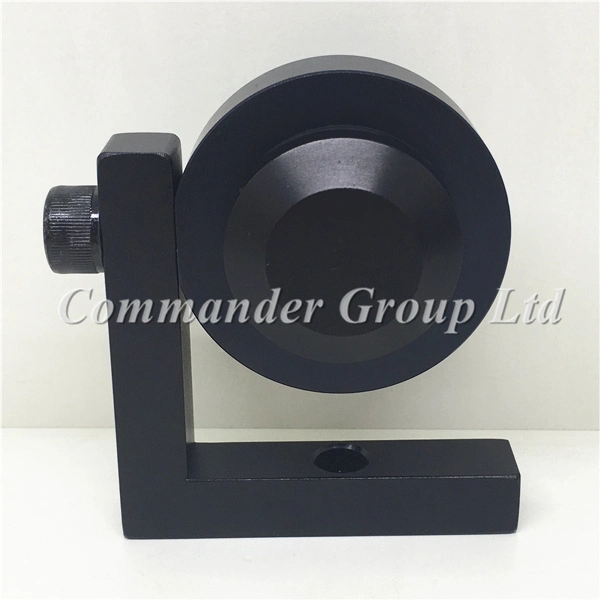

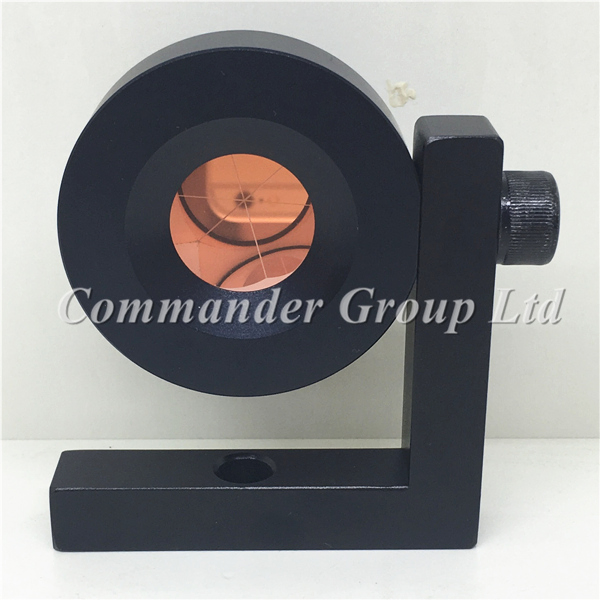

Leica GMP104 Monitoring Mini Prism Target with L-Bar
LEICA GMP104 Monitoring Mini Prism Target with L-BarFeatures:Mini monitoring prism mounted in metal holder. Supplied with L-bar for fixed installations. The prism offset is dependant on the mounting position. Range 2,000m (7,000ft).Specification:Manufacturer ID641762ManufacturerLeica GeosystemsShape......
Send Inquiry
Product Description
Features:
Mini monitoring prism mounted in metal holder. Supplied with L-bar for fixed installations. The prism offset is dependant on the mounting position. Range 2,000m (7,000ft).
Specification:
| Manufacturer ID | 641762 |
|---|---|
| Manufacturer | Leica Geosystems |
| Shape | Circular |
| Diameter | 1" (25.4 mm) |
| Type | Copper coated |
| Onboard Circular Bubble | No |
| Holder/Assembly | L-Bar |
| Constant/Offset | +8.9 mm |
| Holder Height | 60 mm |
| Holder Material | Metal |
| Available Holder Color(s) | Black |
| Accessories | L-Bar |
| Range | 6500 ft (2000 m) |
Business Introduction:
We are a professional supplier of survey accessories.
Survey accessories including retroreflector, Prism in Canister , Prism with Target , Mini Prisms , 360 Degree Prism , Tribrachs and Carriers , Prism Kits , Prism Poles , Reflector Pole , Tripods , Levelling Staffs and Surveying Instruments , which are widely used in the surveying, mapping and construction industries, such as Tunnel, Subway Project, Bridge Engineering, Construction, Routine measurements, Slope Monitoring, Ships measurement, Three-dimensional laser scanning, Close-range photogrammetry, Special measurement, Instrument calibration, etc.
We carry out strict quality control according to ISO 9001 quality management system.
Excellent products have been sold to many countries and areas, we have a long term cooperation relationship with America, Europe Union, Asia, Africa and Middle East countries. Our customers are included LEICA, TOPCON and so on.
Product:

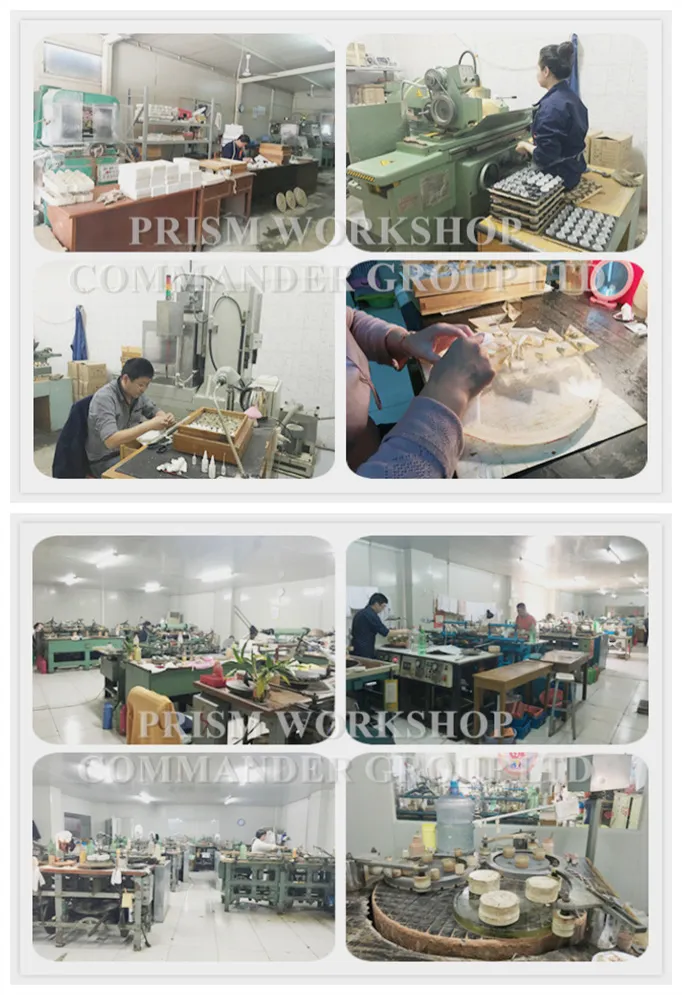

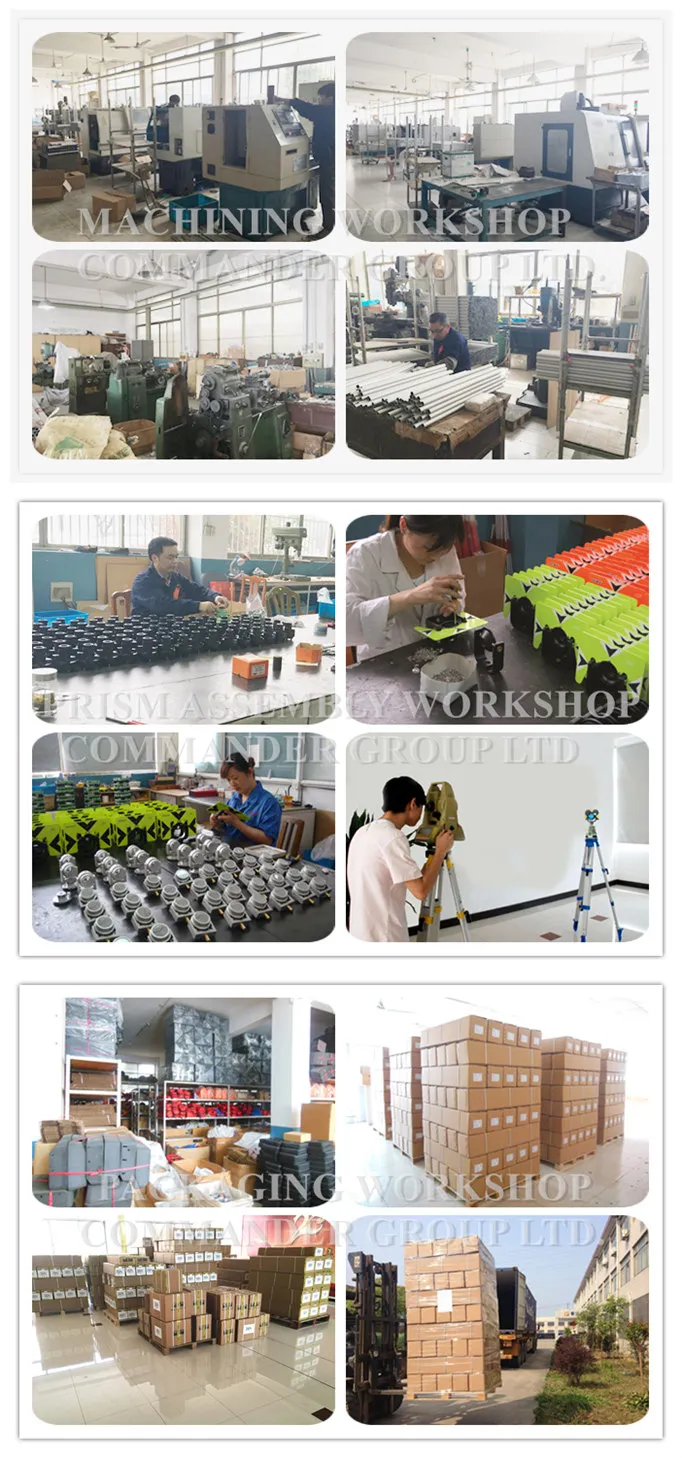

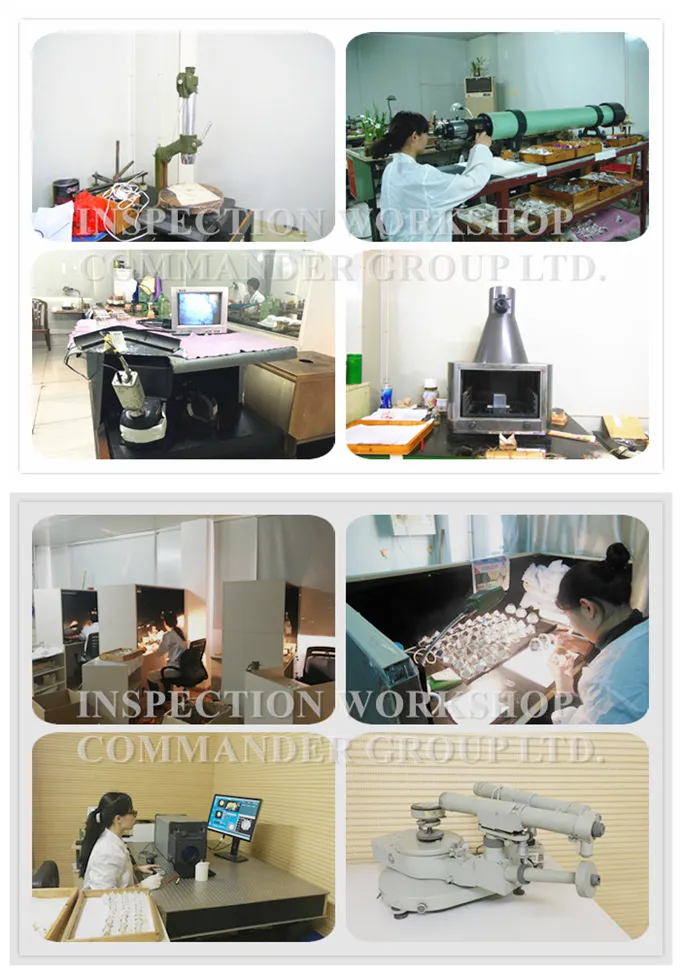

Workshop Show:
