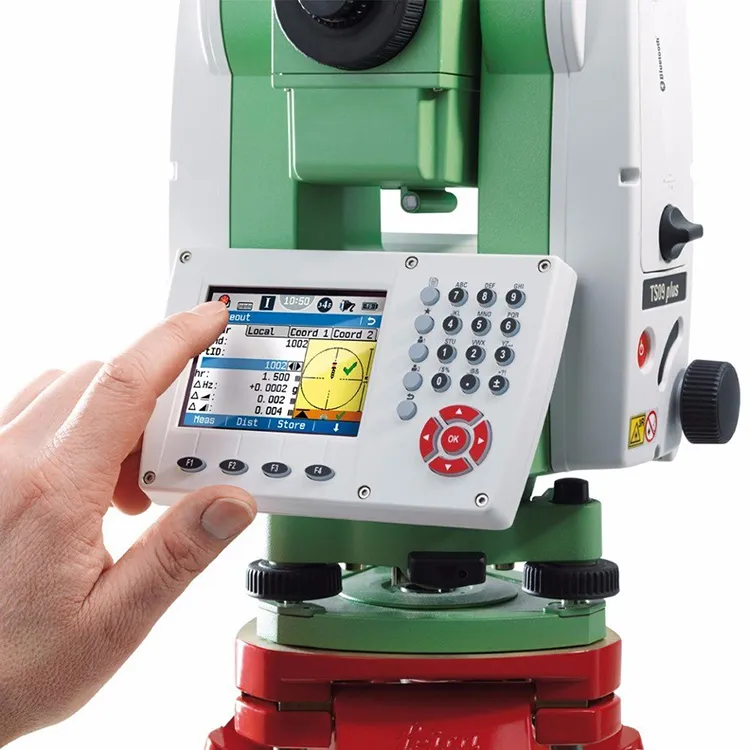

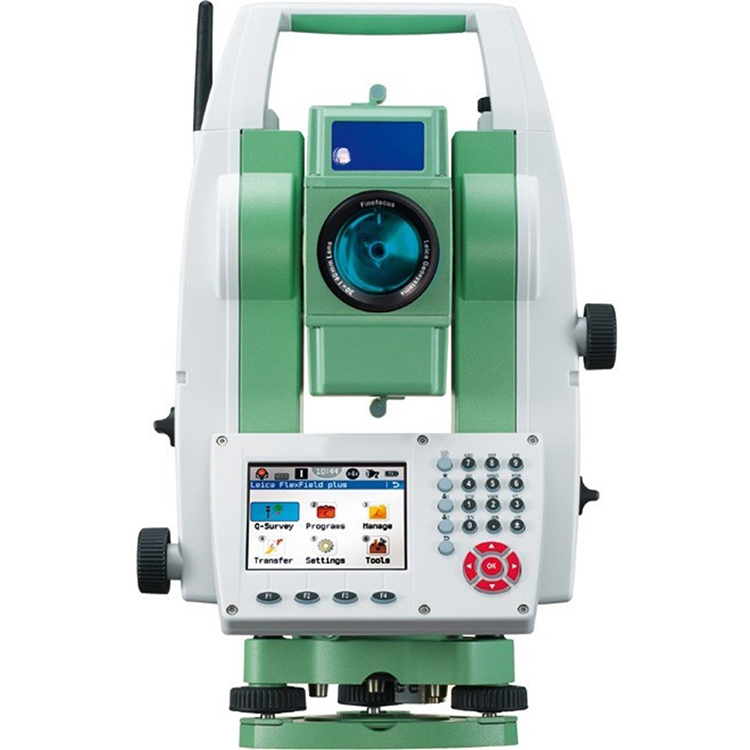

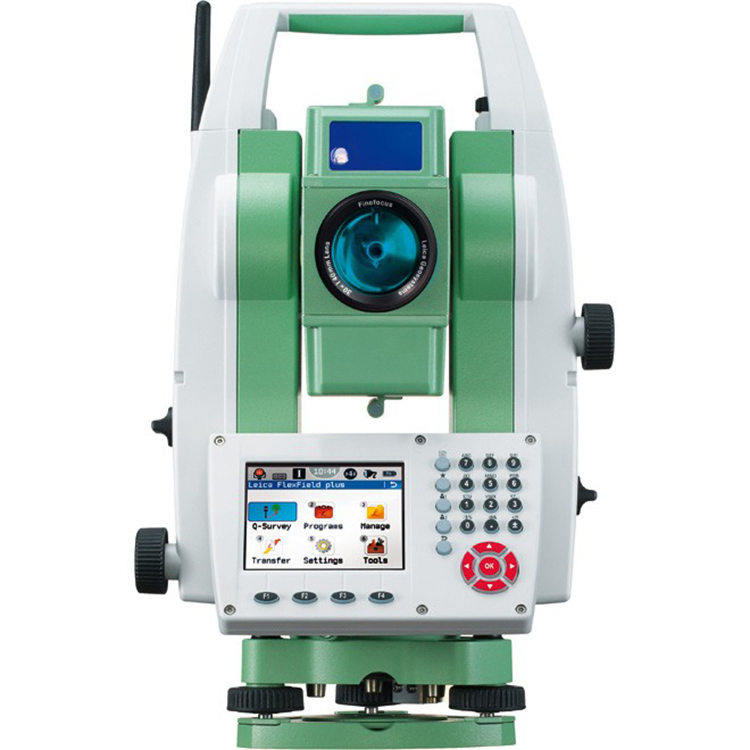

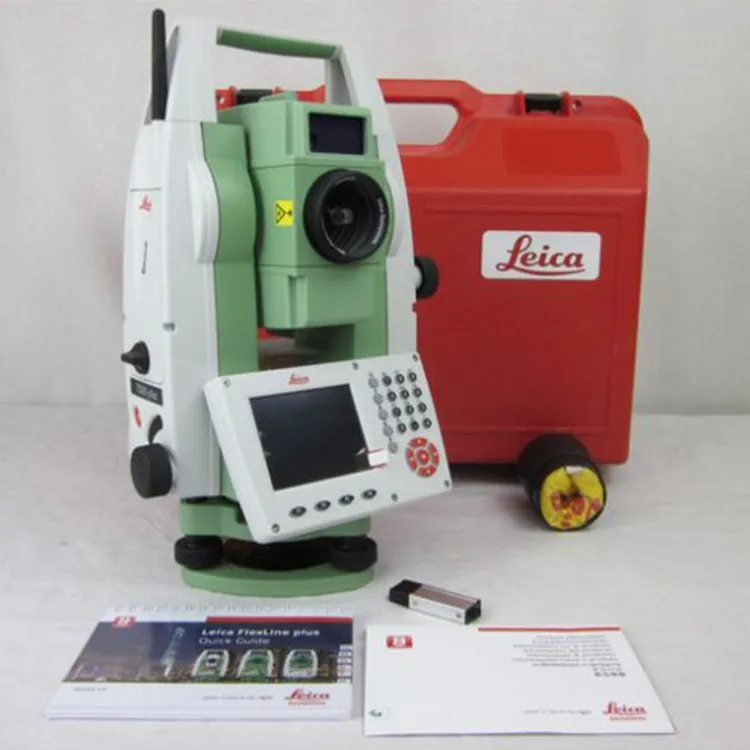

Total Station Leica Ts09 1

Product Description

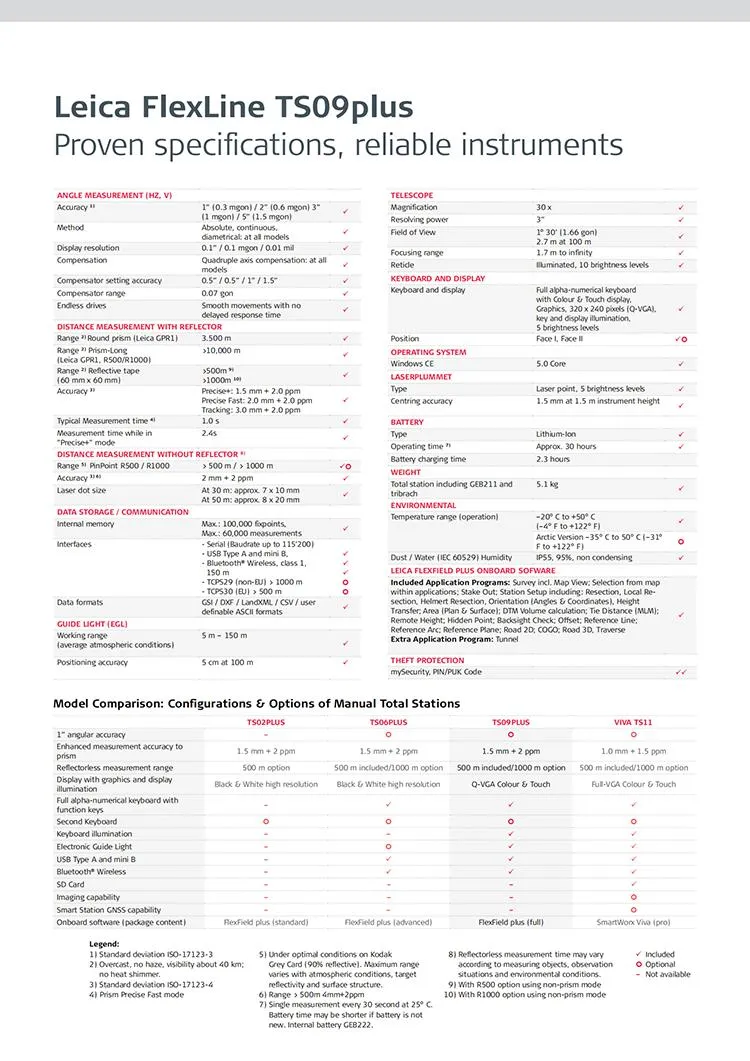

Leica FlexLine TS09 specifications

Measurement - Angle
Method	Absolute, diametrical, continuous
Resolution Display	0.1"
Compensation	Quadruple Axis
Accuracy - Compensator Setting	0.5" / 0.5" / 1" / 1.5" / 2"

Distance Measurement using Reflector
Range - Round prism	3500 metres
Range - Reflective tape	> 500 metres > 1000 metres
Range - Prism-Long	> 10000 metres
Measurement Time (typical)	1second

Distance Measurement no using Reflector
Range - PinPoint R500 / R1000	> 500metres / > 1000metres
Accuracy	2mm + 2ppm
Laser dot size	At 30metres, approximatley 7 x 10millimetres

Data Communication / Storage
Built in memory	100000 fixpoints, 60000 measurements
Interfaces	USB Type A & mini B Bluetooth

Guide Light
Range Working	5metres to 150metres
Accuracy Positioning	5centimetres at 100metres

Telescope
Magnification	30x
Resolving power	3"
Field of View	1° 30" 2.7metres at 100metres
Focusing range	1.7metres to infinity
Reticle	Illuminated display and 10 levels of brightness

Keyboard & Display
Display and Keyboard	Full Alpha numeric with colour and touch screen, Q-VGA, graphics, 5 brightness levels and display illumination,

Laserplummet
Type	Laser point 5 levels of brightness
Centering accuracy	1.5 mm at 1.5metres

Battery
Type	Lithium-Ion
Operating time	Approximatley 30hrs

Weight
Total station	5.1 kg

Environmental
Operating Temperatue	-20° C to +50° C
	Arctic Type - 35°C to 50°C
Water / Dust	IP55 Rating
