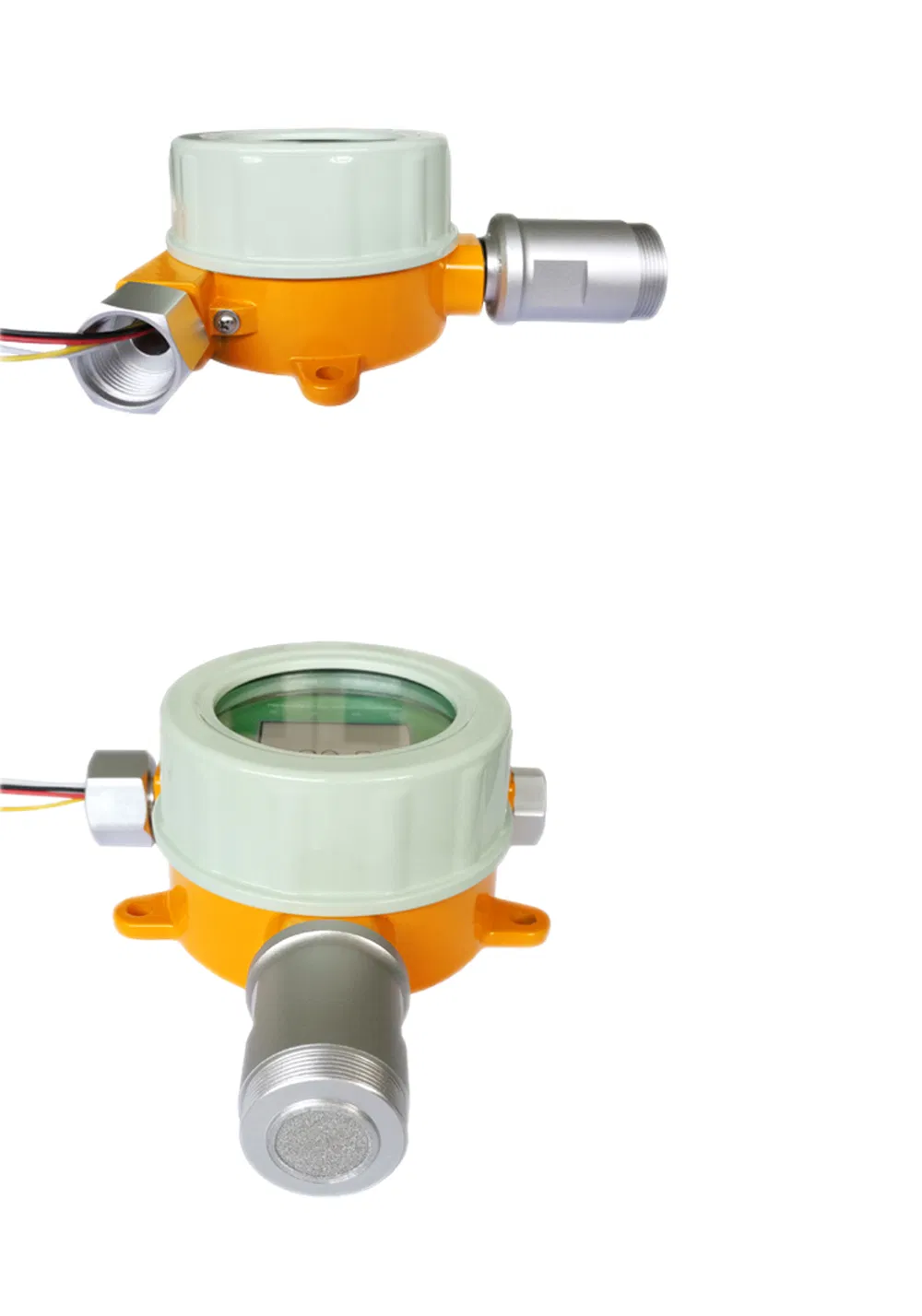

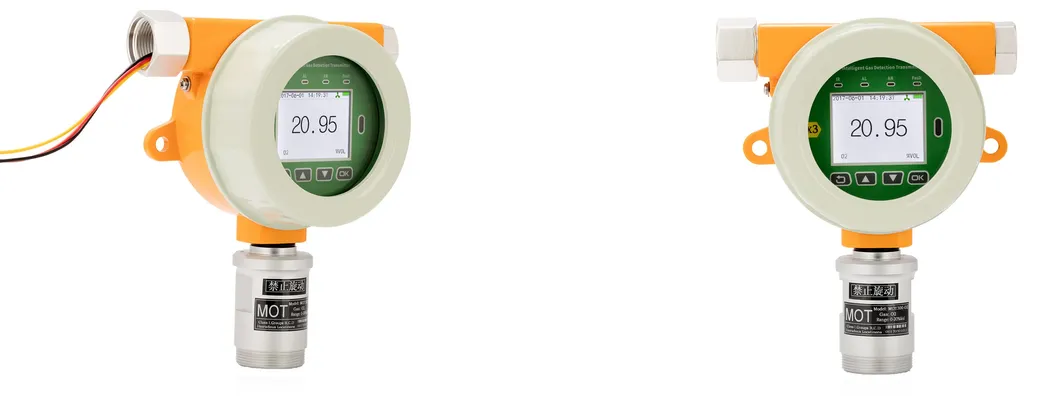

SGS/Ce Approved IP65 Propane Gas Meter (C3H8)
1) Key Feature 1.Three concentration units are available PPM,%VOL,mg/m3 2.Variety signal output model : (1) 4-20mA signal :Standard 16bit 4-20mA output chip, transmission distance 1Km (2) RS485 signal: Standard MODBUS RTU protocol, transmission distance 2Km (3) 2 r......
Send Inquiry
Product Description
1) Key Feature
1.Three concentration units are available PPM,%VOL,mg/m3
2.Variety signal output model :
(1) 4-20mA signal :Standard 16bit 4-20mA output chip, transmission distance 1Km
(2) RS485 signal: Standard MODBUS RTU protocol, transmission distance 2Km
(3) 2 relays output: Concentration alarm value adjustable
(4) 0-5V,0-10V output (optional)
3. Variety signal transmission are available :3-4 core cable,Optical fiber network,Network cable,3G transmission,Wireless transmission,Video transmission
4. All software automatic calibration
5. Chinese and English operation model are available,user friendly ,four buttons to operation
6. Following function are optional:Temperature,Humidity sensor,Audible and visual alarm
2) Specifications
3) F&Q:
Q1:Can I have a sample order?
A1: The sample order to test are welcomed at the first time.
Q2:How about your production capacity and quality control?
A2:We have written instructions for incoming material&finished products inspections and testing.All the finished products will be 100% inspection and all the non-conforming units will be clearly marked and segregated to repaired and re-inspection.
Q3:How can I get a good price?
A3:We are 100% sure that we can provide you high value with competitive price and please attach your detailed request, application place, order quantity, delivery mode,payment terms to the inquiry mail ^ ^
4) Contact US:
1.Three concentration units are available PPM,%VOL,mg/m3
2.Variety signal output model :
(1) 4-20mA signal :Standard 16bit 4-20mA output chip, transmission distance 1Km
(2) RS485 signal: Standard MODBUS RTU protocol, transmission distance 2Km
(3) 2 relays output: Concentration alarm value adjustable
(4) 0-5V,0-10V output (optional)
3. Variety signal transmission are available :3-4 core cable,Optical fiber network,Network cable,3G transmission,Wireless transmission,Video transmission
4. All software automatic calibration
5. Chinese and English operation model are available,user friendly ,four buttons to operation
6. Following function are optional:Temperature,Humidity sensor,Audible and visual alarm
2) Specifications
| Product Type: | Online,Propane(C3H8) | |||
| Sensor: | Infrared Gas sensorI | |||
| Detection Pattern: | Diffusion,pipeline(screw thread size:M40*1.5MM),Circulation,Pumping is available,Online detection | |||
| Detection Range: | 0-5000,10000,20000ppm;0-20%,50%,100%VOL | |||
| Resolution: | 1ppm(0-20000ppm),0.01%VOL(0-100%VOL) | |||
| Detection Accuracy: | ≤±3%F.S | Linearity error: | ≤±1%F.S | |
| Reaction Time: | ≤20S(T90) | Zero drift: | ≤±1%(F.S/Year) | |
| Recovery Time: | ≤20S | Repeatability: | ≤±1%F.S | |
| Relay output: | Two relays output,Contact rating:24VDC 3A/220VAC 3A | |||
| Explosion Proof Sign: | ExdII CT6,Certification Number of Explosion-proof :CNEx10.1807 | |||
| Outputs: | Analog:4-20mA signal,0-5V,0-10V Modbus: RS485 signal Pulse signal or TCP/IP signal,optional | |||
| Alarm Setting: | Two alarm set points Alarm mode optional: Low alarm-High alarm / High alarm-High alarm / Low alarm-Low alarm | |||
| Controllers: | Compatible with DN3000/DN9000,as well as most DCS/PLC systems | |||
| IP Rating : | IP65 | |||
| Material: | Aluminum ,Explosion and corrosion proof | Connection: | 3/4″NPT,1/2″NPT | |
| Dimensions: | 200×160×80mm(L×W×H) | Weight: | 1.5 Kg(Net weight) | |
| Operating Temperature: | -30 ~ 60ºC | Relative Humidity: | ≤90%RH,Non-condensing | |
| Operating Pressure: | 0 ~ 200Kpa | Operating Voltage: | 24VDC(9~30VDC) | |
3) F&Q:Q1:Can I have a sample order?
A1: The sample order to test are welcomed at the first time.
Q2:How about your production capacity and quality control?
A2:We have written instructions for incoming material&finished products inspections and testing.All the finished products will be 100% inspection and all the non-conforming units will be clearly marked and segregated to repaired and re-inspection.
Q3:How can I get a good price?
A3:We are 100% sure that we can provide you high value with competitive price and please attach your detailed request, application place, order quantity, delivery mode,payment terms to the inquiry mail ^ ^
4) Contact US:
