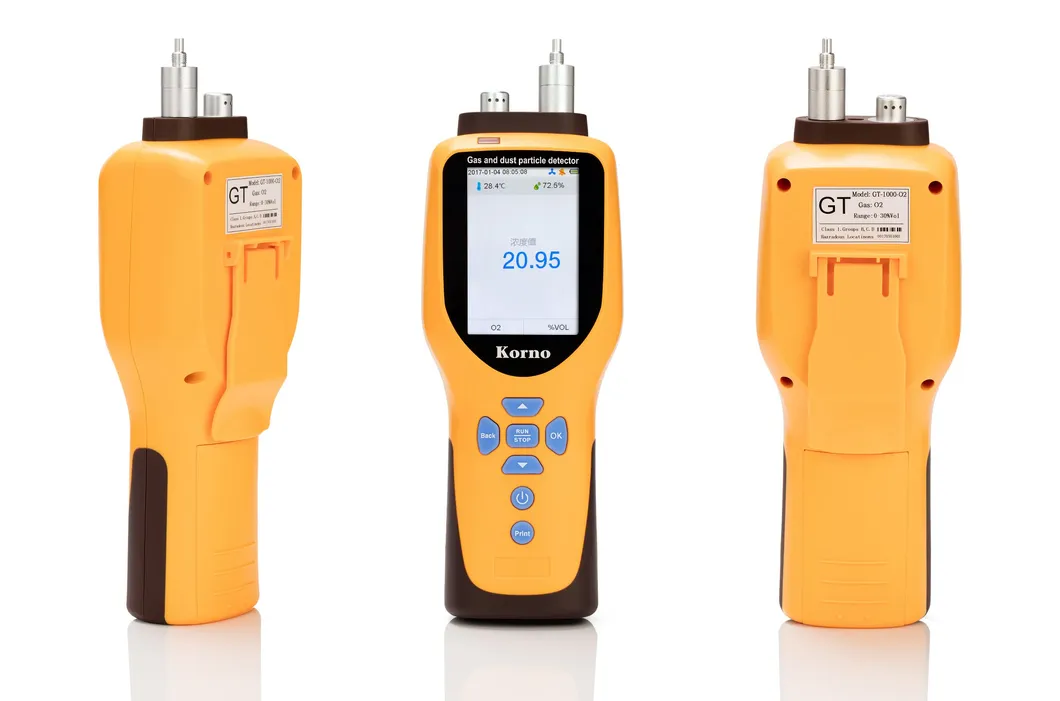

Portable Multi Gas Analyzer 5 in 1 with Temperature&Humidity Detect Function
1) Description: GT-1000 series multifunctional gas detector can be configure flexibly up to 5 gas sensors or 3 gas sensors plus 1 dust sensor,and can simultaneously detect temperature and humidity of the sample gas. With a large capacity data logging-system included as standard,user can view ......
Send Inquiry
Product Description
1) Description:
GT-1000 series multifunctional gas detector can be configure flexibly up to 5 gas sensors or 3 gas sensors plus 1 dust sensor,and can simultaneously detect temperature and humidity of the sample gas.
With a large capacity data logging-system included as standard,user can view concentration data,save data.output data,print and output data,detect temperature and humidity level.
2) Features:
3) Specifications:
4) Sensor List(partial ones listed only):
NOTE:Price depends on the quantity you requested and the detection range you need,please contact us for confirmed!
5)Contact US:
GT-1000 series multifunctional gas detector can be configure flexibly up to 5 gas sensors or 3 gas sensors plus 1 dust sensor,and can simultaneously detect temperature and humidity of the sample gas.
With a large capacity data logging-system included as standard,user can view concentration data,save data.output data,print and output data,detect temperature and humidity level.

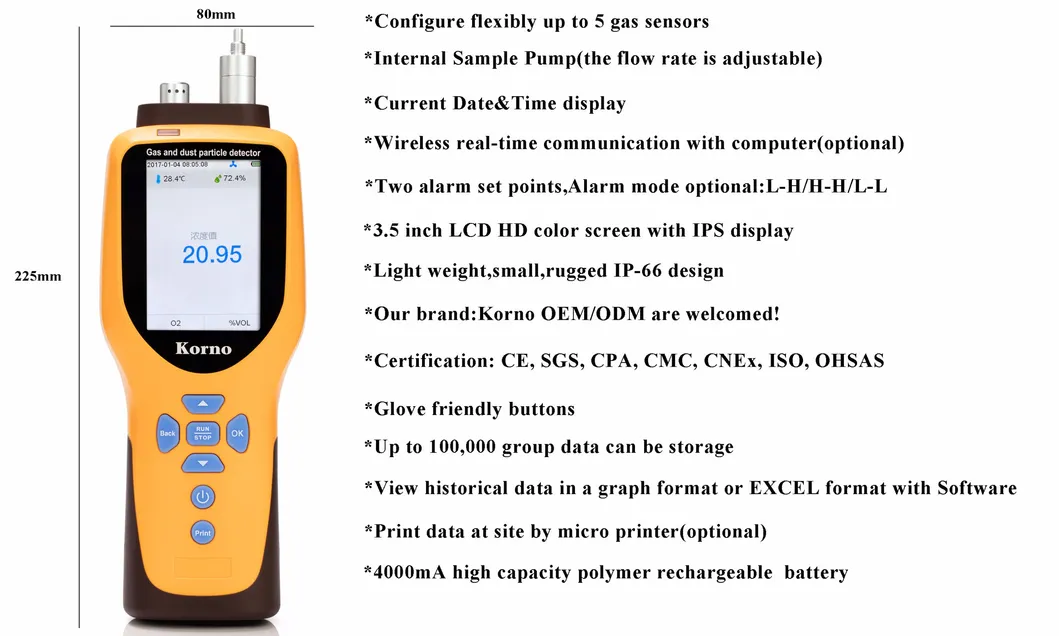

2) Features:
3) Specifications:
| Product type: | Multi-Gas handhold detector with alarm | |||
| Detection Range: | Based on the gases you choose | |||
| Resolution: | Based on the gases you choose | |||
| Scalable gas sensor : | User can customize up to 5 gas sensors in any combination,please refer to the sensor parameters | |||
| Dust sensor : | Laser dust sensor (0.3um/0.5um,1.0um,2.5um,10um) | |||
| Temperature and humidity: | Temperature detection range:-40 ~ 120ºC Humidity detection range:0-100%RH | |||
| Detection pattern: | Pumping,the flow rate is adjustable. | |||
| Detection Method: | Real-time detection mode and timing detection,Cycle detection mode mode can be switch freely | |||
| Storage Method: | Automatically saving and manually saving is available, Up to 100,000 group data ,user can view history data on the display. | |||
| Explosion Proof Sign: | Exdll CT4 (IA) | Shell Case material: | ABS+PC | |
| IP rating: | IP66 | Operating Temperature: | -30 ~ 60ºC(-22~144ºF) | |
| Power: | 4000mA high capacity polymer rechargeable battery | Relative Humidity: | ≤90%RH,Non-condensing | |
| Dimensions / Weight: | 255*80*60mm(L×W×H) 0.5 Kg(net weight) | Operating Pressure: | -30Kpa ~ 100Kpa | |
4) Sensor List(partial ones listed only):
| Gas | Detection Range | Resolution: |
| Combustible Gas(EX) | 0-100%LEL | 0.1%LEL |
| Carbon Monoxide(CO) | 0-100,500,1000,2000,5000,10000,40000ppm | 0.1ppm(0-1000ppm),1ppm(0-40000ppm) |
| Hydrogen Sulfur(H2S) | 0-50,100,500,1000ppm | 0.01ppm(0-100ppm),0.1ppm(0-1000ppm) |
| Ammonia(NH3) | 0-50,100,500,1000ppm | 0.01ppm(0-100ppm),0.1ppm(0-1000ppm) |
| Oxygen(O2) | 0-5000,10000,30000ppm,5%,30%,100%VOL | 1ppm(0-30000ppm),0.01%VOL(0-100%VOL) |
| Hydrogen(H2) | 0-500,1000,5000,20000,40000ppm | 0.1ppm(0-1000ppm),1ppm(0-40000ppm) |
| Carbon Dioxide(CO2) | 0-2000,5000,10000,50000ppm,20%,50%,100%VOL | 1ppm(0-50000ppm),0.01%VOL(0-100%VOL) |
| Phosphine(PH3) | 0-100,500,1000,2000ppm | 0.01ppm(0-100ppm),0.1ppm(0-1000ppm),1ppm(0-2000ppm) |
