Product Description

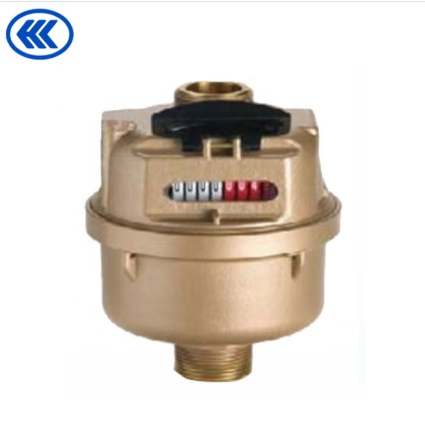

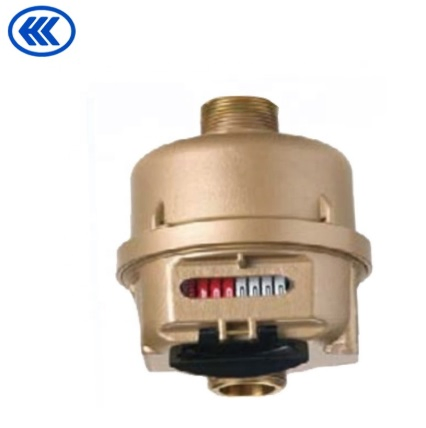

Dry Dial Multi-jet Bronze/Copper water meter
Model: LXS-15E ~25E
Application: Measuring the volume of cold potable water passing through the pipeline
Technical Standards: GB/T 778.1~778.3-2007, JJG 162-2009
FEATURES:
1. Volumetric meter, on principle of piston rotation, complies with ISO 4064 Class C or Class D standard
2. High sensitivity, accurate measurement even at low flow rate of 4L/h.
3. Optimum accuracy and performance at all times, in any position
4. Piston adopts high quality material to ensure stable and durable performance
5. Liquid-sealed register, easy and long term clear reading
Technical data:
| Items | Contents |
| water temperature | 0.1ºC-30 ºC |
| working pressure | 1.0MPa |
| Head Loss | 0.063MPa |
| Max. Permissive Error | upper zone (Q2≤Q≤Q4): ±2%; low zone(Q1≤Q |
| DN mm | Q3 m 3 /h | Q3/Q1 | Q2/Q1 | ||||
| 15 | 2.5 | 100 | 80 | 63 | 1.6 | ||
| 20 | 4 | 100 | 80 | 63 | 1.6 | ||
| 25 | 6.3 | 100 | 80 | 63 | 1.6 | ||
Basic Data:
| DN | Length L | Length L1 | Width B | Height H | Connecting Threads | |
| mm | d | D | ||||
| 15 | 259 | 165 | 95 | 110 | R1/2 | G3/4B |
| 20 | 300 | 195 | 95 | 110 | R3/4 | G1B |
| 25 | 344 | 225 | 102 | 112 | R1 | G1 1/4B |
