China Volumetric Displacement Type Water Meters

Product Description

Specifications for Kent water meters in plastic and brass material for option

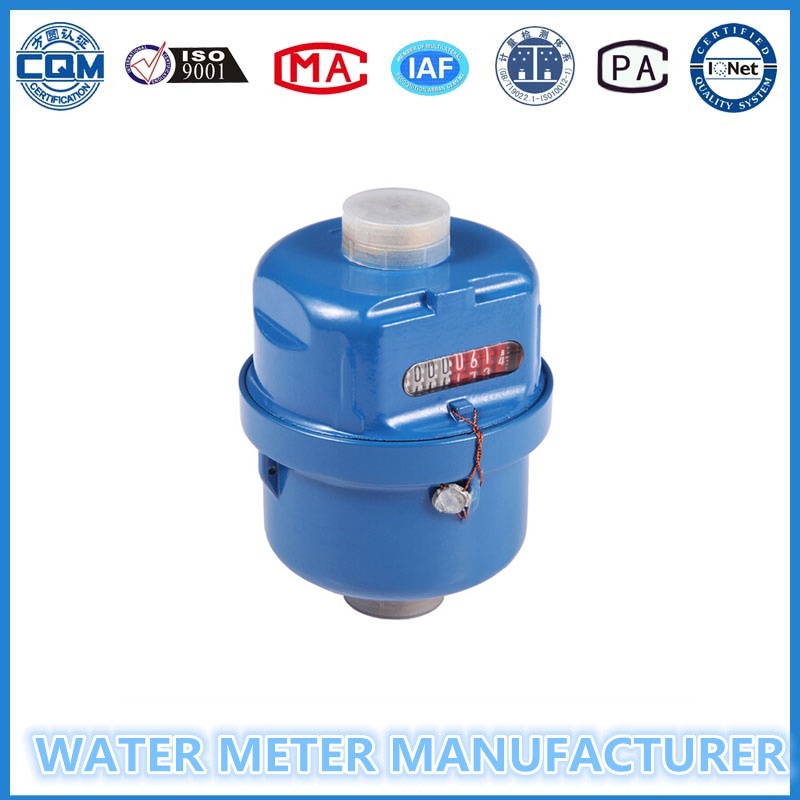

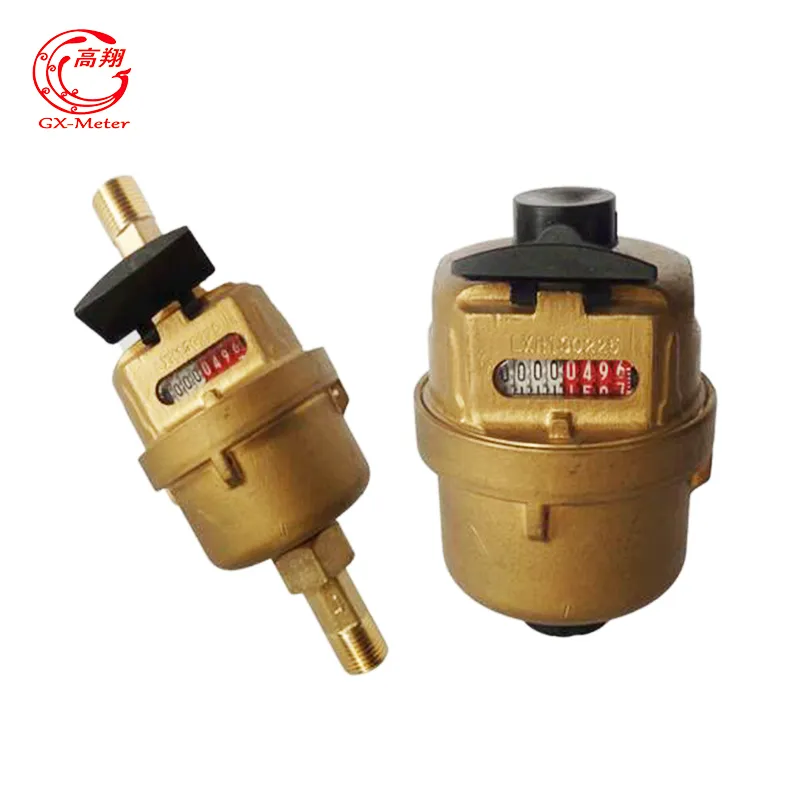

Volumetric Rotary Piston Type Water Meter ,brass /cast iron /nylon material for option ,can also equipped with Pulse output
Volumetric Displacement Type Water Meters

Volumetric Displacement Type Water Meters

Application
Measuring the volume of cold potable
water passing through the pipeline
Work conditions
Water temperature : ≤ 40°C
Water pressure : ≤1.6 Mpa, ≤1.0 Mpa

Features
1. Ensures high sensitivity and accurate registration throughout a wide flow range.
2. Low starting flow rate and excellent metrological performance.
3. Magnetic drive , lower transimission resistance.
4. Sealed dry dial register ensures clear reading.
5. Internal strainer, inlet strainer for selecting.

Compliance with standard
1 Technical data conforms to ISO 4064 Class C
Standard for horizontal installation

Options
1. Several lengths ,different materials of shell and connections available on request.
2. Can be equipped with reed switch option.
Installation requirements
1. The meter can be installed in any position.
2. Pipeline must be flushed before installation
3. The meter shoule be constantly full of water during operation.

Type	Size (mm)	Class	qs Max.Flow	qp Nominal Flow	qt Transitional Flow	qmin Min. Flow	Min.Reading	Max.Reading
			m3/h		L/h		m3
LXH-15A	15/18	C	3	1.5	22.5	15.0	0.0001	9999
		D			17.25	11.25
LXH-20A	20	C	5	2.5	37.5	25	0.0001	9999
		D			28.75	18.75
LXH-25A	25	C	7	3.5	52.5	35	0.0001	9999
		D			40.25	26.25

Type	Length	Width	Connection Thread	Weight (kg)
LXH-15A	115/165/170	86/88	G3/4B	0.85/1.1/1.2
LXH-20A	134/165/190	90	G1B	1.3/1.6/1.8
LXH-25A	200	106	G1 1/2B	2.5

Why you choose us - Gaoxiang Water Meter Co.,LTD ?

MOQ:
We could accept your trial order,then you can take this opportunity to check the quality of our products & service of our company
Logo:
Buyer's logo imprint accepted
Sample Policy:
We can supply you sample for checking quality,if you pay for the sample & sample freight. we will deliverto you in 1-3 days after we got your payment.
Lead time:
The normal Lead time is 15-30 days , which depends on your quantity.
Payment terms:
L/C, T/T, Western Union, MoneyGram, Paypal.
Shipping:
We can arrange the shipping by Courier ( DHL, UPS, Fedex , TNT etc. ), by air or by sea for you.
Please tell us which shipping way that you want and your detailed address, your nearest airport or seaport.
List Of Competitive Advantage:
We are factory, can provide you high quality, best price
Professional employee and effective management
Professional trading service
Prompt delivery
Good service & reputation

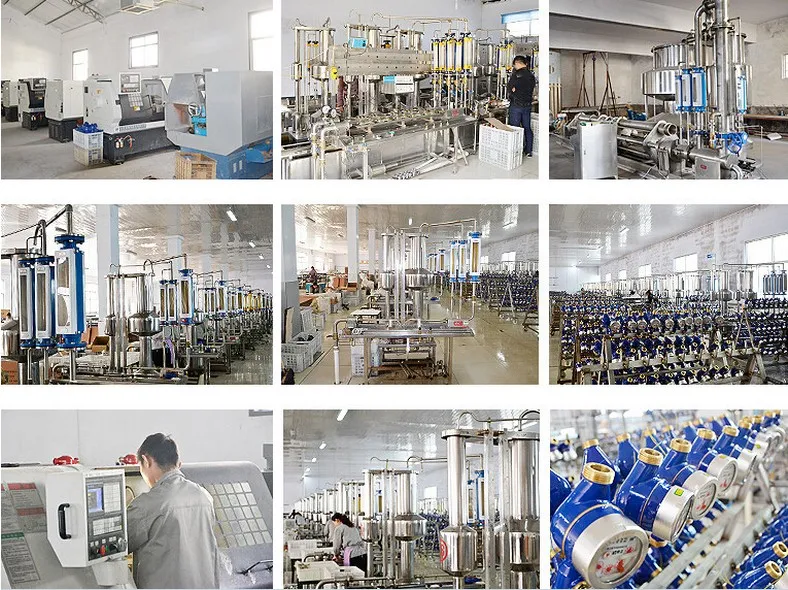

Large production line

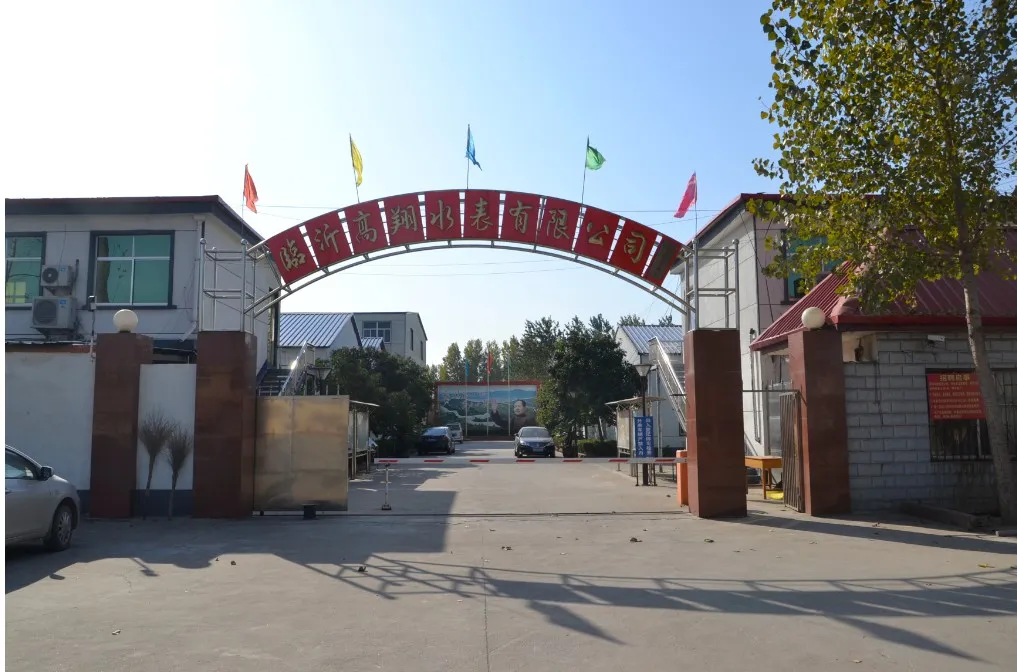

Welcome to visite our factory

Volumetric Displacement Type Water Meters
