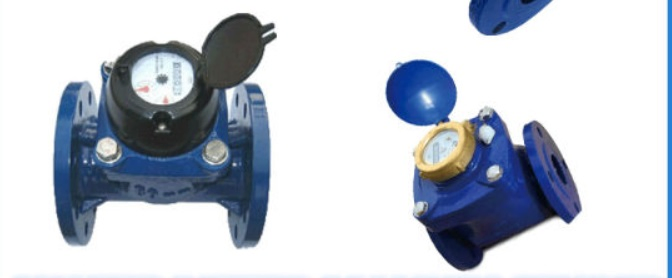

Horizontal Detachable Woltman Water Meter

Product Description

Functions:

1.Flow Rate Performance: Basic meter technology and production craft comes from German. The special degisn ensures the sensitivity of Low District and current performance of High District of water meter. Model WS Vertical Woltman Large Caliber Water Meter concentrates the advantages of Horizontal Woltman Water Meter and Rotating Vane Water Meter. Adopting full flow detection, the measured water flow is axial water flow, low in and out, high measurement accuracy. Especially at low flow rate, precision is higher than other types of water meters. Stainless steel built-in filter design ensures the product can work stable and long life. WPHD model is suited for strong flow rate with U0 and D0 highest standard. Inner cavity can control water flow and reduce the accuracy affected by elbow, T type pipe, water filter and valve;
2.Ingress Protection: Using advance copper sealing technology to ensure water meter will be affected with damp. Ingress protection is IP68;
3.Correct Reading Data: Adopting Infrared photoelectric transmission to get data which will not be affected by light and vibration caused by pipe or other elements;
4.Safe Use: The strong electric power source is physically separated from the water meter, and the insulation strength is high to ensure safe use;
5.Reading Accuracy: The sensor is non-magnetic and non-contact which will not affect the accuracy of original water meter;
6.Remote Transmission: Using M-bus and RS485 port to transmit data. Thers is no battery inside water meter. Short time power is provided by collector when meter reading is needed;
7.Easy to Maintain:The electromechanical conversion module adopts the plug-in design, which can be installed separately from the water meter. The module has strong versatility and is fully interchangeable. It can be transplanted between two water meters;
8.Strong Compatibility: Support a variety of standard communication interface output, easy and fast access to a variety of management scheduling systems.

Spec for Horizontal(Vertical):

Item	Unit	Parameter
DN	mm	50	65	80	100	125	150
Q4	m³/h	78.75(50)	78.75(50)	125 (78.75)	200(125)	200 (-)	500 (312.5)
Q3	m³/h	63 (40)	63 (40)	100 (63)	160(100)	160 (-)	400 (250)
Q2	m³/h	0.63(1.26)	0.63(1.26)	1 (1.98)	1.6 (3.15)	1.6 (-)	4 (7.88)
Q1	m³/h	0.394(0.2)	0.394(0.2)	0.625(0.32)	1 (0.5)	1 (-)	2.5 (1.25)
Q3/Q1		≥160(≥200)
Q2/Q1		1.6
Minimun Reading Digits		0.005					0.005
Maximum Reading Digits		999999					9999999
Working Water Temperature		-30°C ~ 50°C
Maximum Working Pressure		≤1.0MPa or ≤1.6MPa

Installation Size&Diagram and Weight
Horizontal Detachable Woltman Water Meter

Model	DN	L (mm)	H (mm)	>G(mm)	Weight(KG)	Flange Connection(GB/T 1724.6-1198)
Model	DN	L (mm)	H (mm)	>G(mm)	Weight(KG)	D(mm)	D1(mm)	Number of unilateral bolts and diameter
Horizontal Type	50	200	210	236	10.6	165	125	4-φ19
	65	200	218	236	11.6	185	145	4-φ19
	80	225	280	341	16.3	200	160	4/8-φ19
	100	250	290	341	17.8	220	180	8-φ19
	125	250	310	341	21.6	250	210	8- φ19
	150	300	320	341	31.5	285	240	8-φ23
	200	350	364	358	46	340	295	8/12-φ23
Vertical Type	50	280	228	262	14.5	165	125	4-φ19
	65	300	238	262	16.8	185	145	4-φ19
	80	370	290	361	29	200	160	4/8-φ19
	100	370	306	380	31	220	180	8-φ19
	150	500	445	607	78	285	240	8-φ23
	200	500	564	720	120	340	295	8/12-φ23
