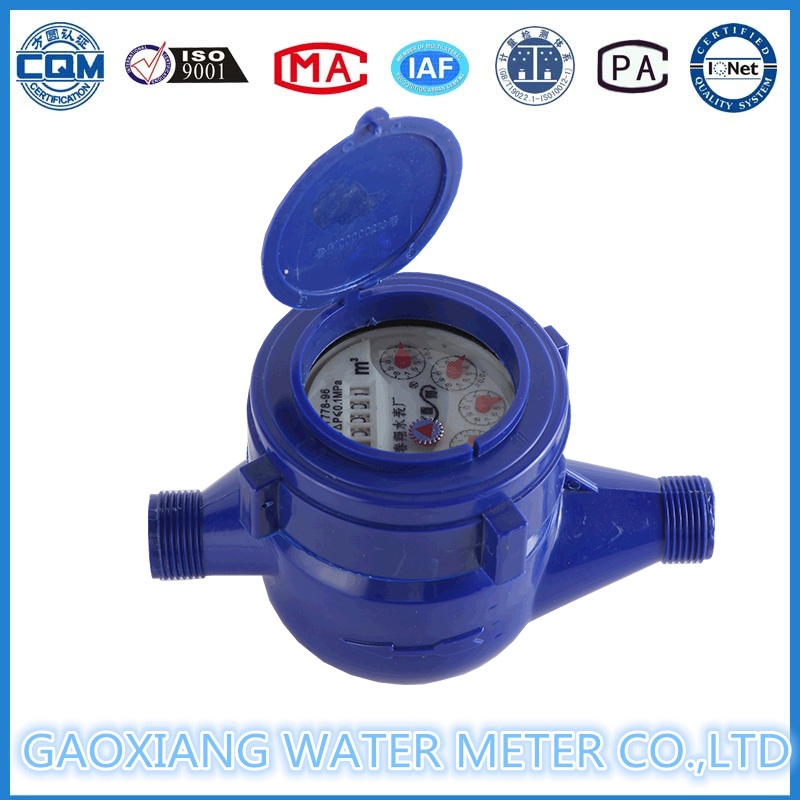

Higt Measuring and Low Price Plastic Wet Dail Cold Water Meter

Product Description

Application:
--Measuring the total volume of cold portable water passing through the pipeline.
Feature:
--Multi-jet, dry-dial,plastic ABS plastic body,class b,easy for maintenance;
--Magnetic drive reliable characteristic, long working life;
--Vacuum sealed register ensures the dial keep free from fog and frost, Keep the reading clear in a long term service;
-- Technical data conform to international standard ISO4064 Class B
5. according to customer demand, the additional output device in remote water meter, you can design and produce different pulse equivalent and signaling components based on customer needs remote meter transmission pulse signal, 1 / 10L, 1 / 10L, 1/100 .
Higt Measuring and Low Price Plastic Wet Dail Cold Water Meter

Higt Measuring and Low Price Plastic Wet Dail Cold Water Meter

Working condition:
Water temperature: 0.1ºC~40ºC for cold water meter .
0.1ºC~90ºC for hot water meter.
Water pressure: ≤1.0Mpa or1.6Mpa

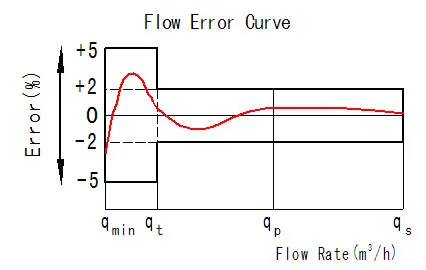

Maximum permissible error:
(1) in the lower zone from qmin inclusive up to but excluding qt is ±5%.
(2) in the upper zone from qt inclusive up to and including qs is ±2%;
Hot water meter ±3%
MAIN TECHNICAL SPECIFICATIONS

Nominal size DN (mm)	Class	Maximum flow-rate Qmax(m3/h)	Nominal flow-rate Qn(m3/h)	Transitional flow-rate Qt(l/h)	Minimun flow-rate Qmin (l/h)
15	B	3	1.5	120	30
20	B	5	2.5	200	50
25	B	7	3.5	280	70
32	B	12	6	480	120
40	B	20	10	800	200
50	B	30	15	3000	450

Overall dimensions and weight

Type	Size (mm)	Length (mm) L	Width (mm) W	Height (mm) H	Connecting Thread D	Weight (kg)
LXS-15E	15	165	80	100	G 3/4"B	1.1
LXS-20E	20	190	98	105	G 1"B	1.7
LXS-25E	25	220	105	110	G 1 1/4"B	2.4
LXS-32E	32	260	120	120	G 1 1/2"B	2.8
LXS-40E	40	300	120	155	G 2"B	5.2
LXS-50E	50	300	125	155	G 2 1/2"B	7.3
