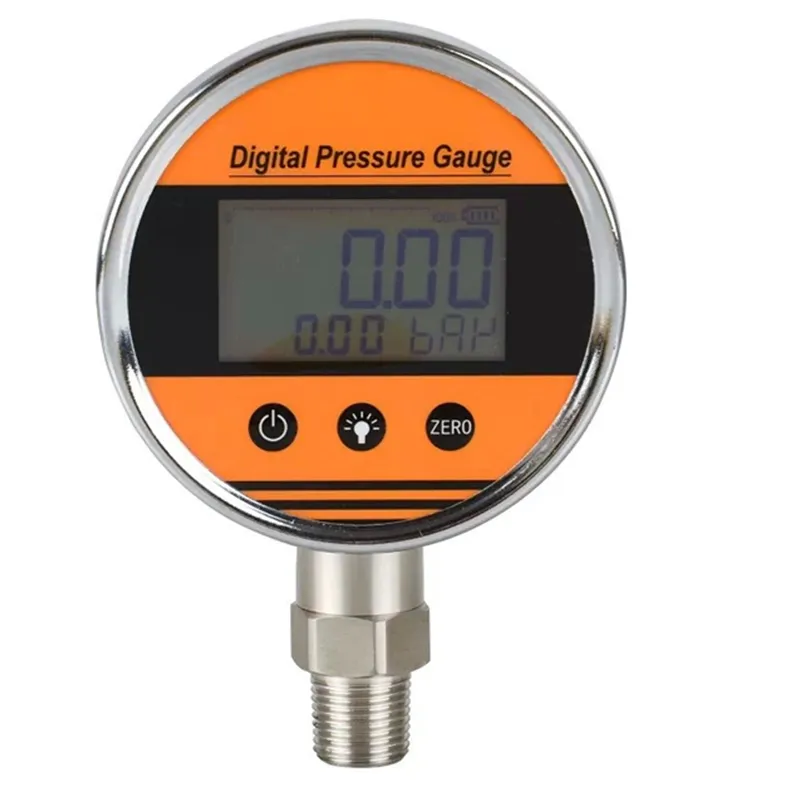

China Gas Water Digital Pressure Transmitter 304 Stainless Steel Pressure Gauge Meter Qdb118
OverviewDigital pressure gauge is full electronic-structure and battery-powered, which make it very easy for on-site installation. Specifically, a high-precision piezo-resistive pressure sensor is used and the output signal is processed by the high-precision, low temperature drifting amplifier, then......
Send Inquiry
Product Description
Overview

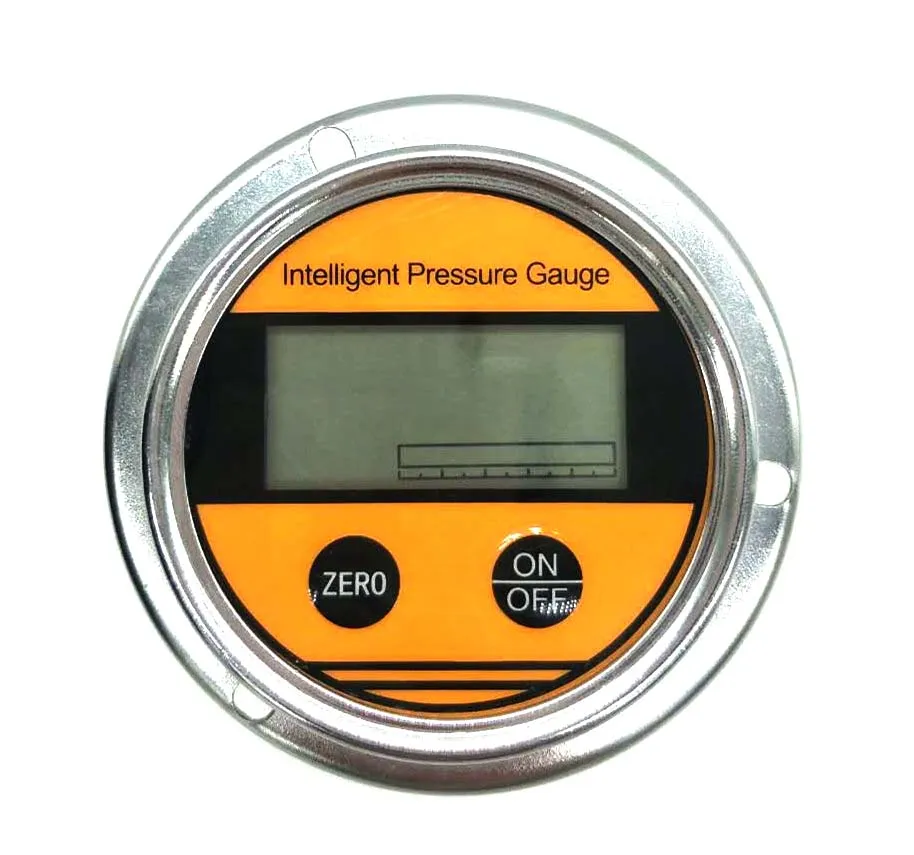

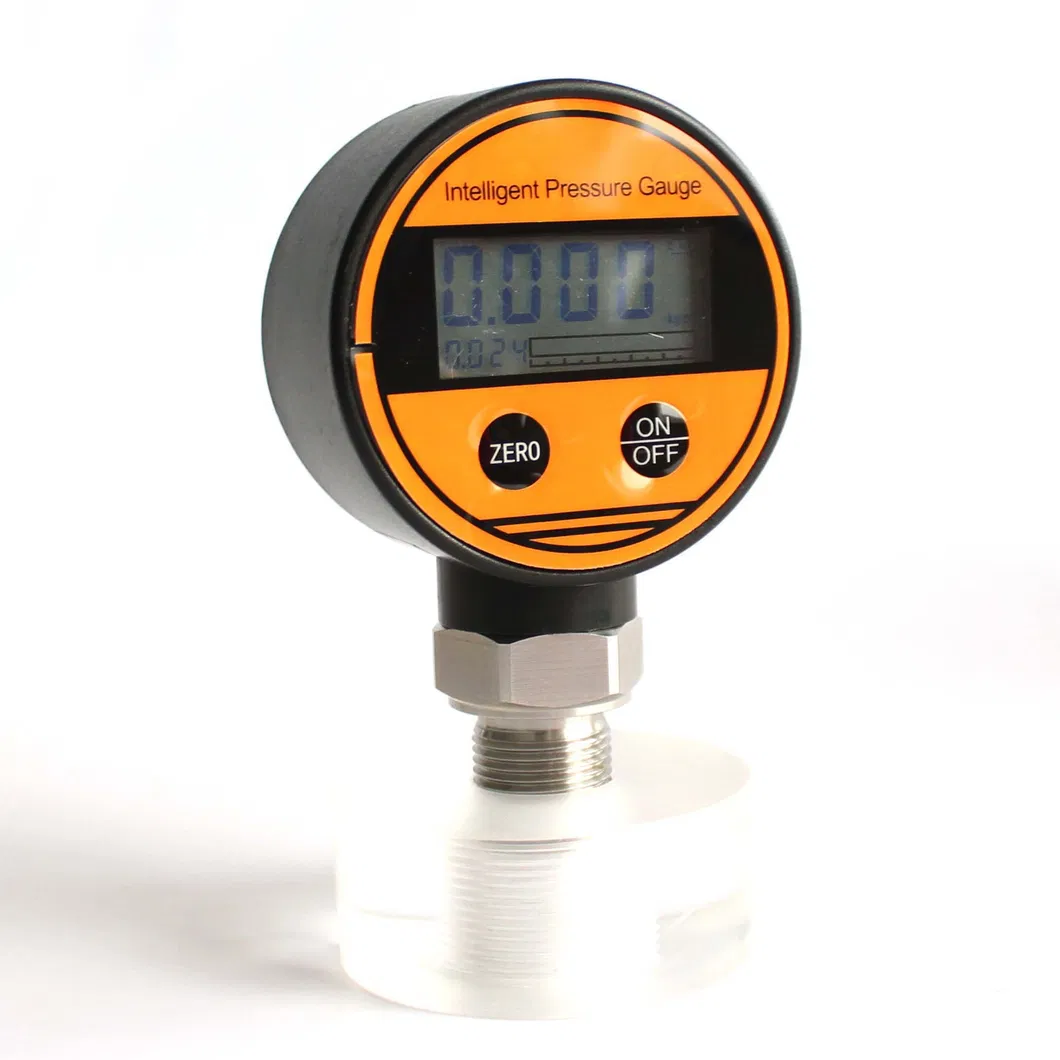

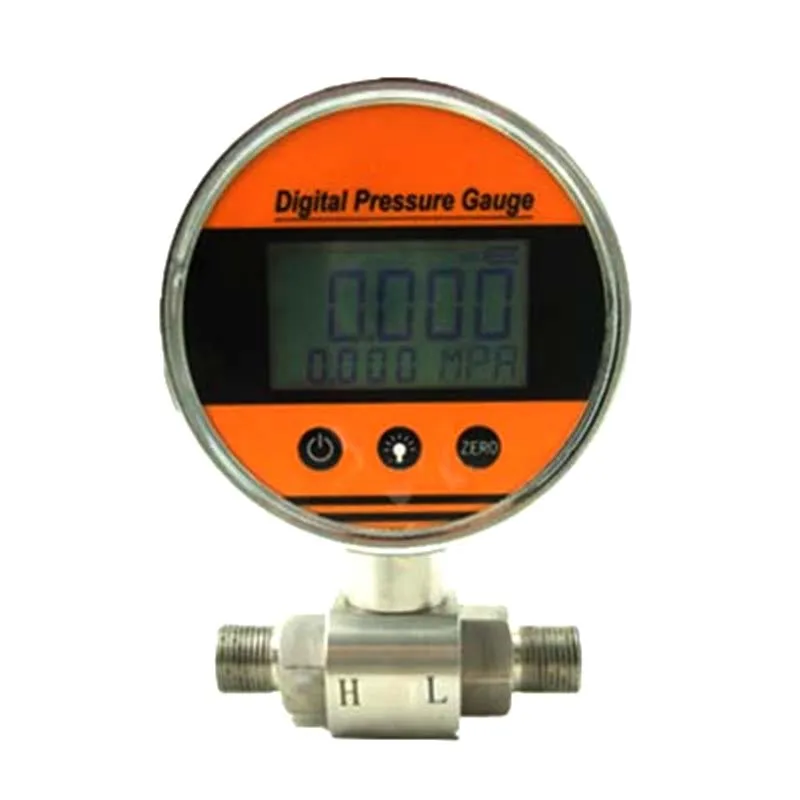

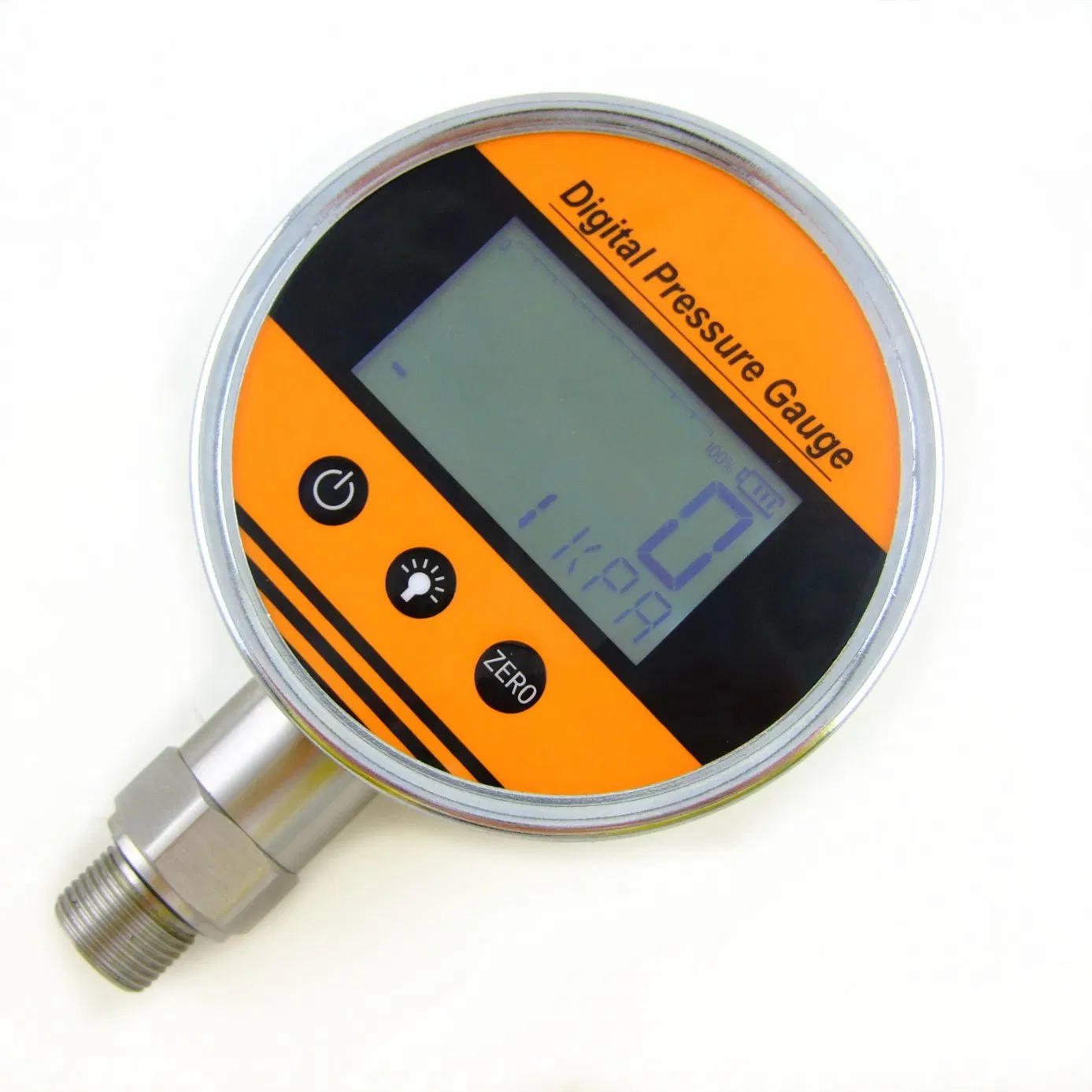

Digital pressure gauge is full electronic-structure and battery-powered, which make it very easy for on-site installation. Specifically, a high-precision piezo-resistive pressure sensor is used and the output signal is processed by the high-precision, low temperature drifting amplifier, then sent into the high-precision A/D converter to be converted into digital signal, after being computed and processed, the actual pressure value is showed on the LCD screen.
It has benefits: flexible use, simple operation, easy debugging, safe, reliable etc. It is being widely used to measure and display the pressure of the medium in hydro-power, water, petroleum, chemical, mechanical, hydraulic and other industries.
Features
1.Double screen display with high resolution
2.Main screen 5 digital display
3.Second screen can display max./min./peak value and environment temperature
4.Image display of pressure percentage and battery power
5.Pressure overload warn, prevent damage
6.White back light for night
7.10 international pressure units
8.Optional data acquisition rate 30-100 times/s
9.Automatic power-off function to save the battery life
Parameter
FAQ
1. How long will you reply me?
Normally in 1 hours, no more than 12 hours.
2. How can I get the quotation?
Please provide specification and application including sensing element, pressure range, thread connection, pressure type, medium, electronic connection, shell material etc. More details, more accurate quotation and earlier response.
3. Can I get sample?
Contact with our staff online directly and they would check stock for you.
4. Can I visit your factory?
You are warmly welcomed, our factory is located at Baoji city, Shaanxi province, China.
5. Can we use our logo on the products?
Yes, we provide OEM/ODM service.
6. How long is your warranty period?
Warranty period from the date of acceptance of 12 months.
7. What is your terms of payment?
We could accept T/T, L/C, Western union, PayPal, credit Assurance.
Digital pressure gauge is full electronic-structure and battery-powered, which make it very easy for on-site installation. Specifically, a high-precision piezo-resistive pressure sensor is used and the output signal is processed by the high-precision, low temperature drifting amplifier, then sent into the high-precision A/D converter to be converted into digital signal, after being computed and processed, the actual pressure value is showed on the LCD screen.
It has benefits: flexible use, simple operation, easy debugging, safe, reliable etc. It is being widely used to measure and display the pressure of the medium in hydro-power, water, petroleum, chemical, mechanical, hydraulic and other industries.
Features
1.Double screen display with high resolution
2.Main screen 5 digital display
3.Second screen can display max./min./peak value and environment temperature
4.Image display of pressure percentage and battery power
5.Pressure overload warn, prevent damage
6.White back light for night
7.10 international pressure units
8.Optional data acquisition rate 30-100 times/s
9.Automatic power-off function to save the battery life
Parameter

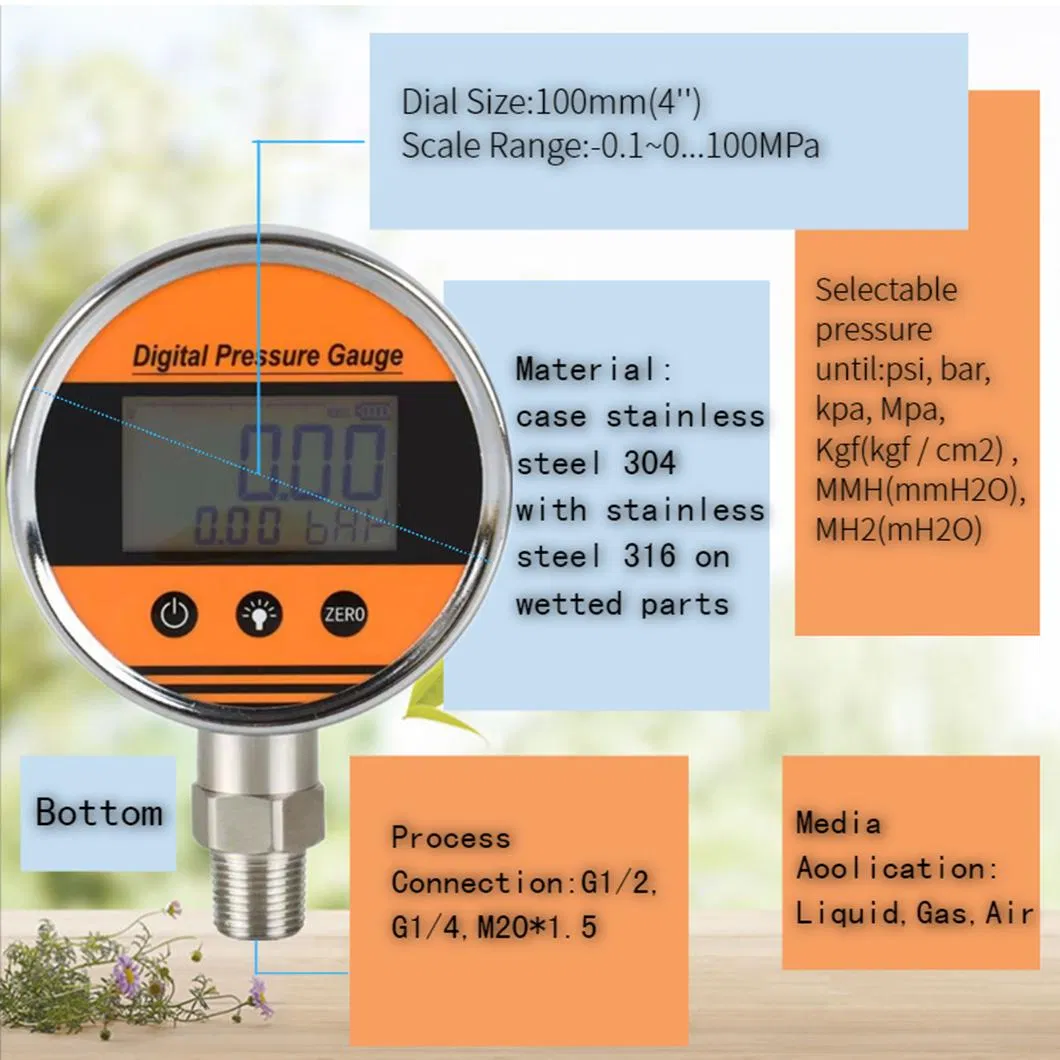

SPECIFICATIONS FOR QDB108 PRESSURE GAUGE | |||
PRESSURE RANGE | -0.1~0...100MPa | ||
ACCURACY | 0.2%F.S/0.5%F.S | ||
STABILITY | ≤0.1%/year | ||
POWER SUPPLY | 3.6VDC | ||
WORK TEMPERATURE | -20°C~70°C | ||
OVERLOAD CAPACITY | 150%F.S | ||
RELATIVE HUMIDITY | 0~90% | ||
PROTECTION LEVEL/IP RATING | IP65 | ||
MEDIA | Gas/Liquid/Oil /Diving/oxygen | ||
Sensor | Diffused sillcon | ||
FAQ
1. How long will you reply me?
Normally in 1 hours, no more than 12 hours.
2. How can I get the quotation?
Please provide specification and application including sensing element, pressure range, thread connection, pressure type, medium, electronic connection, shell material etc. More details, more accurate quotation and earlier response.
3. Can I get sample?
Contact with our staff online directly and they would check stock for you.
4. Can I visit your factory?
You are warmly welcomed, our factory is located at Baoji city, Shaanxi province, China.
5. Can we use our logo on the products?
Yes, we provide OEM/ODM service.
6. How long is your warranty period?
Warranty period from the date of acceptance of 12 months.
7. What is your terms of payment?
We could accept T/T, L/C, Western union, PayPal, credit Assurance.
