Magnetic Base Upright LCD Digital Protractor (SKV810-203)

Digital Protractor(SKV810-203): Always Upright LCD reading

A revolutionary inclinometer provides an immediate digital indication of all the angles. It features the large and clear LCD with results always in upright position at any given angle. Advanced sensor and microprocessor circuit provides unsurpassed accuracy when measuring angles within +/-180°(0 to 360°) range in wide variety of applications and can simply be placed on a reference surface zero to give a result of measured angle within 0.1° accuracy. The built-in strong magnets on the bottom can firmly attach the meter to the surface you are going to measure for easy and fast setting of bevel angel. Works great with miter and table saws.

Applications:
1. Plarform monitoring
2. Drainage angles and run-off slopes
3. Grader and tractor work alignment
4. Setting blade angle of Circular Saws
5. Tool setting on Lathes
6. Setting work piece angle for milling
7. Setting blade angle of Miter Saws
8. Check drill press table setting,table saw, jointer table, band saw, jointer fence or band saw table

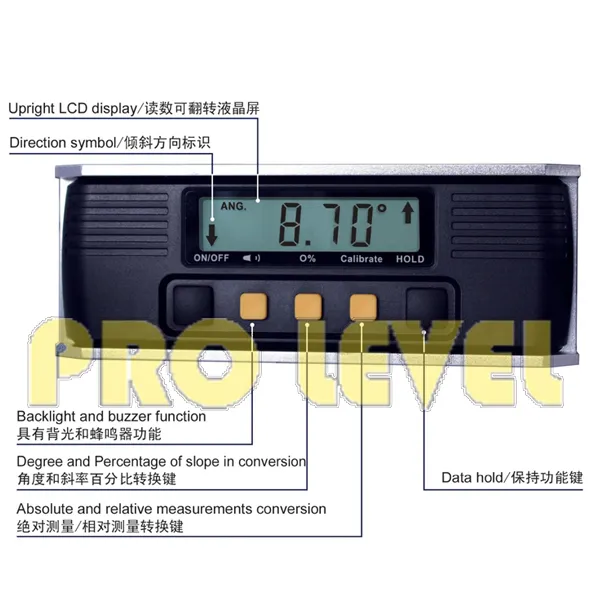

Features:
* Direction symbol
* Upright LCD display
* Backlight and buzzer function
* Data hold
* Degree and percentage of slope in conversion
* Absolute and relative measurements conversion

Specifications:
* Measuring Range: 4x90°
* Resolution: 0.1°/0.01%
* Repeatability: +/-0.1°
* Operating Temperature: 0~40°C
* Operating Humidity: 40~80%
* Power Supply: 3x3V CR2032 batteries
* Size: 150*57*33mm(6"x2"x1")

Pictures:
